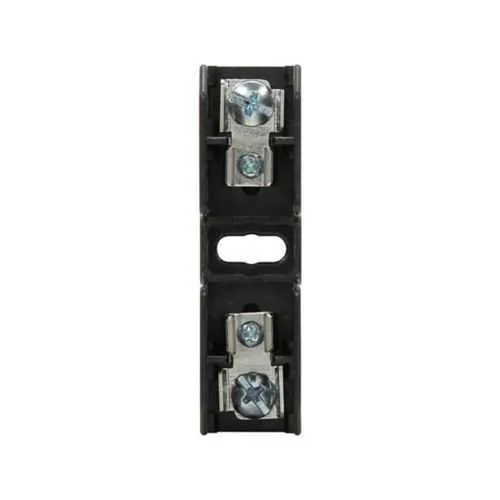

Eaton BG3031S Open Fuse Block - Class G, 25-30A, 480V
Part Number: BG3031S
Quick Summary
The Eaton BG3031S open fuse block is a compact single-pole protection device designed for 480 V circuits in panelboards and switchgear. Engineers often face downtime and wiring errors during fuse replacement, but this block's screw terminals and clear labeling help streamline maintenance and reduce field mistakes. It carries UL Recognized, CSA Certified, and RoHS Compliant markings, aligning with safety and environmental compliance requirements. Leveraging SC fuse compatibility and Class G protection, the BG3031S integrates with existing Bussmann components while delivering reliable performance for small- to mid-size electrical assemblies. This combination supports faster installation, predictable performance, and cost-effective protection across a broad range of industrial applications. It's designed for easy retrofits in existing panels.
Product Information
Extended Description
BG3031S Eaton: Eaton Bussmann series BG open fuse block, 25-30 A, Single-pole, Class G, Screw, 100 kAIC, Thermoplastic, 480 V, For use with SC fuse, #14-10 AWG Cu
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3031S
UPC
051712736688
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.05 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
25-30A
Interrupt rating
100 kAIC
Short-circuit rating
100 kA
Voltage rating
480 V
Material
Thermoplastic
Number of Poles
Single-pole
Wire size
#14-10 AWG Cu
Class
Class G
Connection
Screw
Used with
For use with SC fuse
Feature: Amperage rating of 25-30A with a 100 kAIC interrupt rating and a 480 V rating. Business Impact: Delivers robust protection for high-energy loads while minimizing arc flash risk and nuisance tripping. Application: Suitable for panelboards and control cabinets in machine automation where reliable short-circuit response is critical. Feature: Single-pole configuration with screw terminals for #14-10 AWG copper conductors. Business Impact: Enables straightforward, secure wiring with reduced installation time and fewer connection failures. Application: Ideal for field upgrades and retrofit projects in process facilities. Feature: Thermoplastic housing with Class G rating. Business Impact: Provides durable, fire-resistant enclosure suitable for harsh industrial environments, lowering maintenance costs. Application: Used in rugged control panels and switchgear assemblies. Feature: RoHS compliance plus UL Recognized and CSA Certified. Business Impact: Ensures regulatory compliance and market acceptance across global regions, simplifying procurement for regulated operations. Application: Fits automotive, food & beverage, and general manufacturing environments requiring certification tracing. Feature: Designed for use with SC fuses. Business Impact: Reduces parts diversity and stock-keeping costs while preserving protection integrity. Application: Fits standard Eaton Bussmann SC fuse workflows in industrial automation systems.
Get a Quick Quote for a Eaton BG3031S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3031S?
Enquire Now
FAQs
Install the BG3031S by mounting it in the panel, securing it with appropriate hardware, and wiring the #14-10 AWG copper conductors to the screw terminals. Ensure the panel is de-energized during installation, verify 480 V compatibility, and follow standard naming and labeling practices to prevent mis-wires and hot surfaces.
The BG3031S is designed for use with SC fuses. Wire with #14-10 AWG copper, and ensure the fuse type matches the Class G protection rating. This compatibility streamlines spare parts management and supports consistent protection across Eaton Bussmann components.
Key ratings include 25-30A amperage, 100 kAIC interrupt rating, 100 kA short-circuit rating, and a 480 V voltage rating. Certifications include UL Recognized and CSA Certified, with RoHS compliance to meet environmental requirements.
Yes. The BG3031S is a single-pole, Class G open fuse block rated for 480 V, designed for use with SC fuses in industrial panels, switchgear, and control cabinets. Its thermoplastic housing provides durability in harsh environments, while its screw terminals facilitate reliable field wiring.
Maintenance is typically low due to robust insulation, secure screw connections, and high interrupt ratings that minimize fault-related downtime. The standardized SC fuse compatibility reduces spare parts inventory, leading to lower total cost of ownership and improved uptime in production environments.
