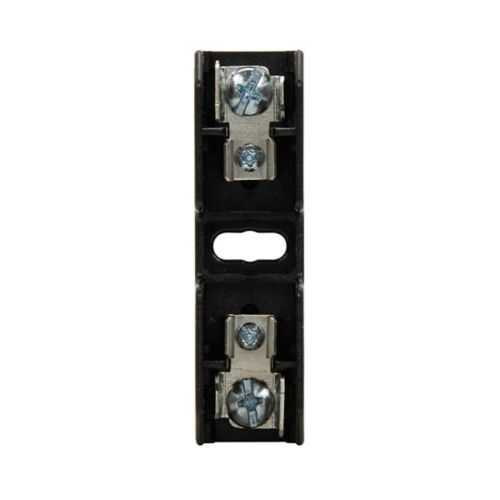

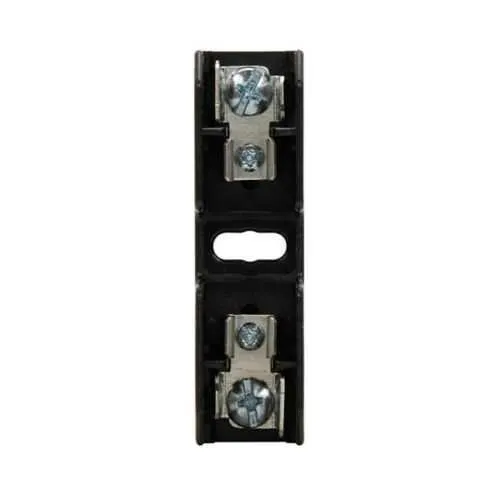

Eaton BG3031SQ Open Fuse Block - 100 kAIC Class G
Part Number: BG3031SQ
Quick Summary
BG3031SQ open fuse block from Eaton provides reliable overcurrent protection for industrial electrical panels and branch circuits. In tight control enclosures, installers often face crowded spaces and inconsistent termination, which can lead to downtime or faulted connections. UL Recognized, CSA Certified, and RoHS Compliant, this device meets stringent safety and regulatory requirements while reducing lifecycle risk. With a Class G protection profile, a 25-30 A rating, and a 480 V operating voltage, it delivers robust performance in demanding environments. The design emphasizes straightforward screw connections and compatibility with #14-10 AWG copper conductors, supporting faster installation and easier maintenance. This translates to lower maintenance costs and improved system uptime across manufacturing and process facilities.
Product Information
Extended Description
BG3031SQ Eaton: Eaton Bussmann series BG open fuse block, 25-30 A, Class G, Screw, 100 kAIC, Thermoplastic, 480 V, #14-10 AWG Cu
Product Name
Eaton Bussmann series BG open fuse block
Catalog Number
BG3031SQ
UPC
051712615198
Product Length/Depth
3 in
Product Height
0.5 in
Product Width
2 in
Product Weight
0.071 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
25-30A
Interrupt rating
100 kAIC
Short-circuit rating
100 kA
Voltage rating
480 V
Material
Thermoplastic
Wire size
#14-10 AWG Cu
Class
Class G
Connection
Screw
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BG3031SQ
Feature → Business Impact → Application: The BG3031SQ supports a 25-30 A, 480 V rating with a Class G fuse block design, enabling safe protection for mid-range circuits while keeping panel density manageable. This translates to reduced fault risk in motor control circuits and easier integration into existing control cabinets, particularly in packaging, material handling, and process lines. Application: Ideal for machine and line protection where standard 480 V feeders require reliable 25-30 A protection with a compact footprint. Feature → Business Impact → Application: Screw termination with #14-10 AWG Cu wires provides secure, vibration-resistant connections that minimize loose-terminal failures in harsh environments. Benefit: Improves uptime and simplifies field servicing during routine maintenance or upgrades. Application: Suitable for retrofit projects or new builds in 480 V control panels, C-level automation cabinets, and regional distribution panels. Feature → Business Impact → Application: Thermoplastic housing and RoHS compliance deliver chemical resistance and regulatory assurance in industrial spaces with solvents or cleaning processes. Benefit: Lowers compliance risk and reduces total cost of ownership. Application: Industrial warehouses, food & beverage processing lines, and packaging lines where RoHS compliance and environmental resilience are required. Feature → Business Impact → Application: 100 kAIC interrupt rating and 100 kA short-circuit rating provide strong protection against high-energy faults. Benefit: Minimizes damage to downstream components and reduces outage duration. Application: Main or feeder protection in MCCs and switchgear assemblies where high fault currents may occur. Feature → Business Impact → Application: UL Recognized and CSA Certified status simplify procurement, QA audits, and regulatory acceptance. Benefit: Accelerates project approvals and supports supplier qualification programs. Application: Global manufacturing sites and multi-national facilities requiring consistent compliance labeling.
Get a Quick Quote for a Eaton BG3031SQ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BG3031SQ?
Enquire Now
FAQs
To install the BG3031SQ, power must be disconnected and the device mounted securely in the panel enclosure. Use the screw terminals to attach #14-10 AWG copper conductors, ensuring tight, vibration-resistant connections. Confirm compatibility with your 480 V system and verify the 25-30 A rating matches the protected circuit. After wiring, re-energize and test the circuit for proper operation.
BG3031SQ is rated for 25-30 A, at 480 V, with an interrupt rating of 100 kAIC and a short-circuit rating of 100 kA. The device uses a Class G fuse block configuration and supports #14-10 AWG Cu conductors, providing reliable protection for mid-range industrial circuits.
Yes. With a 480 V rating and Class G protection, the BG3031SQ is appropriate for motor control applications and other high-current loads in industrial environments. Its compact form factor and screw-terminal design facilitate straightforward integration into motor control cabinets and panel boards.
BG3031SQ carries UL Recognized and CSA Certified markings and is RoHS compliant, ensuring safety, regulatory alignment, and environmental compliance for global installations and audits.
The open fuse block’s rugged thermoplastic housing and secure screw connections reduce loose-terminal failures and maintenance time. Its compact footprint supports higher panel density, which lowers upfront enclosure costs, and its reliability minimizes unplanned downtime, delivering a favorable return on investment over the equipment lifecycle.
