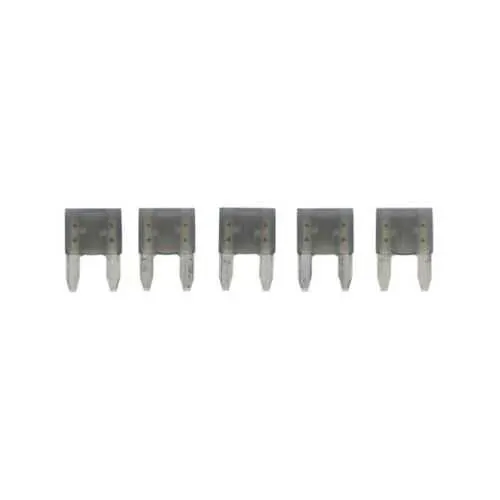

Eaton BK/ATM-2 ATM Blade Fuse for DC circuits 1 kAIC
Part Number: BK/ATM-2
Quick Summary
Eaton BK/ATM-2 ATM blade fuse protects DC circuits in industrial control panels and equipment. Its compact form factor and gray color code simplify layout reviews and fast replacements, addressing space constraints and labeling clarity in tight cabinets. RoHS compliance is documented, with other regulatory certifications not published by the manufacturer. This combination of protection and packaging enables reliable DC circuit protection with a small footprint, supporting streamlined procurement and reduced downtime in modern automation environments.
Product Information
Extended Description
BK/ATM-2 Eaton: Eaton Bussmann series ATM blade fuse, Color code gray, 32 Vdc, 2A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing
Product Name
Eaton Bussmann series ATM blade fuse
Catalog Number
BK/ATM-2
UPC
051712123068
EAN
5027590452762
Product Length/Depth
1.39 in
Product Height
1.61 in
Product Width
0.27 in
Product Weight
0.1 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
2 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Colored plastic housing
Packaging type
Standard
Fuse indicator
Non-indicating
Quantity
500
Quantity
500
Special features
Color code gray
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BK/ATM-2
Feature → Business Impact → Application: The BK/ATM-2 uses a blade end design with a colored plastic housing and a non-indicating fuse indicator. Benefit: Easy installation and quick visual verification in dense panel layouts, reducing maintenance time during fault diagnosis. Application: Control cabinets and power distribution blocks in industrial automation setups. Feature → Business Impact → Application: Rated 2 A at 32 Vdc with a 1 kAIC interrupt rating. Benefit: Provides dependable short-circuit protection for low-voltage DC circuits, improving equipment reliability and protecting fuses from nuisance tripping. Application: DC rails in motor drives and PLC power supplies. Feature → Business Impact → Application: 1.39 in length, 1.61 in height, 0.27 in width with a 0.1 lb weight. Benefit: Small footprint fits narrow harnesses and compact fuse blocks, enabling denser panel design and easier stocking. Application: Automotive and industrial control panels where space is at a premium. Feature → Business Impact → Application: RoHS compliant and gray color code for easy identification. Benefit: Compliance with environmental standards and reduced mis-powering events thanks to quick part recognition. Application: RoHS-constrained manufacturing lines and high-mix automation environments. Feature → Business Impact → Application: 500-count packaging. Benefit: Reduces replenishment frequency and lowers total cost of ownership for high-volume deployments. Application: Large-scale installations and repair shops needing consistent supply.
Get a Quick Quote for a Eaton BK/ATM-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/ATM-2?
Enquire Now
FAQs
Yes. BK/ATM-2 uses a blade-end design compatible with standard ATM blade fuse holders common in industrial control panels. Its 1.39 in length and 0.27 in width integrate into compact harnesses, and the non-indicating style keeps panel fronts uncluttered. Always verify holder compatibility with the exact Bussmann ATM series version in your assembly drawings.
BK/ATM-2 is rated for 2 A at 32 Vdc with an interrupt rating of 1 kAIC. It features a gray color code and non-indicating status. The fuse is RoHS compliant and designed for blade-end installations, providing reliable DC protection for short-circuit events while minimizing nuisance trips in typical automation circuits.
Yes, it is suitable for DC protection in industrial control panels, power rails, and DC motor drive circuits. With a 32 Vdc rating and 1 kAIC interrupt capability, it protects low-voltage DC circuits in automation equipment. It’s ideal for dense panel environments where space savings and quick identification via the gray color code matter most.
The product is RoHS compliant, as listed in the general compliance data. Other certifications such as CE or IP ratings are not specified by the manufacturer in the provided data; for mission-critical regulatory requirements, contact Eaton to confirm current certifications for your region and application.
The fuse’s compact footprint and standard 500-count packaging reduce panel crowding and simplify stocking, which lowers downtime during replacements. The combination of reliable 1 kAIC protection and straightforward blade-end installation translates into faster repairs, improved equipment uptime, and lower maintenance costs in high-volume deployments.
