Eaton BK/ATM-5 ATM blade fuse for DC protection - 1kAIC
Part Number: BK/ATM-5
Quick Summary
Eaton BK/ATM-5 ATM blade fuse protects DC circuits in industrial control and motor drives. Engineers often struggle to find fuses that fit compact panels while still delivering reliable interruption under fault conditions. This device is RoHS compliant and rated for 32 Vdc with a 5 A capacity and a 1 kAIC interrupt rating, ensuring safe, compliant protection. With its tan color code and compact form, it enables quick identification and faster maintenance in automation systems, supporting efficient panel deployment and reduced downtime.
Product Information
Extended Description

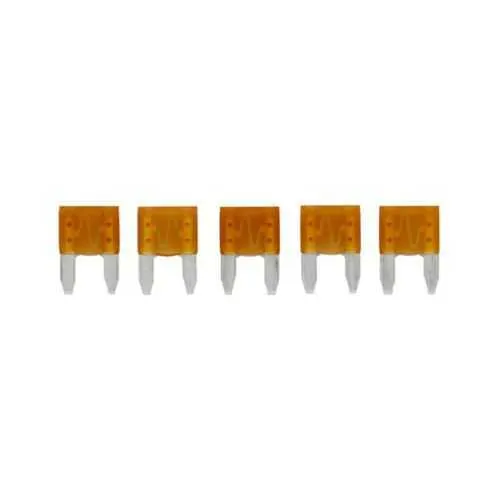

BK/ATM-5 Eaton: Eaton Bussmann series ATM blade fuse, Color code tan, 32 Vdc, 5A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing
Product Name
Eaton Bussmann series ATM blade fuse
Catalog Number
BK/ATM-5
UPC
051712123129
Product Length/Depth
1.38 in
Product Height
1.6 in
Product Width
0.44 in
Product Weight
0.3 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
5 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Colored plastic housing
Packaging type
Standard
Fuse indicator
Non-indicating
Quantity
500
Quantity
500
Special features
Color code tan
Feature: 32 Vdc, 5 A amperage rating. Business Impact: Delivers precise DC protection for critical control circuits, reducing nuisance trips and protecting drivers and controllers. Application: Ideal for PLC cabinets, DC power rails, and motor-control panels in automation environments. Feature: 1 kAIC interrupt rating. Business Impact: Enables reliable interruption during short-circuit events, safeguarding downstream devices and extending component life. Application: Essential in high-current DC buses common in drives and robotics lines. Feature: Compact blade fuse form factor (1.38 in L, 0.44 in W, 1.6 in H). Business Impact: Supports dense panel layouts and easier retrofits without sacrificing protection. Application: Suits enclosure-mounted fuse holders in compact automation cabinets. Feature: Tan color code housing. Business Impact: Quick visual identification reduces maintenance time and error during replacements. Application: Beneficial in large assemblies with many fuses. Feature: Non-indicating fuse indicator. Business Impact: Simplifies panel aesthetics while enabling status monitoring via external diagnostics. Application: Works with centralized monitoring systems or remote fault analytics. Feature: RoHS compliant and standard packaging of 500 units. Business Impact: Supports compliant manufacturing and cost-effective stocking for service operations. Application: Industrial deployment, mass deployments, and distributor inventories.
Get a Quick Quote for a Eaton BK/ATM-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/ATM-5?
Enquire Now
FAQs
BK/ATM-5 uses a standard ATM blade fuse format designed for common blade-fuse holders in industrial control panels. It fits compact enclosures where DC protection is required and pairs with compatible fuse clips and holders used in PLC racks, motor-control centers, and automation cabinets.
BK/ATM-5 provides a 5 A amperage rating, a 32 Vdc voltage rating, and a 1 kAIC interrupt rating. These ratings support reliable protection for DC circuits in automation equipment while enabling predictable fault clearance.
Yes. While rated at 32 Vdc, the BK/ATM-5 is suitable for many 24 VDC control circuits commonly used in industrial automation, provided the load current does not exceed 5 A and the wiring and enclosures meet safety standards.
BK/ATM-5 is RoHS compliant per the manufacturer’s specification. For additional certifications or approvals beyond RoHS, consult Eaton’s datasheets or contact the factory for the latest qualification statements.
Its 500-unit packaging supports high-volume stocking, reducing procurement delays. The tan color coding and compact form enable rapid identification and faster replacements, lowering maintenance time and downtime in automated lines while providing robust DC protection with a proven 1 kAIC interrupt rating.
