Eaton BK/CB123-20HB Automotive Circuit Breaker - RoHS Compliant
Part Number: BK/CB123-20HB
Quick Summary
BK/CB123-20HB automotive circuit breaker from Eaton delivers reliable overcurrent protection for vehicle electrical systems. Engineers often confront space constraints and mounting compatibility challenges; this unit's compact 0.55 in depth and 10-32 TPI stud simplify wiring and serviceability. RoHS compliant with factory guidance, it is built for heavy-duty use under vibration and temperature extremes typical of automotive environments. With bracket and cover compatibility and quick-connect options, BK/CB123-20HB helps streamline harness layouts and reduce installation time, delivering lower total cost of ownership.
Product Information
Extended Description

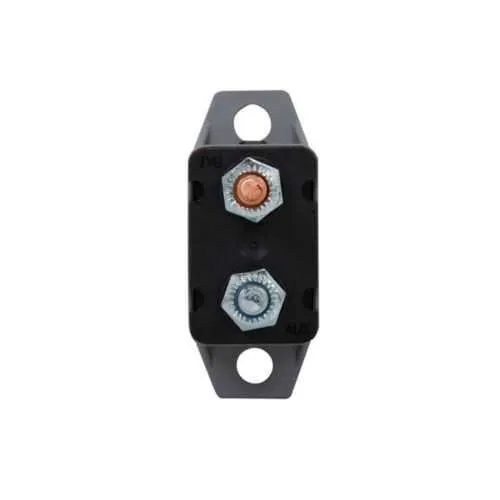

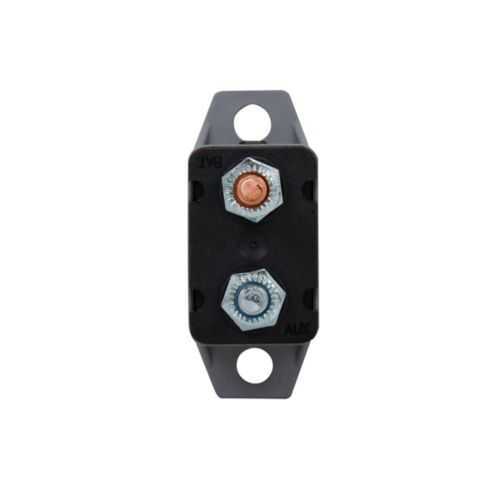

BK/CB123-20HB Eaton: Eaton Bussmann series C.B.123-HB automotive circuit breaker, 20A, Heavy duty, Type III, 10-32 TPI stud
Product Name
Eaton Bussmann series CB123-HB automotive circuit breaker
Catalog Number
BK/CB123-20HB
UPC
051712614429
Product Length/Depth
0.55 in
Product Height
2.1 in
Product Width
1.7 in
Product Weight
0.44 lb
Compliances
RoHS Compliant Contact factory
Amperage Rating
20 A
Connection
#10-32 TPI stud
Quantity
6
Used with
lengthwise bracket and cover, quick-connect
Bussmann series 4-foot automotive planogram no.10730
BK/CB123-20HB~BK-CB123-20HB~CIRCUIT BREAKER
BK/CB123-20HB~BK-CB123-20HB~CIRCUIT BREAKER
Bussmann series Fuseology
Eaton Specification Sheet - BK/CB123-20HB
Feature: 20 A amperage rating. Business impact: Provides reliable overload protection, reducing the risk of downstream component damage and unplanned downtime in vehicle electrical systems. Application: Use in automotive main and branch circuits to safeguard sensors, actuators, and controllers within Bussmann series installations.Feature: Heavy-duty Type III construction. Business impact: Delivers rugged performance in high-vibration environments and temperature extremes, improving system reliability and service intervals. Application: Suitable for harsh automotive applications such as engine compartments and off-road equipment where durable protection matters.Feature: 10-32 TPI stud connections. Business impact: Ensures secure, low-resistance terminations and straightforward field wiring with consistent torque. Application: Ideal for integration with power distribution blocks and high-current harnesses in compact layouts.Feature: RoHS compliant. Business impact: Enables regulatory compliance and simpler supplier qualifications for OEM assemblies. Application: Fits green manufacturing programs and fleet installations requiring environmental responsibility.Feature: Compact dimensions (0.55 in depth Ă— 2.1 in height Ă— 1.7 in width). Business impact: Saves panel space and supports dense wiring patterns, reducing enclosure size and assembly time. Application: Enables efficient installation in limited-space automotive panels and instrument clusters.Feature: Bracket/cover compatibility and quick-connect readiness. Business impact: Accelerates mounting and reduces wiring complexity, cutting install time and field labor costs. Application: Streamlines incorporation into lengthwise bracket systems and quick-connect harnesses for rapid field service.
