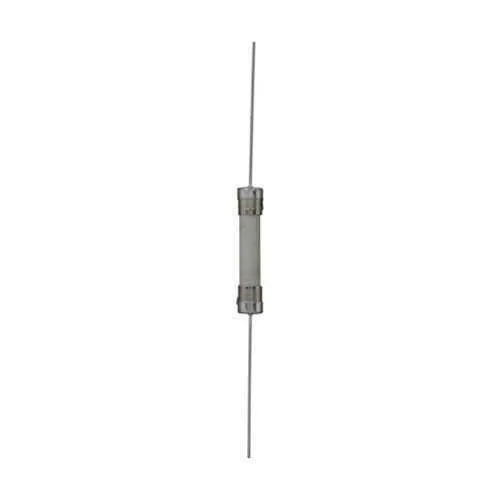

Eaton BK/GBH-V015A6F High Speed Fuse - 5 kAIC
Part Number: BK/GBH-V015A6F
Quick Summary
Eaton Bussmann GBH-V high speed fuse provides fast overcurrent protection for 500 V circuits in control panels and distribution systems. Engineers often struggle to balance rapid fault clearing with minimized nuisance trips and compatibility with standard fuse holders. This variant is UL Recognized and CE marked, featuring non-indicating operation and a rugged cartridge brass body designed for harsh industrial environments. With a 15 A rating and bright nickel-plated caps, it delivers dependable protection while helping reduce maintenance costs and unexpected downtime in electrical protection and circuit control applications. It’s well-suited for industrial automation and panel assemblies, delivering reliable safety and efficiency across challenging environments.
Product Information
Extended Description
BK/GBH-V015A6F Eaton: Eaton Bussmann series GBH-V high speed fuse, 500V, 15A, 5 kAIC, Non Indicating, High speed fuse, 5 kA, Bright nickel-plated, caps- cartridge brass
Product Name
Eaton Bussmann series GBH-V high speed fuse
Catalog Number
BK/GBH-V015A6F
UPC
051712612951
Product Length/Depth
1.57 in
Product Height
1.37 in
Product Width
0.32 in
Product Weight
0.008 lb
Warranty
Not Applicable
Compliances
CE Marked
Certifications
UL Recognized
Amperage Rating
15 A
Interrupt rating
5 kAIC
Short-circuit rating
5 kA
Voltage rating
500 V
Watt losses
4.48 W
Material
Cartridge brass Bright nickel-plated
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
3000
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - BK/GBH-V015A6F
The 500 V rating and 15 A amperage deliver fast fault clearing (5 kAIC) for high-energy fault events, which reduces arc exposure and protects downstream equipment in control panels and power distribution blocks. This translates to lower downtime and fewer costly repairs during electrical faults. The non-indicating design minimizes maintenance checks and simplifies wiring in dense panels, while the rugged cartridge brass body with bright nickel plating resists corrosion and wear in harsh environments. Compatibility with standard fuse holders and a compact form factor cut installation time and minimize replaceable parts in modern machinery. Low watt losses, at 4.48 W, contribute to energy efficiency in continuous operation and reduce heat load inside cabinets. Overall, the GBH-V0 series informs safer, compliant protection for industrial automation projects with predictable lifecycle costs.
Get a Quick Quote for a Eaton BK/GBH-V015A6F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/GBH-V015A6F?
Enquire Now
FAQs
BK/GBH-V015A6F uses a standard cartridge fuse form factor that fits common Bussmann and Eaton fuse holders. With a length of 1.57 in, width 0.32 in, and height 1.37 in, it drops into cabinet logic modules and distribution blocks quickly, minimizing installation time and potential misalignment during panel wiring.
Key electrical ratings are 15 A current rating, 500 V voltage rating, and 5 kAIC interrupt rating with a 5 kA short-circuit rating. The non-indicating design means status is inferred from circuit behavior rather than a visible flag, and the UL Recognized mark plus CE compliance ensures global suitability for electrical protection and circuit control applications.
The GBH-V015A6F is specified for 500 V systems and 15 A loads, making it suitable for 480 V nominal industrial equipment and control panels. For motor drives and power distribution, its high-speed response minimizes fault energy, protecting downstream components and reducing repair costs, while remaining compatible with standard fuse blocks commonly used in industrial automation.
This fuse is UL Recognized and CE Marked, with documented compliance to applicable European and North American safety standards. These certifications support regulatory acceptance in global panel builds and automation projects, enabling faster approvals and reducing risk during field installations.
The GBH-V015A6F delivers faster fault clearing and robust construction, reducing damage and downtime during faults. Low watt losses help maintain energy efficiency, while durable materials resist wear in harsh environments. Together, these factors contribute to lower replacement frequency, shorter maintenance windows, and a favorable total cost of ownership in industrial installations.
