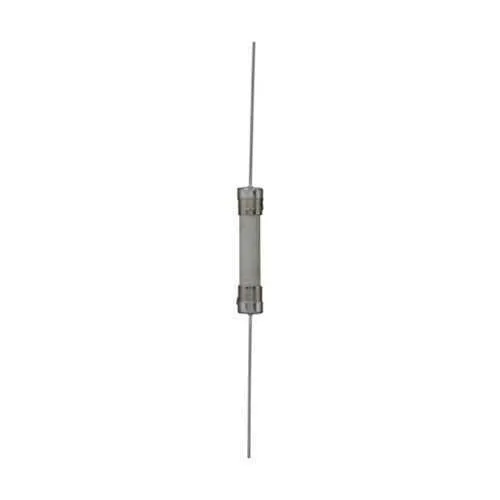

Eaton GBH-V high speed fuse BK/GBH-V025A6FR - UL Recognized
Part Number: BK/GBH-V025A6FR
Quick Summary
The Eaton GBH-V high speed fuse with BK/GBH-V025A6FR delivers fast circuit protection for industrial control panels and motor drives. Engineers struggle with nuisance trips and inconsistent protection coordination in high-demand automation lines. This fuse carries UL Recognized and CE Marked RoHS compliance, with a 500 V rating for safe, global use. Its bright nickel-plated cartridge brass and compact form support quick, reliable installations. By combining high-speed clearing with durable construction, it helps reduce downtime and maintenance costs while supporting compliance and safety in electrical protection applications for automation systems and machinery. For engineers evaluating replacement parts, its 5 kAIC interrupt rating and 5 kA fault current resilience translate into predictable protection and easier risk assessment.
Product Information
Extended Description
BK/GBH-V025A6FR Eaton: Eaton Bussmann series GBH-V high speed fuse, 500V, 25A, 5 kAIC, Non Indicating, High speed fuse, 5 kA, Bright nickel-plated, caps- cartridge brass - BK/GBH-V025A6FR
Product Name
Eaton Bussmann series GBH-V high speed fuse
Catalog Number
BK/GBH-V025A6FR
UPC
051712505895
Product Length/Depth
1.57 in
Product Height
1.37 in
Product Width
0.32 in
Product Weight
0.009 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Recognized
Amperage Rating
25 A
Interrupt rating
5 kAIC
Short-circuit rating
5 kA
Voltage rating
500 V
Material
Bright nickel-plated Cartridge brass
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
3000
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - BK/GBH-V025A6FR
500 V rating and 25 A amperage deliver proven compatibility with common industrial control interfaces, enabling safe operation across equipment, cabinets, and distributed control systems. This aligns with standard Bussmann fuse holders and cabinet protection schemes, reducing integration time and stock diversity. It also aligns with common mounting footprints to minimize panel redesign during retrofits. Interruption at 5 kAIC means faster fault clearance, lowering arc energy and protecting downstream circuits under all fault conditions. In mission-critical applications where uptime is tightly linked to production targets, this capability translates into measurable uptime gains and fewer unplanned outages. Non-indicating design lowers maintenance and eliminates failure-prone indicators on the field device, while still allowing straightforward replacement during scheduled maintenance in busy panels. The compact form factor simplifies installation in crowded control panels and retrofit projects. This design also supports easy field inspection during audits. Bright nickel-plated cartridge brass contacts offer corrosion resistance and reliable electrical connections in challenging environments, including damp or dusty facilities. The durable construction translates to prolonged service life, reduced contact resistance, and consistent performance over time. Ongoing reliability supports lower maintenance costs and fewer premature replacements. Standard packaging and a generous quantity of 3000 units per lot support bulk sourcing and efficient supply chain management, minimizing downtime for replacement campaigns in large facilities. Uniform cataloging with model BK/GBH-V025A6FR simplifies ordering for MRO teams and OEMs. This stock availability also improves forecast accuracy and reduces emergency procurement penalties. Certifications including UL Recognized and CE RoHS compliance reduce qualification time for integration into regulated systems, while the 500 V rating and 25 A capability provide regulatory confidence for global deployments. This stock availability also improves forecast accuracy and reduces emergency procurement penalties. These certifications simplify vendor qualification and export compliance.
Get a Quick Quote for a Eaton BK/GBH-V025A6FR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/GBH-V025A6FR?
Enquire Now
FAQs
BK/GBH-V025A6FR uses a standard 1.57 in length, 1.37 in height, and 0.32 in width cartridge format designed for Bussmann-compatible holders. It suits common control panel assemblies and replacement routines in industrial automation. When selecting holder hardware, ensure the mounting footprint and voltage/current ratings match your panel design to maintain regulatory compliance and protect downstream equipment.
Key specs include a 500 V voltage rating, 25 A current rating, and an interrupt rating of 5 kAIC with a 5 kA short-circuit rating. This combination supports fast fault clearing while protecting exposed conductors and loads in automation gear. The non-indicating design is balanced by reliable external monitoring strategies in critical applications.
Yes. Its high-speed response and 5 kAIC interrupt capability are well suited for motor drives and drive-controlled equipment where rapid fault clearance minimizes arc energy and equipment damage. It provides dependable protection in conveyors, presses, and automation panels while maintaining compatibility with common Bussmann/similar fuseholders.
This fuse is UL Recognized and CE Marked RoHS Compliant, ensuring regulatory acceptance in North America and Europe. The 500 V rating and 25 A capability support safe operation in regulated industrial environments, while the RoHS compliance helps reduce environmental impact and ease of supplier qualification.
The fuse provides fast protection with durable nickel-plated brass contacts, reducing downtime from shorts and unwanted trips. Its 3000-unit packaging supports bulk procurement, improving inventory management. Overall, the device contributes to longer mean time between failures (MTBF) and lower maintenance costs for OEMs and end users.
