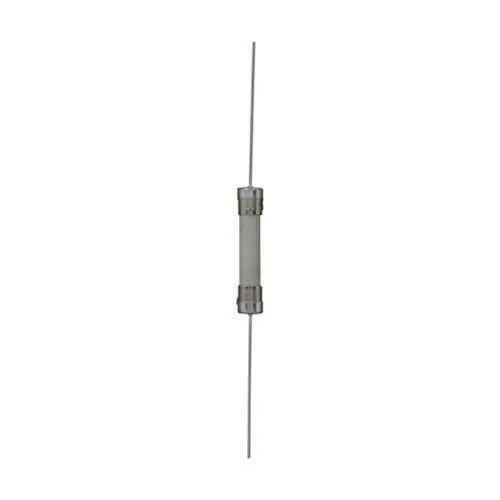

Eaton BK/GBHV12.5A6F High Speed Fuse - UL Recognized
Part Number: BK/GBHV12.5A6F
Quick Summary
Eaton GBH-V high speed fuse protects electrical circuits in industrial machinery by interrupting faults quickly. This helps minimize downtime and safeguard expensive drives and control panels from damaging surges. The device carries UL Recognized and CE markings, confirming compliance for global installations and traceable safety. With a 500 V rating and a 12.5 A nominal current, it is well suited for motor controls and power distribution in harsh industrial environments. By selecting a compact, non-indicating fuse, maintenance workflows can be streamlined when paired with monitoring strategies. The combination of compact dimensions and robust electrical ratings offers a reliable protection solution for Eaton Bussmann series deployments in panel builders and OEM projects.
Product Information
Extended Description
BK/GBHV12.5A6F Eaton: Eaton Bussmann series GBH-V high speed fuse, 500V, 12.50A, 5 kAIC, Non Indicating, High speed fuse, 5 kA, Bright nickel-plated, caps- cartridge brass
Product Name
Eaton Bussmann series GBH-V high speed fuse
Catalog Number
BK/GBHV12.5A6F
UPC
051712613002
Product Length/Depth
1.57 in
Product Height
1.37 in
Product Width
0.32 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
CE Marked
Certifications
UL Recognized
Amperage Rating
12.50A
Interrupt rating
5 kAIC
Short-circuit rating
5 kA
Voltage rating
500 V
Watt losses
3.53 W
Material
Bright nickel-plated Cartridge brass
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
3000
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - BK/GBHV12.5A6F
Feature: 500 V voltage rating. Business Impact: Enables safe operation across European and North American power systems without over-stressing circuits. Application: Ideal for 480–500 V control circuits in motor drives and power distribution panels. Feature: 12.50 A amperage rating. Business Impact: Aligns fuse protection with motor and drive load profiles to prevent nuisance blows while preserving equipment. Application: Suitable for medium-load industrial equipment and control cabinets. Feature: 5 kAIC interrupt rating. Business Impact: Provides strong fault current interruption, reducing arc flash risk and downstream damage. Application: Critical for panel builders and machine builders needing robust protection in fault conditions. Feature: 5 kA short-circuit rating. Business Impact: Limits conductor and component damage during short-circuit events, lowering repair costs. Application: Essential for high-energy industrial environments. Feature: Non Indicating design. Business Impact: Simplifies procurement and inventory management while enabling integration with remote condition monitoring systems. Application: Fits clean-room or sealed-control environments where indicators are monitored elsewhere. Feature: Bright nickel-plated cartridge brass construction. Business Impact: Enhances durability against corrosion and wear, extending service life in harsh environments. Application: Suitable for outdoor or dusty industrial installations. Feature: Compact dimensions (1.57 in L x 1.37 in H x 0.32 in W). Business Impact: Optimizes space in densely packed control panels and reduces enclosure size. Application: Ideal for retrofit projects and OEM panel design. Feature: UL Recognized and CE Marked. Business Impact: Ensures global compliance and simplifies regulatory approvals for multi-market deployments. Application: Beneficial for international machine builders and large end-user networks. Feature: 3000-unit quantity availability. Business Impact: Streamlines procurement and reduces downtime with reliable stocking. Application: Supports OEM production runs and large-scale installations.
Get a Quick Quote for a Eaton BK/GBHV12.5A6F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/GBHV12.5A6F?
Enquire Now
FAQs
Yes. The BK/GBHV12.5A6F is a cartridge-style fuse designed to fit standard Bussmann/GBH series holders used in industrial control panels. Its dimensions (1.57 in length, 1.37 in height, 0.32 in width) are compatible with common DIN/PCB-mounted and panel-mounted holders, making retrofits straightforward without special tooling.
The fuse is rated for 500 V and 12.50 A, with an interrupt rating of 5 kAIC and a short-circuit rating of 5 kA. These ratings indicate it can safely interrupt faults up to 5 kA at 500 V, protecting upstream equipment such as drives and relays in industrial power circuits.
This fuse is ideal for motor drives, control panels, and general power distribution in industrial environments. Its 500 V rating and 12.5 A capacity fit mid-range loads, while the 5 kAIC interrupt capability provides robust fault protection in panels and machines subject to surges or short circuits.
The fuse is UL Recognized and CE Marked, indicating compliance with U.S. safety standards and European product conformity requirements. These certifications help streamline cross-border approvals for OEMs and integrators deploying equipment in multiple markets.
The device is Non Indicating, so visual fault status isn’t available on the fuse itself. Plan for regular electrical system checks and leverage remote monitoring or panel indicators to track fuse status. Stocking up to 3000 units supports large projects and reduces downtime during spare-part replenishment.
