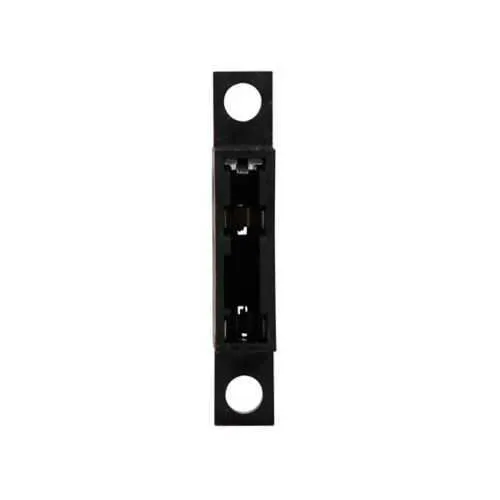

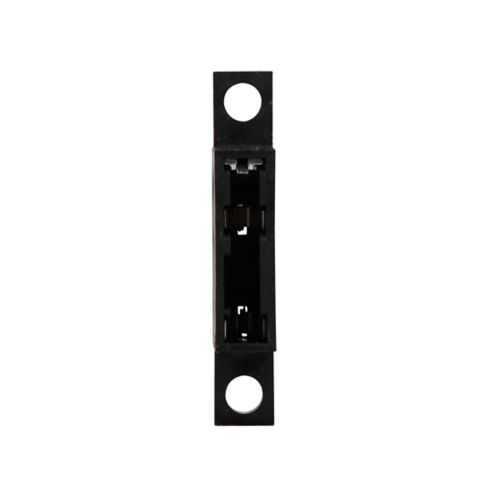

Eaton BK/HLS-C Fuse Holder for Electrical Protection RoHS
Part Number: BK/HLS-C
Quick Summary
BK/HLS-C fuse holder provides reliable overcurrent protection for panel-mounted circuits in industrial control panels. Design engineers face space constraints, terminal reliability issues, and the challenge of meeting RoHS and other regulatory requirements during installation. This product is RoHS compliant; for CE, SIL, or IP certifications, consult Eaton's documentation. With a panel-mount design and a thermoplastic body, it delivers durable, easy-to-wire protection that reduces maintenance time and increases system uptime. The tin-plated copper terminals ensure solid terminations even in busy control cabinets. A compact footprint helps standardize panel layouts, while the compatible GMT fuse family simplifies sourcing and BOM management across multiple machines.
Product Information
Extended Description
BK/HLS-C Eaton: Eaton Bussmann series HLS fuse holder, 125 Vac, 60 Vdc, 15A, Panel, Thermoplastic body, Tin-plated bifrucated copper terminal - BK/HLS-C
Product Name
Eaton Bussmann series HLS fuse holder
Catalog Number
BK/HLS-C
UPC
051712129398
EAN
5027590156783
Product Length/Depth
2.68 in
Product Height
1.21 in
Product Width
1.57 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
15 A
Voltage rating
125 Vac, 60 Vdc
Material
Thermoplastic body Tin-plated bifurcated copper terminal
Mounting method
Panel
BK/HLS-C~BK-HLS-C~FUSEHOLDER FOR GMT
BK/HLS-C~BK-HLS-C~FUSEHOLDER FOR GMT
Bussmann series Fuseology
Eaton Specification Sheet - BK/HLS-C
125 Vac and 60 Vdc ratings with a 15 A amperage rating enable the BK/HLS-C to protect mixed AC/DC loads in industrial panels, from motor starters to control logic supplies. This panel-mounted fuse holder integrates seamlessly into standard switchgear and control cabinets, delivering predictable protection without adding wiring complexity. Thermoplastic body and tin-plated bifurcated copper terminals deliver robust mechanical durability and corrosion resistance in busy environments. The design supports fast, secure terminations, reducing installation time and field retry rates during maintenance. Compact dimensions—2.68 in length, 1.21 in height, and 1.57 in width—enable space-efficient panel layouts, letting engineers standardize enclosures across machines. With a 0.8 lb weight, the unit stays manageable in dense control panels while maintaining reliable clamping force on wires. RoHS compliance simplifies regulatory adherence across global sites, while catalog references to GMT fuse types streamline sourcing and BOM management. Compatibility with GMT fuse types and the Eaton Bussmann catalog helps maintain a consistent protection strategy across an OEM's product line, reducing part variation and spare-parts costs. The 125 Vac / 60 Vdc rating also supports both AC and DC circuits in mixed environments, boosting design flexibility. From a maintenance perspective, the fuse holder's reliable terminations and straightforward panel mounting minimize field service time, translating to reduced downtime and higher equipment throughput.
Get a Quick Quote for a Eaton BK/HLS-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/HLS-C?
Enquire Now
FAQs
Yes. The BK/HLS-C is documented as a fuse holder compatible with GMT fuse types in Eaton's Bussmann catalogs. It uses a panel-mounted design with tin-plated copper terminations that simplify wiring and ensure reliable connections, reducing field rework during installation.
The unit is rated for 15 A and operates at 125 Vac or 60 Vdc. Its compact form factor (2.68 in length, 1.21 in height, 1.57 in width) and panel-mount mounting method support integration into space-constrained control panels without compromising protection performance.
Yes. With 125 Vac and 60 Vdc ratings and a robust thermoplastic body, the fuse holder is designed to protect both AC and DC circuits commonly found in manufacturing and packaging equipment, while delivering dependable terminations and long-term reliability.
The product is RoHS compliant. For additional certifications such as CE, SIL, or IP ratings, refer to Eaton's official documentation or contact the manufacturer for the latest certification status and test reports.
The fuse holder offers quick, secure wiring with tin-plated terminals and a compact panel footprint, reducing installation time and field rework. Its compatibility with GMT fuses helps standardize parts across multiple machines, lowering BOM fragmentation and spare-parts costs while improving overall equipment uptime.
