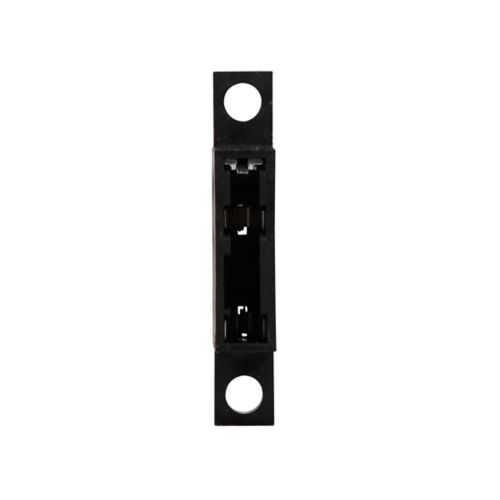

Eaton BK/HLS-F Fuse Holder - RoHS Compliant, 15A, 125Vac
Part Number: BK/HLS-F
Quick Summary
BK/HLS-F fuse holder from Eaton protects control circuits by securely housing replaceable fuses in panel installations. A common challenge is finding a compact, RoHS-compliant holder that fits standard panels and withstands vibrations in automation environments. This design emphasizes RoHS compliance and robust tin-plated copper terminals, helping reduce downtime and simplify maintenance across industrial equipment. With its panel-mount form and Bussmann series compatibility, BK/HLS-F delivers reliable protection while supporting efficient, scalable automation deployments. Operators and maintenance teams benefit from straightforward replacement of fuses without removing the entire assembly, reducing service times. Additionally, the compact 2.68 inch length and 1.57 inch width help maximize enclosure space in tightly packed control panels. Designed for industrial environments, the HLS-F aligns with RoHS expectations and the needs of energy efficiency initiatives.
Product Information
Extended Description
BK/HLS-F Eaton: Eaton Bussmann series HLS fuse holder, 125 Vac, 60 Vdc, 15A, Panel, Thermoplastic body, Tin-plated bifrucated copper terminal - BK/HLS-F
Product Name
Eaton Bussmann series HLS fuse holder
Catalog Number
BK/HLS-F
UPC
051712129404
EAN
5027590096867
Product Length/Depth
2.68 in
Product Height
1.21 in
Product Width
1.57 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
15 A
Voltage rating
125 Vac, 60 Vdc
Material
Thermoplastic body Tin-plated bifurcated copper terminal
Mounting method
Panel
BK/HLS-F~BK-HLS-F~FUSEHOLDER
BK/HLS-F~BK-HLS-F~FUSEHOLDER
Bussmann series Fuseology
Eaton Specification Sheet - BK/HLS-F
The BK/HLS-F offers a 15 A, 125 Vac and 60 Vdc electrical rating, establishing a robust foundation for overcurrent protection of panel-mounted power circuits. This translates to predictable fuse operation, reduced nuisance trips, and safer system behavior in both AC control rails and DC logic supplies. In typical automation cabinets, designers gain flexibility by matching Bussmann series fuses with a dedicated holder, enabling fast, correct replacements during maintenance or fault events. The thermoplastic body provides a lightweight, durable housing that simplifies mounting into standard cutouts while resisting impact in industrial environments. Tin-plated bifurcated copper terminals deliver low contact resistance and corrosion resistance, ensuring reliable wire terminations even under vibration and temperature cycling. The panel-mount design streamlines installation and optimizes enclosure space, supporting cleaner cable runs and easier future upgrades. Compliance with RoHS requirements helps meet regulatory expectations and procurement policies, while the Eaton Bussmann series integration supports straightforward sourcing and BOM alignment for large-scale deployments.
Get a Quick Quote for a Eaton BK/HLS-F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/HLS-F?
Enquire Now
FAQs
The BK/HLS-F is designed for panel mounting and accepts standard Bussmann series fuses in automation cabinets. To install, secure the thermoplastic body in a panel cutout, then connect conductors to the tin-plated bifurcated copper terminals. Ensure the fuse is correctly seated and verify voltage and current ratings match your application before energizing the circuit.
BK/HLS-F is rated for 15 A, with voltage ratings of 125 Vac and 60 Vdc. Its physical dimensions are 2.68 in in length, 1.57 in in width, and 1.21 in in height, with an approximate weight of 0.8 lb. It uses a thermoplastic body and tin-plated bifurcated copper terminals for durable, reliable connections.
Yes, the BK/HLS-F is RoHS compliant, meaning it meets restrictions on certain hazardous substances for electronics manufacturing. This supports regulatory compliance in many regions and aligns with sustainability goals. The RoHS status helps simplify supplier audits and ensures compatibility with other RoHS-compliant components in your control panel.
This fuse holder is ideal for industrial control panels, automation equipment, and machinery wiring where reliable overcurrent protection is needed. It benefits environments requiring compact, panel-mounted protection with durable terminals and RoHS compliance, such as manufacturing lines, process controls, and packaging equipment, especially where space is at a premium and maintenance downtime must be minimized.
Official catalogs and datasheets from Eaton are available for BK/HLS-F, including the Bussmann series documentation. Certifications are listed as RoHS compliant, with additional manufacturer certifications available upon request. For procurement, refer to the catalog numbers and part drawings, and contact Eaton support for any jurisdiction-specific compliance verification or UL/CE statements if required.
