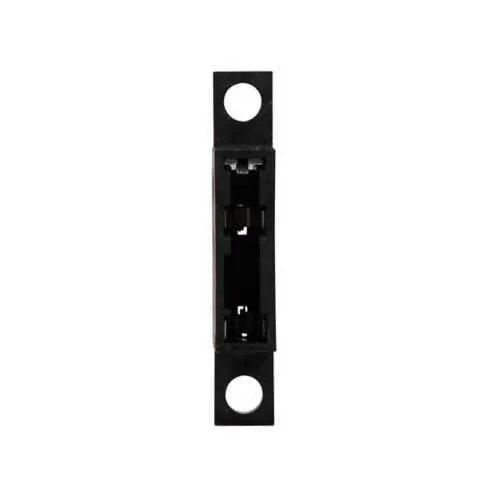

Eaton BK/HLT Fuse Holder - RoHS Compliant, 60 Vdc
Part Number: BK/HLT
Quick Summary
The Eaton BK/HLT fuse holder provides reliable panel-mounted protection for indicating fuses in electrical distribution. This compact accessory is designed to simplify field installation, reduce wiring errors, and improve fault diagnosis by keeping fuses clearly accessible and securely mounted. Engineers often struggle with poor fuse visibility, loose terminals, and panel integration challenges that drive maintenance downtime and costly troubleshooting. While RoHS compliance is confirmed by Eaton, formal CE, SIL, or IP certifications are not listed in this product data; always verify with the latest Eaton datasheets for official certification status. By supporting GMT indicating fuses and offering tin-plated copper terminations, this holder delivers faster service, lower replacement costs, and consistent protection across industrial control panels.
Product Information
Extended Description
BK/HLT Eaton: Eaton Bussmann series HLT fuse holder, 125 Vac, 60 Vdc, 15A, Panel, Thermoplastic body, Tin-plated bifrucated copper terminal - BK/HLT
Product Name
Eaton Bussmann series HLT fuse holder
Catalog Number
BK/HLT
UPC
051712108225
EAN
5027590240796
Product Length/Depth
2.68 in
Product Height
1.21 in
Product Width
1.57 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
15 A
Voltage rating
125 Vac, 60 Vdc
Material
Thermoplastic body Tin-plated bifurcated copper terminal
Mounting method
Panel
Used with
Used with GMT Indicating fuse
Bussmann series Fuseology
Eaton Specification Sheet - BK/HLT
Bussmann series HLS, HLT, PCT indicating fuse holder data sheet no. 5010
Bussmann series HLS, HLT, PCT indicating fuse holder data sheet no. 5010
Feature → Thermoplastic body with a panel-mount design provides a lightweight, impact-resistant housing. Business Impact → This reduces enclosure weight while maintaining electrical isolation and safety margins. Application → Ideal for dense control panels in automated factories where space is at a premium. Feature → Tin-plated bifurcated copper terminals ensure low contact resistance and corrosion resistance. Business Impact → This yields reliable, long-term terminations with fewer field failures and reduced maintenance. Application → Suitable for quick, secure wiring in high-vibration environments typical of packaging lines and conveyors. Feature → Amperage rating of 15 A and voltage rating of 125 Vac / 60 Vdc supports both AC and DC circuits. Business Impact → Enables flexible protection strategies across mixed automation systems. Application → Fits panel protection schemes in industrial machinery. Feature → RoHS compliant with GMT indicating fuse compatibility. Business Impact → Streamlines regulatory procurement and compliance audits. Application → Use in regulated industries requiring sustainable materials. Feature → Panel mounting method simplifies installation and service access. Business Impact → Reduces commissioning time and downtime during replacements. Application → Works across standard electrical cabinets and control panels.
Get a Quick Quote for a Eaton BK/HLT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/HLT?
Enquire Now
FAQs
To install, mount the BK/HLT on the panel using the dedicated mounting provisions, then terminate wiring with the tin-plated copper terminals. Ensure the GMT indicating fuse is compatible and insert it per the manufacturer's guidelines. Verify clearance and torque specifications to maintain isolation and vibration resistance in typical industrial environments.
The BK/HLT is rated for 15 A with voltage ratings of 125 Vac and 60 Vdc. This dual AC/DC capability supports mixed-signal control panels and drives, enabling consistent protection across diverse automation circuits without the need for different holders.
Yes, the BK/HLT is RoHS compliant per Eaton datasheets. Formal CE, SIL, or IP certifications are not listed in the provided specifications; for official certification status, consult Eaton’s latest technical documentation or contact the manufacturer directly.
The BK/HLT is designed for use with GMT indicating fuses, which facilitates clear status indication and straightforward replacement in control panels. When selecting replacement fuses, confirm GMT compatibility and fuse rating to maintain protecting characteristics.
Using the BK/HLT standardizes panel protection with reliable terminations and clear fuse visibility, reducing troubleshooting time and replacement delays. The robust thermoplastic body and tamper-resistant terminals contribute to longer service intervals, lower maintenance costs, and improved uptime in high-demand industrial environments.
