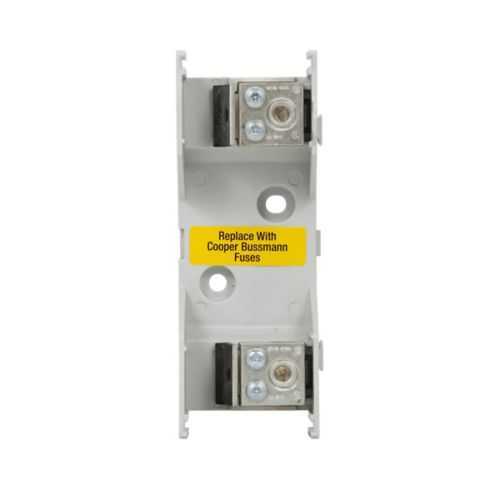

Eaton BK/JM60100-1CR Modular Fuse Block - UL Listed
Part Number: BK/JM60100-1CR
Quick Summary
Eaton Bussmann JM modular fuse block provides compact overcurrent protection for control panels and machine builders. Design engineers often wrestle with space constraints, wiring density, and the challenge of keeping multiple safety standards aligned. UL Listed, CSA Certified, and RoHS Compliant, it helps streamline approvals and sustainability goals. With a 100 A single-pole design and CR bulk-pack option, it simplifies procurement and maintenance, delivering faster commissioning and lower lifecycle costs. Easy to install in tight cabinets reduces commissioning time and field errors. This solution is well suited for automation equipment, conveyors, and power distribution panels. Adopting this block integrates seamlessly with the JM fuse block ecosystem and standard wiring schematics.
Product Information
Extended Description
BK/JM60100-1CR Eaton: Eaton Bussmann series JM modular fuse block, Bulk pack, CR, 100 A, Single-pole
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
BK/JM60100-1CR
UPC
051712519472
Product Length/Depth
5.38 in
Product Height
2.9 in
Product Width
2 in
Product Weight
0.31 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
100 A
Number of Poles
Single-pole
Special features
Bulk pack, CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - BK/JM60100-1CR
Feature: Compact JM modular fuse block design for single-pole circuits up to 100 A. Business Impact: Enables tight control panels with reduced space usage and simplified wiring, accelerating panel assembly and reducing cabinet depth. Application: Ideal for machine controls, conveyor drives, and power distribution in industrial equipment. Feature: Bulk-pack CR configuration. Business Impact: Lowers stocking costs and speeds replacement cycles, supporting lean maintenance strategies. Application: High-volume OEM assemblies and scheduled maintenance programs benefit from readily available CR options. Feature: Compliance and certifications. Business Impact: Streamlines safety approvals and regulatory risk management with UL Listed, CSA Certified, and RoHS Compliant status. Application: Required in regulated industries and international deployments, improving time-to-market. Feature: Compact dimensions and lightweight build. Business Impact: 5.38 in length, 2 in width, 2.9 in height, and 0.31 lb weight enable easy mounting in tight enclosures and retrofit projects. Application: Control cabinets, panel retrofits, and space-constrained machinery installations. Feature: Clear identification and cataloging. Business Impact: Uses standard catalog numbers and UPC for fast procurement and traceability, reducing ordering errors. Application: Maintenance, stocking, and supply-chain workflows in engineering environments for reliable uptime.
Get a Quick Quote for a Eaton BK/JM60100-1CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/JM60100-1CR?
Enquire Now
FAQs
The BK/JM60100-1CR is designed to mount within the Eaton Bussmann JM fuse block ecosystem and accepts CR fuses in a single-pole configuration. Its 100 A rating aligns with common industrial protection schemes, enabling straightforward substitution in existing JM-based panels without wiring rework. Compatibility with the JM family reduces spare parts variety and accelerates maintenance workflows.
The fuse block measures 5.38 in in length, 2 in in width, and 2.9 in in height, weighing about 0.31 lb. It supports a 100 A amperage rating and is single-pole. The catalog number is BK/JM60100-1CR, with a UPC of 051712519472. These specs help with precise space planning, cable routing, and inventory control in control panels and cabinets.
Yes. The BK/JM60100-1CR carries UL Listed and CSA Certified markings and RoHS compliance, supporting safety approvals and environmental requirements. This combination accelerates regulatory submissions and enables deployment across international facilities, provided the overall system wiring and protection scheme meet applicable codes and standards.
The block is UL Listed, CSA Certified, and RoHS compliant. These certifications reduce the need for extensive third-party testing for standard applications and help align with wiring, electrical, and environmental regulatory requirements. As a result, project timelines for equipment built around this component can be shortened, with clearer compliance pathways for customers and integrators.
Bulk-pack CR availability lowers procurement costs per unit and reduces resupply lead times. The single-pole 100 A protection simplifies stock keeping and field maintenance, minimizing downtime from part shortages. For OEMs deploying multiple machines, the ability to standardize on a single fuse-block solution translates into predictable maintenance budgets and faster downtime recovery.
