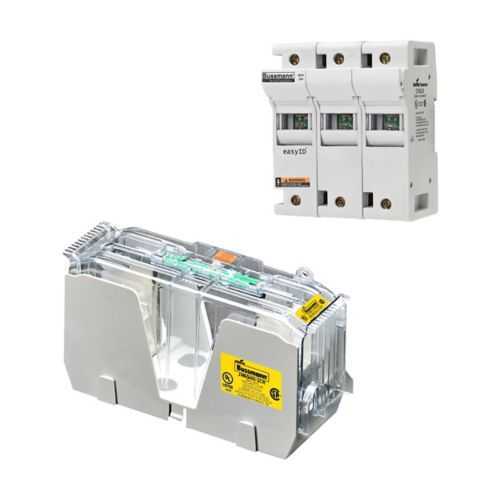

Eaton Bussmann JM modular fuse block BK/JM60100-1MW14 - UL Listed
Part Number: BK/JM60100-1MW14
Quick Summary
Eaton Bussmann JM modular fuse block is a compact 100 A protection device for electrical panels and machine controls. Design teams often wrestle with bulky or mismatched fuses that slow commissioning and raise maintenance costs. UL Listed and CSA Certified, RoHS compliant ensures regulatory alignment and safer, longer service life. With bulk-pack convenience and a 100 A rating, this JM fuse block simplifies stocking, reduces downtime, and speeds panel builds. It supports lineside and loadside conductor configurations and integrates with standard assemblies, delivering reliable protection without sacrificing installation efficiency. For engineers seeking proven, scalable protection in automation and control panels, this model delivers measurable business value.
Product Information
Extended Description
BK/JM60100-1MW14 Eaton: Eaton Bussmann series JM modular fuse block, Bulk pack, 100 A, Single-pole, Lineside: (1) 1/0-14 Cu/Al, Loadside: (4) 4-14 Cu, 4-8 Al, (8) 10-14 Cu, 100
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
BK/JM60100-1MW14
UPC
051712519519
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
Not Applicable
Compliances
Contact Manufacturer RoHS Compliant
Certifications
Not Applicable UL Listed CSA Certified
Amperage Rating
100 A
Number of Poles
Single-pole
Quantity
100
Special features
Bulk pack
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - BK/JM60100-1MW14
Feature: 100 A, single-pole protection provides precise overcurrent isolation. Business impact: minimizes nuisance trips while preserving starter reliability and reducing spare fuse requirements. Application: ideal for motor control centers and power distribution panels in automation lines. Feature: Bulk-pack packaging supports high-volume manufacturing and OEM projects. Business impact: lowers stocking costs and simplifies inventory management. Application: large-panel builders and assembly lines. Feature: Conductor terminations designed for lineside (1) 1/0-14 Cu/Al and loadside (4) 4-14 Cu, (4-8) Al, (8) 10-14 Cu. Business impact: streamlines wiring and reduces installation time, aiding consistent wiring practices. Application: panel shops and machine builders deploying standardized harnesses. Feature: RoHS compliance with UL Listed and CSA Certified certifications. Business impact: simplifies compliance documentation and supplier qualification, reducing regulatory risk. Application: machinery, robotics, and industrial equipment needing proven certification. Feature: Bulk-pack convenience combined with compact JM modular design. Business impact: reduces spare part inventory and speeds retrofits in retrofit-heavy facilities. Application: automation upgrades, panel refurbishments, and repeatable manufacturing lines.
Get a Quick Quote for a Eaton BK/JM60100-1MW14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BK/JM60100-1MW14?
Enquire Now
FAQs
For proper installation, mount the unit in a suitable electrical panel, route lineside conductors to the (1) 1/0-14 Cu/Al connection and loadside conductors to the (4) 4-14 Cu, (4-8) Al, (8) 10-14 Cu terminals. Use correct torque on terminals, follow standard wiring practices, and ensure clear labeling for quick fault isolation during maintenance.
The BK/JM60100-1MW14 provides 100 A amperage rating with a single-pole design. Lineside terminals accept 1/0-14 Cu/Al conductors, while loadside terminals accept 4-14 Cu, 4-8 Al, and 8-14 Cu. It is UL Listed, CSA Certified, and RoHS compliant, making it suitable for regulated industrial environments.
Its 100 A capacity aligns with common industrial loads, while the single-pole configuration simplifies protection schemes in controls and motors. Bulk-pack packaging reduces part stock requirements, speeding panel builds. The modular JM design also eases retrofits and upgrades in automated machinery without extensive rewiring.
This fuse block carries UL Listed and CSA Certified marks and is RoHS compliant. These certifications support regulatory approvals, safer product stewardship, and easier procurement for enterprises requiring regulatory compliance in electrical protection and circuit control.
Key ROI drivers include bulk-pack stocking reducing spare parts inventory, faster commissioning from standardized JM modules, and reliable 100 A protection that minimizes downtime due to nuisance trips. The combination of RoHS, UL Listed, and CSA Certified status also lowers compliance risk in regulated industries.
