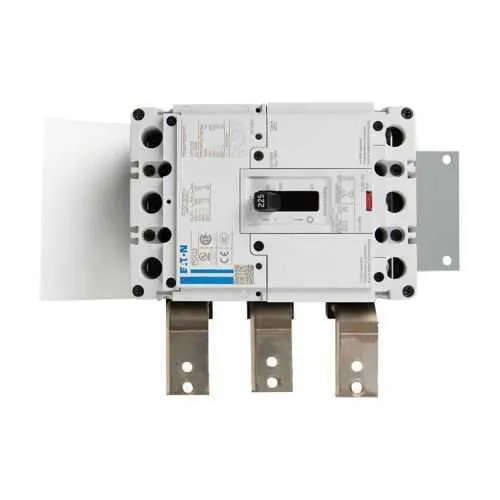

Eaton BKD2F100H Main Breaker Kit - UL 67 Certified
Part Number: BKD2F100H
Quick Summary
The Eaton BKD2F100H Main Breaker Kit provides fast, field-installable protection for three-phase panelboards. Installation teams frequently face delays from incompatible replacements and extended downtime during upgrades. UL 67 certification and NEMA compliance ensure safe operation and compatibility with standard panels. This kit integrates with the Pow-R-Xpress family, delivering reliable protection for 100A circuits at 240V with a 35KAIC interrupting capacity. By consolidating main-breaker functionality into a compact kit, it reduces assembly time and minimizes wiring errors. For engineers and procurement professionals, this translates to shorter project timelines, predictable performance, and streamlined stocking through Eaton's catalog. In short, it combines strong certifications, a compact footprint, and clear business value for modern industrial control panels.
Product Information
Extended Description
BKD2F100H Eaton: Eaton Pow-R-Xpress Main Circuit Breaker Kit PDD23F 100A 240V 35KAIC HORZ
Product Name
Eaton Pow-R-Xpress main breaker kit
Catalog Number
BKD2F100H
UPC
786689395032
Product Length/Depth
6 in
Product Height
3 in
Product Width
4 in
Product Weight
5 lb
Compliances
NEMA Compliant
Certifications
UL 67
Phase
Three-phase
Amperage Rating
100A
Rated operational current
100A
Series
Pow-R-Xpress series
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - BKD2F100H
Feature: Field-installable design reduces on-site labor and equipment downtime → Business Impact: Shorter installation cycles and lower labor costs → Application: Panelboard upgrades and new builds in manufacturing and processing facilities. The BKD2F100H is engineered to snap into standard Eaton Pow-R-Xpress configurations, minimizing mis-wiring and rework while accelerating commissioning. Long-tail keywords: Pow-R-Xpress main breaker kit, field-installable breaker kit, panelboard upgrade solutions.Feature: 100A, 240V service with 35KAIC rating → Business Impact: Robust fault-current protection for typical industrial loads → Application: Three-phase panelboards handling medium-to-heavy loads in automation lines. This rating ensures reliable interruption capability under fault conditions, reducing equipment damage and downtime. Long-tail keywords: three-phase 100A panelboards, fault current rating 35KAIC, industrial protection kit.Feature: UL 67 certification and NEMA compliance → Business Impact: Simplified regulatory approvals and field acceptance → Application: Hospitals, food & beverage, and general manufacturing environments requiring verified safety standards. These certifications provide confidence during audits and inspections. Long-tail keywords: UL 67 breaker, NEMA compliant electrical equipment, regulatory compliance for panel protection.Feature: Compatible with Pow-R-Xpress series and horizontal orientation → Business Impact: Streamlined installation and inventory management → Application: Retrofit and upgrade projects where orientation and compatibility matter. The kit’s horizontal layout reduces space requirements and wiring complexity in existing panels. Long-tail keywords: Pow-R-Xpress compatibility, horizontal breaker installation, panel retrofit kit.Feature: Compact footprint and lightweight design (6 in L × 3 in H × 4 in W, 5 lb) → Business Impact: Easier integration into cramped spaces and lower shipping costs → Application: Space-constrained electrical rooms and modular control panels. Long-tail keywords: compact main breaker kit, space-saving electrical components, lightweight panel protection.
Get a Quick Quote for a Eaton BKD2F100H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BKD2F100H?
Enquire Now
FAQs
Install the BKD2F100H as a main breaker module within the Pow-R-Xpress lineup. Ensure panelboard compatibility, align with the three-phase bus bars, and secure using standard mounting hardware. The kit’s compact 6x4x3 in footprint minimizes space conflicts, and the 5 lb weight eases handling during retrofit projects. Follow the manufacturer’s torque specs and verify UL 67/NEMA compliance before energizing.
The BKD2F100H is rated for 100A, 240V operation with a fault-current capacity of 35KAIC. It is designed for three-phase systems and is part of Eaton’s Pow-R-Xpress family. These specs support reliable protection for standard industrial loads while maintaining safe interrupting performance under fault conditions.
Yes. The kit is purpose-built for upgrading three-phase panelboards in industrial settings. Its UL 67 certification and NEMA compliance simplify approvals, while the compact form factor and horizontal orientation ease installation in existing spaces. Leveraging Pow-R-Xpress compatibility accelerates stocking and reduces project lead times during line modernization.
BKD2F100H carries UL 67 certification and is NEMA compliant. These certifications verify electrical safety, performance, and compatibility with standard panels, which simplifies regulatory audits and minimizes field rejection risks. For engineers, this translates to predictable, compliant protection for critical industrial equipment.
The kit reduces installation time and field labor due to its field-installable design and standardized Eaton components, lowering commissioning costs. Its robust 35KAIC protection and UL/NEMA certifications reduce downtime from protective failures and simplify future upgrades, contributing to lower total cost of ownership over the panel’s lifecycle.
