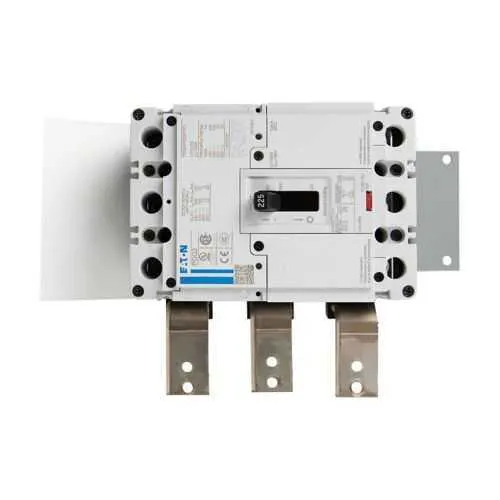

Eaton BKD2F200H Main Breaker Kit - UL 67 Certified
Part Number: BKD2F200H
Quick Summary
The Eaton BKD2F200H main breaker kit provides reliable main circuit protection for 200A, 240V panel installations. Engineers often struggle with lengthy assembly, wiring errors, and ensuring code compliance in space-constrained panels. This UL 67 certified solution also offers NEMA compliance, reinforcing safety and reliability in demanding environments. By consolidating protection into a single, modular kit, it streamlines procurement and installation, delivering faster commissioning. The Pow-R-Xpress kit is designed for three-phase panelboard applications, supporting efficient, scalable distribution with consistent performance across Eaton’s ecosystem. In short, it pairs technical rigor with practical business value for modern industrial facilities.
Product Information
Extended Description
BKD2F200H Eaton: Eaton Pow-R-Xpress Main Circuit Breaker Kit PDD23F 200A 240V 35KAIC HORZ
Product Name
Eaton Pow-R-Xpress main breaker kit
Catalog Number
BKD2F200H
UPC
786689395070
Product Length/Depth
6 in
Product Height
3 in
Product Width
4 in
Product Weight
5 lb
Compliances
NEMA Compliant
Certifications
UL 67
Phase
Three-phase
Amperage Rating
200A
Rated operational current
200A
Series
Pow-R-Xpress series
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Xpress stocking program flyer
Pow-R-Line Xpert family overview
Eaton Specification Sheet - BKD2F200H
The 200A, 240V rating with 35KAIC withstand is a primary feature that directly improves system protection and fault handling. In practice, this means your three-phase distribution stays protected during high-energy faults, reducing damage and downtime while enabling faster recovery. This capability translates to measurable reliability gains in heavy-load environments such as manufacturing lines and data-center adjacencies, with a predictable response that aligns with industry standards. The compact footprint—6 in length, 4 in width, and 3 in height—and a modest 5 lb weight make installation straightforward in tight panel enclosures, saving cabinet space and easing retrofits or upgrades. Compatibility with the Pow-R-Xpress line ensures quick stocking and consistent parts sourcing, which lowers maintenance stockouts and shorten project timelines. UL 67 certification and NEMA compliance further support regulatory alignment, helping customers meet safety and performance requirements across facilities. Installation is simplified by using a single main-breaker kit designed for three-phase panelboards, reducing wiring complexity and potential connection errors. The kit’s catalog number BKD2F200H ensures precise ordering, while its rugged construction is tailored for industrial environments where vibration and temperature variations are common. Field technicians benefit from standardized terms and proven Eaton interfaces, which minimize training time and support fast fault isolation. Overall, the BKD2F200H delivers robust protection, space efficiency, and supply-chain convenience that translate into lower total cost of ownership and improved uptime for critical electrical infrastructure.
Get a Quick Quote for a Eaton BKD2F200H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BKD2F200H?
Enquire Now
FAQs
Yes, BKD2F200H is designed for compatibility with Eaton’s Pow-R-Xpress main breaker family and standard three-phase panelboards. Recommended steps include verifying the catalog number BKD2F200H, ensuring power is isolated, mounting the kit in the main breaker position, wiring feeders per the panelboard diagram, and performing a functional check to verify UL 67 compliance and correct trip settings. Following Eaton’s installation guidelines minimizes setup time and ensures reliable operation in industrial environments.
The 200A amperage rating indicates the maximum continuous current the breaker kit is designed to interrupt, while 240V defines the nominal operating voltage. The 35KAIC short-circuit interrupting rating means the breaker can safely interrupt fault currents up to 35,000 amperes at line voltage. This level of protection helps limit damage during heavy fault events and supports safe, rapid isolation of the affected circuit in industrial and commercial installations.
BKD2F200H is well-suited for three-phase power distribution in industrial facilities, including manufacturing lines, lighting and emergency systems, and panelboard applications where space is limited. Its compact footprint and high interrupting rating make it ideal for retrofits or new builds requiring reliable main protection without expanding enclosure size. The kit supports standardized Eaton interface and stock programs, reducing downtime during replacements.
The BKD2F200H carries UL 67 certification and is NEMA compliant, reinforcing safe operation and compatibility with industry standards for enclosures and electrical equipment. While not every region uses UL 67 as the sole requirement, these certifications facilitate regulatory alignment, improve safety documentation, and streamline audits for commercial and industrial installations.
By consolidating main protection into a single, pre-engineered kit, BKD2F200H reduces installation time and potential wiring errors, delivering faster commissioning and fewer field issues. Its compatibility with Pow-R-Xpress stocking and Eaton’s engineering support helps minimize spare-part costs and stockouts. Over the system lifecycle, this translates to reduced maintenance time, lower service costs, and improved uptime for critical processes.
