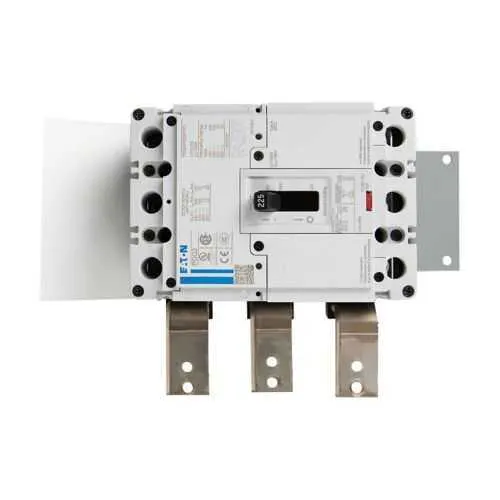

Eaton BKD2F200H1 Pow-R-Xpress main breaker kit - UL 67
Part Number: BKD2F200H1
Quick Summary
Eaton Pow-R-Xpress main breaker kit protects 240V panelboards in industrial settings. Engineers and installers often face time-consuming wiring and field assembly, risking delays and noncompliance. With UL 67 certification and NEMA compliance, this kit helps ensure safe operation and regulatory alignment across standard low-voltage distribution panels. The compact, pre‑assembled design accelerates commissioning and reduces field errors, delivering faster project completion and lower total cost of ownership in industrial automation applications. Designed for quick swap-outs, the BKD2F200H1 supports straightforward field installation with compact dimensions (6 in L, 4 in W, 3 in H) per spec. This helps reduce downtime during maintenance windows. The kit's 200A/240V ratings align with common industrial feeders, enabling reliable main protection for motors, drives, and lighting systems while keeping wiring simple and compliant.
Product Information
Extended Description
BKD2F200H1 Eaton: Eaton Pow-R-Xpress Main Circuit Breaker Kit PDD22F200A 240V 35K HRZ 1PH
Product Name
Eaton Pow-R-Xpress main breaker kit
Catalog Number
BKD2F200H1
UPC
786689585440
Product Length/Depth
6 in
Product Height
3 in
Product Width
4 in
Product Weight
5 lb
Compliances
NEMA Compliant
Certifications
UL 67
Type
Pow-R-Xpress series Main breaker kit
Amperage Rating
200A
Voltage rating
240V
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - BKD2F200H1
Feature: The BKD2F200H1 Pow-R-Xpress main breaker kit is a pre‑assembled solution designed for rapid field installation. Business impact: By eliminating multiple loose components and reducing wiring complexity, it cuts on-site labor time and minimizes installation errors in panelboard upgrades and new OEM deployments. Application: Ideal for industrial control panels, commercial panelboards, and manufacturing facilities upgrading to a safe, fast-to-install main protection solution. Feature: It supports 200A at 240V, safeguarding feeders and downstream equipment. Business impact: This electrical rating ensures protection for motors, drives, and lighting circuits while meeting common industrial distribution standards. Application: Suitable for equipment rooms, processing lines, and power distribution rooms requiring robust main protection. Feature: UL 67 certification and NEMA compliance are baked-in. Business impact: They provide regulatory assurance and documented safety performance for audits and facility standards. Application: Helps meet safety programs, insurance requirements, and customer spec sheets. Feature: Compact dimensions and light weight (6 in L x 4 in W x 3 in H; 5 lb). Business impact: Space-efficient footprint eases mounting in tight enclosures and simplifies transport for field service. Application: Fits retrofit projects and OEM panel installations with limited space. Feature: Designed for Eaton Pow-R-Xpress ecosystem and 1PH main breakers. Business impact: Ensures clean compatibility with panelboards, reduces wiring changes, and accelerates commissioning. Application: Integrates seamlessly with Eaton distribution products and modular control panels. Feature: Documentation and downloads including datasheet and program guide. Business impact: Access to official installation guides improves compliance and reduces risk during start-up and maintenance. Application: Useful for commissioning teams, inspectors, and service technicians seeking verified, up-to-date reference material.
Get a Quick Quote for a Eaton BKD2F200H1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BKD2F200H1?
Enquire Now
FAQs
BKD2F200H1 is designed for 240V, 200A service in standard Eaton Pow-R-Xpress panelboards. It fits with 1PH configurations and uses a pre-assembled main breaker kit to simplify mounting. Verify catalog references and enclosure dimensions (6 in L x 4 in W x 3 in H) to ensure seamless integration with existing panelboard frames and internal bus connections.
Key specs are 200A amperage rating and 240V voltage rating, UL 67 certification, and NEMA compliance. This combination supports reliable fault protection, safe operation under industrial conditions, and alignment with regulatory audits. In practice, these ratings help prevent overcurrent damage to feeders and downstream equipment while simplifying compliance documentation.
Yes, BKD2F200H1 is suitable for industrial control panels, OEM equipment, and panelboards needing a Pow-R-Xpress main breaker. Consider space constraints, mounting depth, and enclosure style to ensure the 6x4x3 inch footprint fits the cabinet. Use the pre-assembled kit to speed commissioning and minimize field wiring errors during panel upgrades.
UL 67 certification covers main circuit breakers used in industrial environments, while NEMA compliance signals compatibility with standard enclosure and environmental requirements. Together they provide regulatory assurance, safety performance documentation, and smoother audits for manufacturing facilities, data centers, and process plants. Always cross-check local codes and the panelboard listings before deployment.
ROI derives from faster installation, reduced wiring errors, and simpler maintenance checks via a standardized, pre‑assembled kit. The main advantages include shorter commissioning times and lower labor costs. For long-term value, perform periodic terminal checks, verify protective device behavior, and keep the official Eaton datasheet and installation guides readily accessible to sustain uptime.
