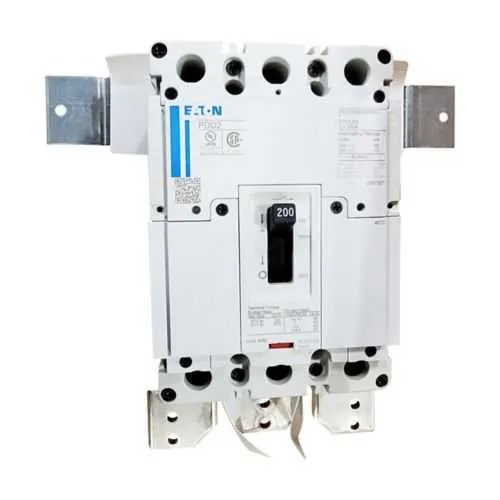

Eaton BKG2M100 Pow-R-Xpress Main Circuit Breaker Kit - UL 67
Part Number: BKG2M100
Quick Summary
Pow-R-Xpress main circuit breaker kit provides a compact, quick-install protection solution for panelboards and switchgear in industrial facilities. Engineers often contend with downtime and space constraints when retrofitting legacy panels, making installation slow and costly. This kit is UL 67 certified and designed for NEMA-compliant applications, supporting both single-phase and three-phase configurations to fit a wide range of panel architectures. By leveraging the convertible PDG2XM design and a 100A rating, it enables streamlined procurement, faster installations, and standardized stock across project sites—delivering measurable reductions in panel downtime and total cost of ownership for industrial controls modernization.
Product Information
Extended Description
BKG2M100 Eaton: Eaton Pow-R-Xpress Main Circuit Breaker Kit, PDG2XM CONVERTIBLE, 100A
Product Name
Eaton Pow-R-Xpress main breaker kit
Catalog Number
BKG2M100
UPC
786689362454
Product Length/Depth
6 in
Product Height
3 in
Product Width
4 in
Product Weight
5 lb
Compliances
NEMA Compliant
Certifications
UL 67
Phase
Single-phase, three-phase
Type
CONV MCB KIT
Amperage Rating
100A
Rated operational current
150A
Series
Pow-R-stock
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - BKG2M100
Feature → Business Impact → Application: The BKG2M100 uses a convertible MCB kit design (CONV MCB KIT) that simplifies upgrades or retrofits, reducing field rework and enabling a seamless transition from older breakers to Pow-R-Xpress solutions in existing panels. This translates to shorter commissioning times and lower labor costs on site, ideal for panelboard modernization projects in manufacturing lines and distribution cabinets. Feature → Business Impact → Application: Rated at 100A with a rated operational current of 150A, the kit provides robust protection while accommodating short-duration overloads, helping prevent nuisance trips and improving process uptime in critical automation loops. This is particularly valuable in assembly lines and packaging operations where consistent power quality matters. Feature → Business Impact → Application: UL 67 certification and NEMA compliance give you confidence in safety and regulatory alignment, reducing risk during audits and facilitating installation in compliant facilities. This supports aerospace, automotive, and general industrial environments where safety certifications matter. Feature → Business Impact → Application: Compact dimensions (6 in L × 4 in W × 3 in H) and a light 5 lb weight enable easier handling, faster mounting, and reduced cabinet footprint, which is beneficial in crowded control panels and retrofit enclosures. Feature → Business Impact → Application: Compatibility with both single-phase and three-phase systems broadens applicability across mixed-power facilities, from small machine aggregations to larger PLC-driven panels, ensuring you don’t buy multiple SKUs for varied sections. Feature → Business Impact → Application: Part of the Pow-R-stock series and the Eaton Pow-R-Xpress stocking program, this kit improves uptime with ready-to-ship stock and predictable lead times, reducing project delays and inventory carrying costs across multiple sites.
Get a Quick Quote for a Eaton BKG2M100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BKG2M100?
Enquire Now
FAQs
The BKG2M100 is designed as a convertible MCB kit suitable for panelboards that require a main breaker upgrade. Its compact 6 x 4 x 3 in footprint and 5 lb weight simplify mounting in restricted spaces, making retrofit projects faster and less disruptive. The kit supports single-phase and three-phase configurations, allowing seamless replacement across diverse panel architectures.
The 100A protection level with a 150A rated operational current provides solid circuit protection while accommodating short-term overloads common in start-up surges and peak loading. This balance helps prevent nuisance trips in motor loads and process lines, improving uptime in manufacturing and packaging environments.
Yes. The BKG2M100 is designed for industrial control panels and related switchgear, with single-phase and three-phase compatibility. Its convertible design supports a range of panel configurations, simplifying procurement and installation across mixed-power facilities.
The kit is UL 67 certified and NEMA compliant, which supports safe operation and regulatory alignment in many industrial settings. These certifications help with audits, customer qualifications, and compliance documentation for panel installations in manufacturing and processing environments.
The Pow-R-Xpress stocking program provides ready-to-ship stock and consistent lead times, reducing project delays and inventory risk. This enables faster project start-up, easier procurement planning, and lower carrying costs for multiple site deployments or ongoing maintenance programs.
