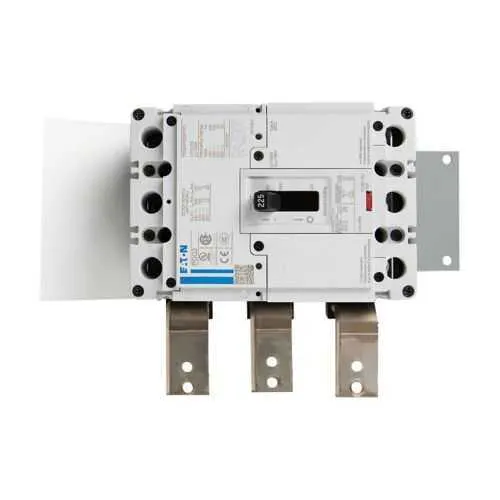

Eaton BKG2M100H Pow-R-Xpress main breaker kit - UL 67
Part Number: BKG2M100H
Quick Summary
Eaton BKG2M100H is a Pow-R-Xpress main breaker kit designed for rapid, reliable protection in three-phase electrical panels. Engineers often grapple with long lead times, space constraints, and coordination challenges during panel upgrades, and this kit helps streamline those processes. UL 67 certification and NEMA compliance provide critical safety and code assurances in demanding industrial environments. By pairing a compact footprint with a proven protection strategy, this kit enables faster commissioning, easier maintenance, and predictable lifecycle costs for factory automation and power distribution projects. Leverage the Pow-R-Xpress ecosystem for streamlined procurement and consistent installation practices across multiple panelbuilds.
Product Information
Extended Description
BKG2M100H Eaton: Eaton Pow-R-Xpress Main Circuit Breaker Kit PDG23M 100A 480V 65KAIC HORZ
Product Name
Eaton Pow-R-Xpress main breaker kit
Catalog Number
BKG2M100H
UPC
786689395223
Product Length/Depth
6 in
Product Height
3 in
Product Width
4 in
Product Weight
5 lb
Compliances
NEMA Compliant
Certifications
UL 67
Phase
Three-phase
Rated operational current
100A
Series
Pow-R-Xpress series
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - BKG2M100H
Feature → Business Impact → Application: The BKG2M100H delivers a compact, purpose-built design that fits standard enclosures, reducing panel footprint and freeing space for wiring and labeling. This translates to measurable time savings during installation and simpler future modifications in busy manufacturing lines. Application: ideal for retrofit projects and new builds where enclosure space is at a premium.Feature → Business Impact → Application: UL 67 certification and NEMA compliance reduce regulatory risk and simplify audit trails, helping maintenance teams meet safety and reliability standards without custom engineering. Application: suitable for industrial control panels in harsh environments where code conformity is non-negotiable.Feature → Business Impact → Application: Three-phase operation with a 100A rating and 65KAIC fault-current capability provides robust protection in high-demand 480V systems, minimizing downtime from faults and facilitating safer shutdowns. Application: suitable for distribution panels serving motors, drives, and heavy loads in manufacturing plants.Feature → Business Impact → Application: Sharp integration with the Pow-R-Xpress family and Eaton lifestyle of components accelerates procurement and reduces part variation, cutting costs and onboarding time for commissioning engineers. Application: practical for multi-panel deployments and standardized electrical rooms.Feature → Business Impact → Application: Precise dimensions (6 in x 4 in x 3 in) and 5 lb weight enable straightforward mounting and handling, lowering labor intensity during installation and service campaigns. Application: particularly beneficial for retrofit projects and space-constrained control cabinets.
Get a Quick Quote for a Eaton BKG2M100H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BKG2M100H?
Enquire Now
FAQs
The BKG2M100H is designed for Eaton Pow-R-Xpress panelboards and other compatible three-phase 480V systems. It aligns with the Pow-R-Xpress series’ mounting, wiring, and access clearances, enabling a straightforward drop-in upgrade without major enclosure alterations. Verify enclosure space and busbar spacing per Eaton installation guides before procurement.
Key specs include catalog number BKG2M100H, three-phase configuration, 100A rated operational current, 480V operating voltage, 65KAIC short-circuit rating, 5 lb weight, and compact 6x4x3 in footprint. Certifications listed are UL 67 and NEMA compliance, with a standard 6 in depth installation envelope.
Yes. With a 65KAIC short-circuit rating, the kit provides robust protection against high fault currents typical in industrial feeders and motor control circuits. Ensure bus rating and panelboard design support this level of protection and verify coordination with upstream protective devices.
The device is UL 67 listed and NEMA compliant, indicating compliance with safety and performance standards for industrial electrical equipment used in panelboard assemblies and control environments.
Plan for a three-phase, 480V installation with a 6x4x3 inch enclosure footprint and a 5 lb weight. Use Eaton’s Pow-R-Xpress quick selector guides for compatible accessories and follow the included reference materials to ensure proper orientation, wiring, and labeling during retrofit or new-build projects.
