Eaton BLGSF20 Enclosure Climate Control - NEMA 12
Part Number: BLGSF20
Quick Summary
Eaton BLGSF20 is a climate control enclosure solution designed to protect critical electrical gear within industrial enclosures. It helps maintain stable temperatures in compact spaces where heat from drives and controllers can accumulate. The solution supports UL Recognized components and adheres to NEMA 12 protection, providing reliable dust and splash resistance in harsh manufacturing environments. By integrating seamlessly with Eaton’s B-Line series enclosures, it minimizes condensation risks and extends component life, reducing maintenance downtime. For engineers and procurement teams, this enables predictable performance, easier facility compliance, and a scalable approach to climate control across projects.
Product Information
Extended Description

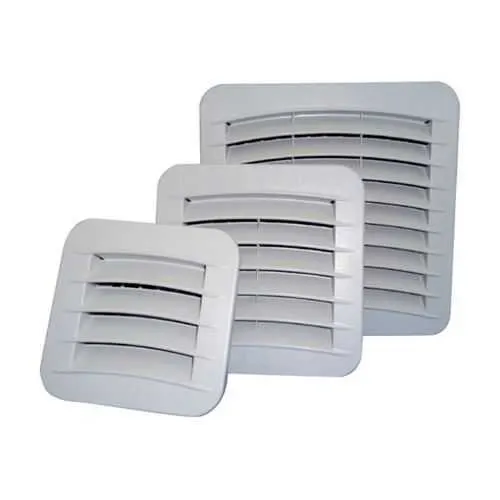

BLGSF20 Eaton: Eaton B-Line series enclosure climate control, NEMA 12, 8" NEMA 12 grills, Climate control products
Product Name
Eaton B-Line series enclosure climate control
Catalog Number
BLGSF20
UPC
799038644149
Product Length/Depth
8.031 in
Product Height
0.315 in
Product Width
8.031 in
Product Weight
0.75 lb
Certifications
UL Recognized
Product Category
Climate control products
Type
Back panel
Degree of protection
NEMA 12
Feature: Compact footprint with 8.031 in width/depth and slim 0.315 in height reduces enclosure footprint and simplifies retrofits. Business Impact: frees panel space, lowers installation time, and reduces mounting hardware costs. Application: ideal for tight control panels and space-constrained electrical cabinets in manufacturing lines. Feature: 8 in NEMA 12 grills enhance air distribution and cooling efficiency. Business Impact: improves thermal management, lowers hot spots, and extends component life. Application: supports localized climate control for drives and controllers in back panels. Feature: UL Recognized certification provides compliance assurance for control systems. Business Impact: streamlines approvals and simplifies BOMs for regulated environments. Application: suitable for critical machines requiring traceable components. Feature: Lightweight at 0.75 lb, easy handling and reduced labor during installation. Business Impact: lowers field labor costs and minimizes rework. Application: rapid upgrades or retrofits in existing enclosures. Feature: Cataloged product with official spec sheets and clear documentation. Business Impact: accelerates procurement, RFP responses, and project planning. Application: ensures design teams can reference the BLGSF20 datasheet and enclosure catalog.
Get a Quick Quote for a Eaton BLGSF20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BLGSF20?
Enquire Now
FAQs
The BLGSF20 is designed for Eaton B-Line series enclosures. It attaches as a climate control accessory to back-panel configurations, leveraging the enclosure’s existing mounting provisions. Its 8 in grills and compact footprint make retrofits straightforward, reducing installation time and ensuring consistent environmental control within rigid panel dimensions.
BLGSF20 delivers localized cooling within compact spaces, reducing hot spots and preventing condensation that can compromise controls. By integrating with the enclosure’s internal geometry, it supports stable temperatures for drives and controllers, resulting in improved reliability, fewer outages, and extended component life in demanding manufacturing environments.
Yes, the BLGSF20 is UL Recognized, which simplifies compliance for electrical assemblies and supports supplier qualification processes. This certification helps ensure consistent quality across installation sites, aligns with standard procurement requirements, and reduces risk when coordinating with facility safety and maintenance teams.
The BLGSF20 is documented in Eaton’s Climate Control Products Section and the official specification sheet. You can reference the catalog entry and datasheet for mounting guidelines, electrical ratings, dimensional data, and compatibility notes with the B-Line enclosure family. This documentation accelerates design reviews and BOM creation.
Installing BLGSF20 can reduce maintenance downtime by stabilizing enclosure temperatures and minimizing condensation-related faults. The lightweight design simplifies installation, lowering labor while the UL Recognized certification supports compliance. Over time, improved reliability and longer component lifespans translate into lower replacement costs and more predictable production uptime.
