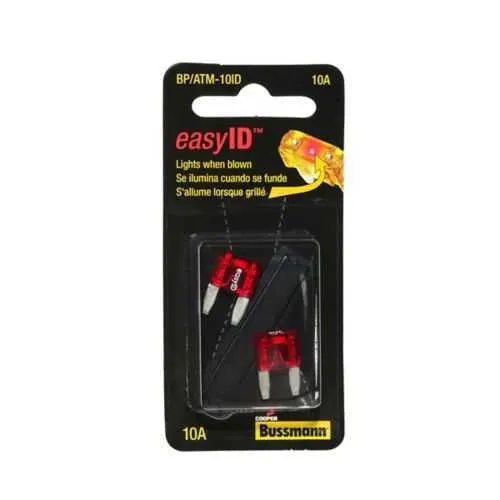

Eaton BP/ATM-10ID Blade Fuse - 1 kAIC, 32 Vdc
Part Number: BP/ATM-10ID
Quick Summary
BP/ATM-10ID is an Eaton Bussmann ATM easyID blade fuse that protects 32 Vdc circuits in industrial control panels. This compact device helps prevent unexpected downtime by delivering fast, predictable interruption at the rated current. RoHS compliant, with factory guidance supporting compliance verification for other regional certifications as needed, it combines reliable protection with easy identification. In demanding automation environments, clear labeling and rapid replacement are essential; this fuse supports both, enabling consistent performance and simplified maintenance while aligning with typical DC protection strategies.
Product Information
Extended Description
BP/ATM-10ID Eaton: Eaton Bussmann series ATM easyID blade fuse, Color code red, 32 Vdc, 10A, 1 kAIC, Non Indicating, Fast acting, Blade end, Colored plastic housing, zinc fuse element - BP/ATM-10ID
Product Name
Eaton Bussmann series ATM easyID blade fuse
Catalog Number
BP/ATM-10ID
UPC
051712237949
Product Length/Depth
0.43 in
Product Height
0.66 in
Product Width
0.15 in
Product Weight
0.2 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
10 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Colored plastic housing Zinc fuse element
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Color code red
BP/ATM-10ID~BP-ATM-10ID~ATM-10 AMP easyID FUSE - 2 PER CARD
BP/ATM-10ID~BP-ATM-10ID~ATM-10 AMP easyID FUSE - 2 PER CARD
Bussmann series Fuseology
Eaton Specification Sheet - BP/ATM-10ID
Feature: Fast-acting protection with a 1 kAIC interrupt rating. Business Impact: Minimizes damage from short-circuit faults and reduces unplanned downtime in DC power rails. Application: Ideal for control panels and automation circuits that require rapid fault clearance. Feature: ATM easyID blade design with color code red and non-indicating housing. Business Impact: Quick visual identification speeds troubleshooting and inventory management, lowering mean time to repair. Application: Field installations and panel assemblies where fast fault isolation matters. Feature: 32 Vdc voltage rating and 10 A amperage rating. Business Impact: Safe operation within standard industrial DC power supplies, enabling predictable protection without nuisance trips. Application: DC distribution in automation systems and motor control circuits. Feature: Compact dimensions and standard packaging. Business Impact: Easy integration into existing fuse blocks and minimal space footprint, improving panel density. Application: Replacement in legacy equipment or new builds with limited space. Feature: Zinc fuse element and colored plastic housing. Business Impact: Robust mechanical integrity and durable identification under harsh environments. Application: Industrial environments with vibration and exposure to contaminants. Feature: RoHS compliant per factory guidance. Business Impact: Supports compliance with environmental standards, reducing procurement risk and simplifying sustainability reporting. Application: Global deployments with RoHS or similar requirements.
Get a Quick Quote for a Eaton BP/ATM-10ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BP/ATM-10ID?
Enquire Now
FAQs
To install BP/ATM-10ID, use a compatible ATM fuse holder and ensure the blade end seats firmly in the holder. Confirm the panel is de-energized before replacement, observe the 32 Vdc rating, and replace only with a fuse of identical amperage (10 A) and interrupt rating (1 kAIC). The color-coded red housing aids quick identification during maintenance.
The fuse is rated for 10 A with a 1 kAIC interrupt rating and a 32 Vdc voltage rating. It is fast-acting, non-indicating, with a blade end design. Physical dimensions are 0.43 in in length, 0.66 in in height, and 0.15 in in width. These specs enable reliable protection for DC power rails in automation equipment.
BP/ATM-10ID is designed for DC protection in industrial automation and control panels using 32 Vdc systems. Its fast-acting performance helps safeguard DC power distribution and sensitive electronics. For automotive use, verify compatibility with your vehicle’s specific DC system and fuse block, and ensure the installation adheres to applicable automotive standards.
RoHS compliance is confirmed by factory guidance for BP/ATM-10ID. The data provided does not specify CE, SIL, or IP certifications; during procurement, confirm regional regulatory requirements with Eaton or your compliance team to ensure alignment with project standards.
The fuse’s easyID red color and standard blade design speed identification and replacement, reducing maintenance time and downtime. Its 10 A rating and 1 kAIC interrupt rating offer reliable fault clearance, protecting equipment and extending component life. The compact size supports higher panel density, lowering installation costs over time.
