Eaton BP/ATM-20ID Blade Fuse - 32 Vdc, 20 A, 1 kAIC RoHS
Part Number: BP/ATM-20ID
Quick Summary
The Eaton BP/ATM-20ID Blade Fuse provides fast-acting DC overcurrent protection for 32 Vdc circuits in control panels and industrial equipment. Engineers often grapple with misidentified fuses and downtime caused by slow protection devices; this blade fuse simplifies stocking, identification, and replacement with a compact, color-coded form factor. RoHS compliant and designed for reliable DC protection, it delivers a robust 20 A rating and a 1 kAIC interrupt capacity, making it suitable for demanding panel applications. The combination of a blade-end design, zinc fuse element, and yellow housing supports efficient maintenance, quicker fault resolution, and streamlined procurement in manufacturing environments.
Product Information
Extended Description

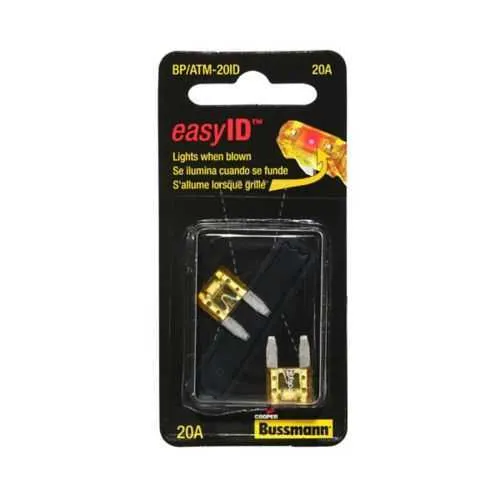

BP/ATM-20ID Eaton: Eaton Bussmann series ATM easyID blade fuse, Color code yellow, 32 Vdc, 20A, 1 kAIC, Non Indicating, Fast acting, Blade end, Colored plastic housing, zinc fuse element - BP/ATM-20ID
Product Name
Eaton Bussmann series ATM easyID blade fuse
Catalog Number
BP/ATM-20ID
UPC
051712237963
Product Length/Depth
0.43 in
Product Height
0.66 in
Product Width
0.15 in
Product Weight
0.1 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
20 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Zinc fuse element Colored plastic housing
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Color code yellow
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BP/ATM-20ID
Feature → Business Impact → Application: The BP/ATM-20ID uses a 32 Vdc rating and 20 A current limit to provide reliable protection for DC control circuits, reducing the risk of device damage and unscheduled downtime in machine automation projects. This translates into measurable uptime gains and lower maintenance costs when deployed in panel assemblies and DC-powered equipment. Feature → Business Impact → Application: With a 1 kAIC interrupt rating, the fuse tolerates short, high-energy faults common in DC systems, helping equipment survive fault events and protecting downstream electronics. Ideal for control cabinets, motor drives, and logic power rails where rapid interruption is critical. Feature → Business Impact → Application: Fast-acting performance minimizes arc energy and follow-on damage, enabling quicker fault isolation and faster restoration of service in critical lines. Feature → Business Impact → Application: The color code yellow and non-indicating design simplify visual identification on crowded panels, reducing installation errors and speeding component verification during commissioning. Feature → Business Impact → Application: The standard blade-end packaging ensures compatibility with common fuse holders, enabling straightforward retrofits and stock consolidation for maintenance teams. Feature → Business Impact → Application: RoHS compliance aligns with environmental and regulatory requirements, supporting sustainability programs and supply-chain traceability across global facilities.
