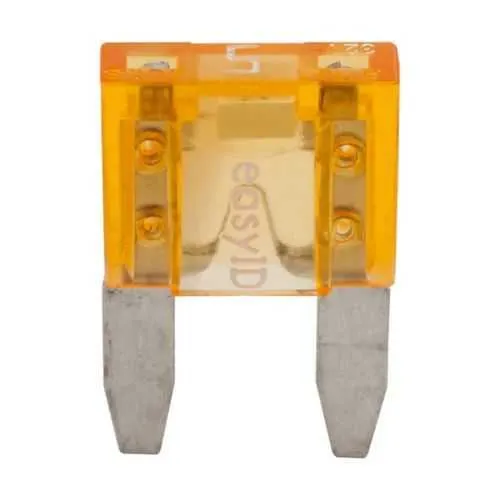

Eaton BP/ATM-5ID ATM easyID blade fuse - RoHS Compliant
Part Number: BP/ATM-5ID
Quick Summary
BP/ATM-5ID is an Eaton ATM easyID blade fuse for reliable DC overcurrent protection in industrial controls. Engineers often face nuisance trips from startup surges; the five amp rating helps maintain uptime without compromising protection. RoHS compliant helps meet global environmental standards, while its one kiloampere interrupt rating and thirty-two volt direct current rating support safe operation in control circuits. In practice, this fuse simplifies sourcing within the Eaton Bussmann family and supports quick panel repairs, while the tan color code aids fast identification in crowded enclosures.
Product Information
Extended Description
BP/ATM-5ID Eaton: Eaton Bussmann series ATM easyID blade fuse, Color code tan, 32 Vdc, 5A, 1 kAIC, Non Indicating, easyID blade fuse, Blade end, Colored plastic housing, zinc fuse element
Product Name
Eaton Bussmann series ATM easyID blade fuse
Catalog Number
BP/ATM-5ID
UPC
051712237925
Product Length/Depth
0.43 in
Product Height
0.66 in
Product Width
0.15 in
Product Weight
0.15 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
5 A
Interrupt rating
1 kAIC
Voltage rating
32 Vdc
Material
Zinc fuse element Colored plastic housing
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Color code tan
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - BP/ATM-5ID
Feature: The device provides DC overcurrent protection with a thirty-two volt rating and a five ampere limit. Business Impact: It safeguards sensitive control electronics from overload, reducing unplanned downtime and extending component life. Application: Suitable for DC control circuits in electrical panels and battery powered equipment. Feature: One kiloampere interrupt rating ensures resilience during short circuits. Business Impact: The fuse can interrupt higher fault currents without catastrophic failure, protecting downstream devices. Application: Panel line feeders and motor control centers in demanding environments. Feature: Color code tan and ATM easyID blade fuse design. Business Impact: Quick identification reduces service time and mis-pairing risks, especially in crowded panels. Application: Field service, panel assembly, and replacement tasks. Feature: Non-indicating fuse status. Business Impact: Reduces visual noise in complex panels, though verification through testing remains important for critical systems. Application: Industrial control panels with routine maintenance. Feature: Zinc fuse element inside a colored plastic housing and standard packaging. Business Impact: Provides robust mechanical integrity in compact form, simplifying stocking and handling. Application: Original equipment and panel builders seeking reliable, easy to source protection. Feature: Compatibility with standard blade fuse holders in the ATM family. Business Impact: Faster installation and straightforward swaps during maintenance, lowering total cost of ownership. Application: Retrofit projects and new builds across automation installations.
Get a Quick Quote for a Eaton BP/ATM-5ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BP/ATM-5ID?
Enquire Now
FAQs
The BP ATM five ID fuse is designed for compatible ATM blade fuse holders, ensuring straightforward installation and quick swaps during maintenance. Its blade end geometry aligns with standard ATM slots, allowing reliable seating and consistent contact pressure in panel assemblies and control cabinets.
This fuse provides a thirty two volt direct current rating and a five ampere current limit with a one kiloampere interrupt rating. That combination delivers targeted protection for low voltage DC control circuits while tolerating normal startup surges, reducing nuisance trips and guarding sensitive electronics such as relays and controllers.
Yes, the BP ATM five ID fuse is RoHS compliant, helping ensure compliance with environmental and material restrictions in many regions. Its electrical ratings and standard packaging support industrial deployments where material traceability, safety, and reliable performance are required in automated environments.
The tan color code provides rapid visual identification, speeding up wiring checks and replacement tasks in crowded panels. Combined with the easyID blade fuse design, technicians can quickly verify the correct part and minimize downtime during routine maintenance or after fault events.
Using the BP ATM five ID fuse can reduce maintenance time through fast identification and easy replacement, lowering labor costs. Its robust DC protection and reliable interrupt rating help prevent equipment damage, lead to fewer unplanned outages, and extend component life in automated control systems.
