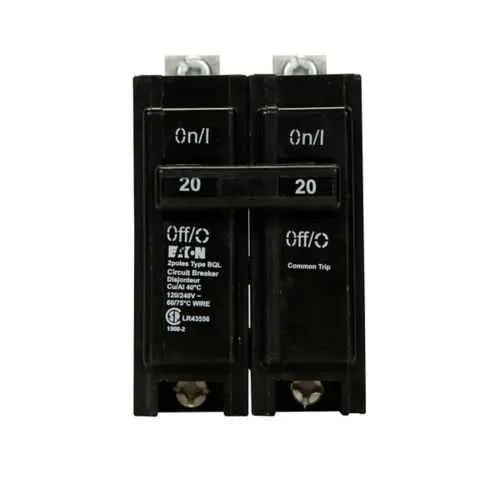

Eaton BQL220 thermal magnetic circuit breaker - 10 kAIC
Part Number: BQL220
Quick Summary
The BQL220 thermal magnetic circuit breaker protects electrical panels by interrupting fault currents. In demanding environments, nuisance trips, improper sizing, or difficult retrofits can drive downtime and maintenance costs. The unit offers HACR-rated protection for safer, code-compliant operation and supports 120/240 V systems with a 20 A rating and 10 kAIC interrupt capability. Designed for bolt-on, classic replacement in legacy BAB/BQL installations, it enables quick swaps without panel rewiring. With Cu/Al #14-8 wire compatibility and Eaton’s proven reliability, this breaker delivers dependable circuit protection, streamlined maintenance, and long-term operational efficiency for critical electrical protection tasks.
Product Information
Extended Description
BQL220 Eaton: BQL Classic Replacement Circuit Breakers, Bolt-on, 20A, #14-8 AWG, Cu/Al, Two-pole, 10 kAIC at 120/240V
Product Name
Eaton BAB thermal magnetic circuit breaker
Catalog Number
BQL220
UPC
622588005637
Product Length/Depth
5 in
Product Height
2 in
Product Width
3 in
Product Weight
0.5 lb
Compliances
HACR Rated
Circuit breaker type
BQL
Number of poles
Two-pole
Type
Classic replacement circuit breaker
Wire size
#14-8 AWG Cu/Al
Amperage Rating
20 A
Interrupt rating
10 kAIC at 120/240 Vac
Voltage rating
120/240 V
Feature: Bolt-on, classic replacement design for legacy BAB/BQL installations. Business Impact: Enables quick retrofits with minimal downtime and no major panel rewiring. Application: Ideal for upgrading aging protection in industrial control panels while preserving existing footprint. Feature: 20 A amperage rating for branch-circuit protection. Business Impact: Reduces risk of heat damage and nuisance trips, supporting safer equipment operation. Application: Suitable for control circuits and lighting feeders in commercial facilities. Feature: Two-pole construction for 120/240 V systems. Business Impact: Properly handles multi-wire circuits, improving fault isolation and safety. Application: Widely used in motor control and general panel protection. Feature: 10 kAIC interrupt rating at 120/240 V. Business Impact: High fault-current capability minimizes damage during short-circuits, lowering downstream repair costs. Application: Critical in high-energy environments such as manufacturing lines. Feature: Wire size compatibility #14-8 AWG Cu/Al. Business Impact: Flexible installation with common wiring options reduces inventory complexity. Application: Supports standard 14– awg feeders in retrofit scenarios. Feature: HACR-rated protection. Business Impact: Meets energy efficiency and building-code requirements, simplifying compliance. Application: Ideal where HACR compliance is mandatory in commercial installations. Feature: Compact 5 x 3 x 2 in footprint and 0.5 lb weight. Business Impact: Easy handling and fast replacement in crowded panels. Application: Retrofit projects with limited space. Feature: Durable bolt-on mounting and compatibility with BQL family. Business Impact: Streamlines maintenance programs and stock management. Application: Replacements and upgrades across Eaton’s BQL line.
Get a Quick Quote for a Eaton BQL220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BQL220?
Enquire Now
FAQs
Yes. The BQL220 is a bolt-on classic replacement designed to retrofit legacy BAB/BQL installations. It accepts Cu/Al wire up to #14-8 AWG and fits standard two-pole mounting footprints, allowing a straightforward swap without rewiring the panel. This minimizes downtime and preserves original electrical architecture while restoring protective functionality.
The BQL220 is a 20 A two-pole circuit breaker rated for 120/240 V with a 10 kAIC interrupt capacity. It supports Cu/Al wire sizes #14-8 AWG and carries HACR-rated protection. Its compact 5 in by 3 in by 2 in form factor and 0.5 lb weight facilitate easy handling and panel integration.
Industrial control panels, commercial equipment enclosures, and legacy electrical installations requiring reliable bolt-on protection benefit the most. The two-pole design suits multi-wire circuits, while the 10 kAIC interrupt rating provides robust fault handling in higher-energy environments, reducing downstream damage and maintenance costs over the equipment lifecycle.
The BQL220 carries HACR-rated protection, aligning with common building and electrical safety guidelines for reducing heat-related faults. While designed for reliable protection in 120/240 V circuits, users should verify site-specific regulatory requirements and follow manufacturer mounting and wiring instructions to ensure full compliance in their installation.
The BQL220 supports rapid retrofits with minimal panel disruption, reducing downtime costs during replacement. Its durable bolt-on design and high interrupt rating improve fault resilience, lowering repair frequency. Over the life of the system, consistent protection and straightforward sourcing of Cu/Al wiring parts contribute to a favorable return on investment.
