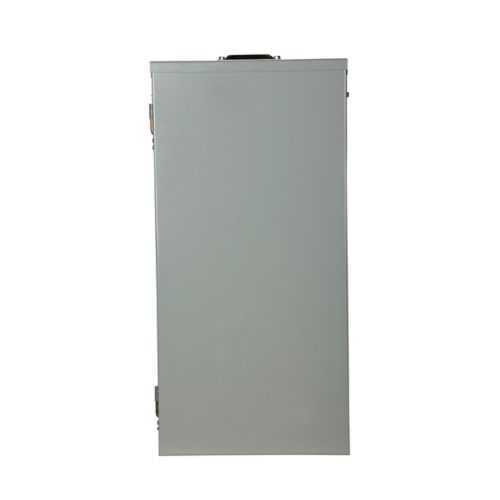

Eaton BR2040PV200 Loadcenter - 70 max PV, NEMA 1
Part Number: BR2040PV200
Quick Summary
The Eaton BR2040PV200 loadcenter is a solar-ready panel solution for commercial PV installations. Engineers often face integration challenges when wiring PV strings to the main breaker, risking downtime and misconfigurations. This unit is NEC compliant and ships in a NEMA 1 enclosure, with a copper bus and a 200 A main breaker, offering robust protection and long-term reliability. With 40 circuits and 20 spaces, it supports scalable distribution while simplifying field wiring and maintenance, driving faster project execution and lower total cost of ownership. For spec-driven buyers, its 225 A bus rating and 70 max PV input ensure compatibility with common PV arrays.
Product Information
Extended Description
BR2040PV200 Eaton: Eaton BR solar-ready loadcenter,Type BR loadcenter,D1,Copper,225,Ampere,Cover included,NEMA 1,70 max PV,35 kAIC,200 A type CSR,40 Circuits,20 Spaces
Product Name
Eaton BR solar-ready loadcenter
Catalog Number
BR2040PV200
UPC
786685708249
Product Length/Depth
3.88 in
Product Height
29.13 in
Product Width
14.31 in
Product Weight
25 lb
Warranty
10 year limited
Compliances
NEC Compliant
Catalog Notes
Rainproof panels are furnished with hub closure plates. Type CSR main breaker factory installed.
Type
Type BR loadcenter
Bus material
Copper
Bus Rating
225 A
Cover
Cover included
Main circuit breaker
200A type CSR
Number of circuits
40
Number of spaces
20
Box size
D1
Enclosure
NEMA 1
Input
70 max PV
Interrupt rating
35 kAIC
Feature: Solar-ready BR loadcenter with 70 max PV input and a 200 A CSR main breaker. Business Impact: Enables seamless PV integration without adding external equipment, reducing installation time and risk. Application: Ideal for rooftop or carport solar arrays in commercial facilities. Feature: Copper bus with a 225 A rating. Business Impact: Improves electrical conductivity and reduces line losses for better overall system efficiency. Application: Heavy-load environments and long-term reliability for data centers and manufacturing plants. Feature: NEMA 1 enclosure with included rainproof panels and hub closure plates. Business Impact: Provides durable indoor protection and faster, compliant field installation. Application: Indoor electrical rooms and protected industrial spaces. Feature: Factory-installed CSR main breaker and 40 circuits across 20 spaces. Business Impact: Simplifies wiring topology, accelerates panel fill planning, and minimizes field configuration errors. Application: Standardized distribution in mixed-use facilities. Feature: 10-year limited warranty and NEC compliance. Business Impact: Lower total cost of ownership and risk, with documented support for mission-critical applications. Application: Engineering projects demanding reliable service life and regulatory alignment.
Get a Quick Quote for a Eaton BR2040PV200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR2040PV200?
Enquire Now
FAQs
BR2040PV200 is a Type BR loadcenter designed for a 225 A bus rating and a 200 A CSR main breaker, with 40 circuits and 20 spaces. It ships with hub closure plates and rainproof panels, ensuring straightforward field wiring, a compatible enclosure, and minimal interface work when upgrading an existing distribution scheme.
The loadcenter supports up to 70 max PV input, a 35 kAIC interrupt rating, and copper bus rated at 225 A. With 40 circuits across 20 spaces and a factory-installed CSR main breaker, it provides robust protection for solar-integrated electrical distributions in demanding environments.
Yes. The 70 max PV input capability, NEC compliance, NEMA 1 enclosure, and solar-ready design make BR2040PV200 ideal for rooftop and carport PV applications in commercial facilities, enabling reliable code-compliant distribution while simplifying installation and future expansion.
The unit is NEC compliant and features a NEMA 1 enclosure, ensuring indoor protection and alignment with common electrical infrastructure standards. The catalog notes also indicate rainproof panels with hub closure plates and a factory-installed main breaker for streamlined compliance.
The BR2040PV200 carries a 10-year limited warranty, supporting long-term reliability and reduced maintenance risk. Combined with its copper bus, large circuit capacity, and ready PV integration, it delivers favorable total cost of ownership and faster, predictable project ROI for commercial installations.
