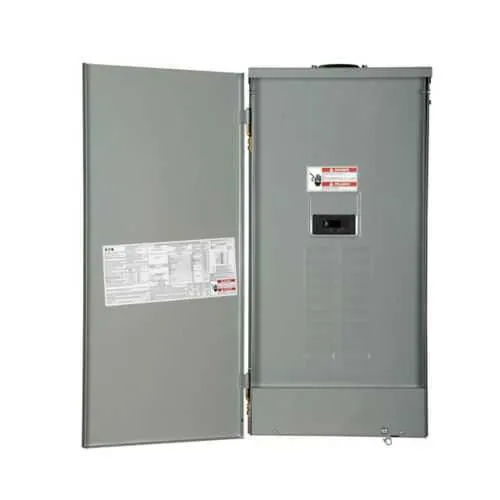

Eaton BR2040PV200R Loadcenter - NEMA 3R, 70 PV Max
Part Number: BR2040PV200R
Quick Summary
The Eaton BR2040PV200R loadcenter is a solar-ready distribution solution ideal for commercial and light-industrial applications. It addresses the challenge of integrating PV with standard electrical protections while minimizing field wiring and downtime. This unit is NEC compliant and housed in a weather-resistant NEMA 3R enclosure, with a factory-installed 200 A CSR main breaker for reliability. Built to support 40 circuits and 20 spaces, it also leverages a copper bus rated for robust performance. By combining outdoor-ready design with high-capacity protection, this loadcenter helps engineers and procurement teams reduce installation time and total cost of ownership while maintaining code compliance and serviceability.
Product Information
Extended Description
BR2040PV200R Eaton: Eaton BR solar-ready loadcenter,Type BR loadcenter,D1R,Copper,225,Ampere,Cover included,NEMA 3R,70 max PV,35 kAIC,200 A type CSR,40 Circuits,20 Spaces
Product Name
Eaton BR solar-ready loadcenter
Catalog Number
BR2040PV200R
UPC
786685708256
Product Length/Depth
5.19 in
Product Height
29.13 in
Product Width
14.31 in
Product Weight
30 lb
Warranty
10 year limited
Compliances
NEC Compliant
Catalog Notes
Rainproof panels are furnished with hub closure plates. Type CSR main breaker factory installed.
Type
Type BR loadcenter
Bus material
Copper
Bus Rating
225 A
Cover
Cover included
Main circuit breaker
200A type CSR
Number of circuits
40
Number of spaces
20
Box size
D1R
Enclosure
NEMA 3R
Input
70 max PV
Interrupt rating
35 kAIC
Feature → Business Impact → Application: Solar-ready design with 70 max PV input and a 200 A CSR main breaker enables seamless PV interconnection without additional enclosure modifications, reducing install time and potential points of failure in outdoor sites. Practical application includes roof-mounted or ground-mounted PV arrays at commercial facilities, where reliable utility tie-in and safe distribution are critical. Feature → Copper bus rated at 225 A minimizes voltage drop and supports high fault-clearing performance, delivering improved system efficiency and long-term reliability for feeders and branch circuits in industrial environments. Application spans mixed-use facilities requiring consistent supply during PV operations and grid events. Feature → NEMA 3R enclosure with rainproof panels and hub closure plates provides outdoor durability and weather resistance, reducing corrosion risk and maintenance while complying with NEC requirements in exposed installations. Application covers outdoor electrical rooms and weather-exposed installations in harsh climates. Feature → 40 circuits and 20 spaces within a BR loadcenter design offers scalable distribution for growing solar and load needs, supporting phased system expansion with minimal hardware changes. Application includes facilities planning multi-string PV deployments and future electrical upsizing. Feature → 10-year warranty and NEC compliance give operators confidence in lifecycle cost, serviceability, and regulatory alignment, translating to lower maintenance costs and improved ROI for facility owners and operators.
