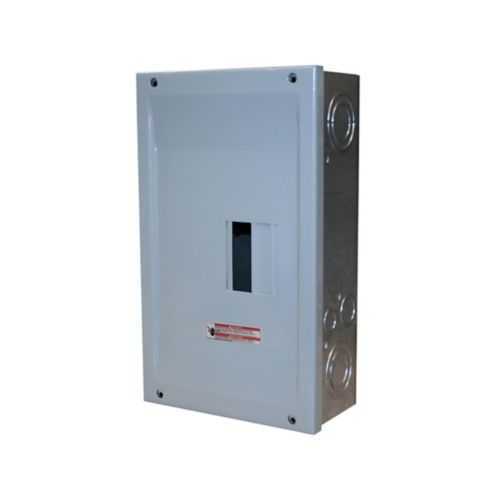

Eaton BR24L125FP Main Lug Loadcenter - UL 67, 10 kAIC
Part Number: BR24L125FP
Quick Summary
Eaton BR24L125FP main lug loadcenter is a compact power distribution solution for small residential and light commercial panels. Engineers often struggle with fitting service equipment into tight spaces while maintaining code compliance and future expandability. This BR loadcenter carries UL 67 and UL 50 certifications, a NEMA 1 metallic enclosure, and a 10 kAIC interrupt rating. Using Type BR 1-inch breakers and 120/240 V capabilities, it supports rapid deployment with copper or aluminum conductors. For procurement and maintenance teams, this design translates into predictable lead times, broad compatibility, and a strong warranty. Its ground bar kit is priced separately for flexible grounding.
Product Information
Extended Description
BR24L125FP Eaton: Eaton BR main lug loadcenter,Current design,Main lug,125 A,6,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,Flush,4 Circuits,2 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240 V,#14-1/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR24L125FP
UPC
786676002264
Product Length/Depth
3.88 in
Product Height
27 in
Product Width
14.31 in
Product Weight
6.7 lb
Warranty
10 year
Certifications
UL 67 UL 50
Catalog Notes
Ground bar kit priced separately. Suitable for use as service equipment when no more than 2 service disconnecting mains are provided or when not used as lighting & appliance panelboard
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover not included
Mounting
Flush
Number of circuits
4
Number Of Poles
Four-pole
Number of spaces
2
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240 V
Wire size
#14-1/0 AWG Cu/Al
Box size
6
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR24L125FP
Eaton type BR circuit breaker limited warranty June 2024
Feature: 125 A amperage rating and 2-space, 4-circuit configuration provide a compact footprint for service equipment. Business impact: maximizes panel density while preserving service disconnect capacity and ease of future expansion. Application: ideal for tight 2-service-entry environments in residential or small commercial projects. Feature: Aluminum bus material combined with a metallic NEMA 1 enclosure improves durability and electrical performance. Business impact: reduces thermal rise during fault conditions and extends equipment life in indoor dry spaces. Application: indoor installations with reliable, long-term operation. Feature: 10 kAIC interrupt rating and UL 67/UL 50 certifications offer proven safety and compliance. Business impact: lowers project risk and simplifies inspection processes. Application: code-compliant installations in regulated markets. Feature: Cover not included and ground bar kit sold separately enhance customization. Business impact: allows tailored panel configurations and cost-controlled accessory purchases. Application: flexible installation planning and budgeting for service equipment. Feature: Compatibility with Type BR 1-inch breakers and support for #14-1/0 AWG Cu/Al wires. Business impact: streamlines procurement and wiring, reducing labor time. Application: common wiring scenarios in new builds and renovations. Feature: 125 A rating paired with 120/240 V operation supports both lighting and appliance circuits in a compact panel. Business impact: consolidates distribution while maintaining versatility. Application: compact distribution centers in light commercial spaces. Feature: 10 year warranty provides long-term protection and predictable maintenance costs. Business impact: lowers total cost of ownership and supports asset management programs. Application: procurement strategies emphasizing lifecycle value.
