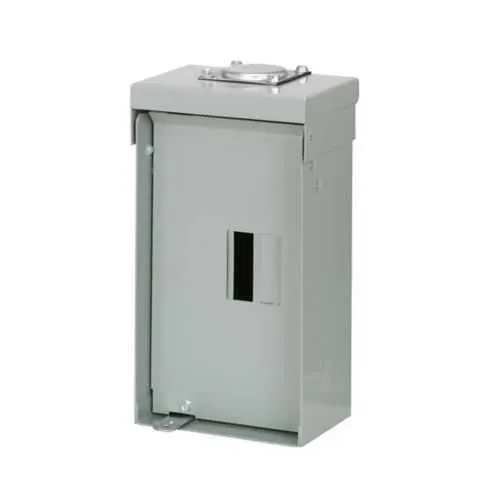

Eaton BR24L125RSEP Loadcenter - UL 67/UL 50
Part Number: BR24L125RSEP
Quick Summary
The Eaton BR24L125RSEP loadcenter provides compact main lug service in 120/240 V systems for small commercial or residential panels. Many installations struggle with space constraints, wiring flexibility, and ensuring compliant terminations in limited panel footprints. Certified to UL 67 and UL 50, with a NEMA 3R metallic enclosure and a 10 kAIC rating, it stands up to demanding environments. Designed for service equipment use with Type BR 1-inch breakers and a 125 A main lug, this unit accelerates commissioning and supports scalable electrical layouts for small facilities. Its lightweight aluminum bus and included cover simplify installation and help reduce field errors.
Product Information
Extended Description
BR24L125RSEP Eaton: Eaton BR main lug loadcenter,Current design, Neutral/ground holes (6) #14–6 and (3) #14–1/0 AWG Cu/Al,Main lug,125 A,6R,Aluminum,Cover included,NEMA 3R,Metallic,10 kAIC,4 Circuits,2 Spaces,Three-wire,Single-phase,120/240 V
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR24L125RSEP
UPC
786676008433
Product Length/Depth
3.88 in
Product Height
21 in
Product Width
14.31 in
Product Weight
5 lb
Warranty
10 year
Certifications
UL 67 UL 50
Catalog Notes
Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard.
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
4
Number Of Poles
Four-pole
Number of spaces
2
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240 V
Wire size
#14-1/0 AWG Cu/Al
Box size
6R
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR24L125RSEP
Eaton type BR circuit breaker limited warranty June 2024
125 A main lug with four circuits and two spaces delivers a compact service solution for limited-wall installations. This configuration minimizes footprint while meeting basic load requirements for light commercial or residential applications. Aluminum bus material reduces weight for easier handling and installation, while maintaining reliable conductivity and lasting durability in challenging environments. A NEMA 3R metallic enclosure provides outdoor and protected-space versatility, ensuring reliability in harsh conditions without compromising accessibility. The included cover minimizes field labor and protectsTerminations, enabling faster, code-compliant installations with fewer parts to source. Wiring flexibility is enhanced by support for #14-1/0 AWG Cu/Al and 120/240 V single-phase service, simplifying routing in tight spaces. The 10 kAIC interrupt rating offers robust fault protection, improving safety margins during surge and short-circuit events. Compatibility with Type BR 1-inch breakers ensures a familiar, widely-supported modernization path for panel upgrades and service upgrades. UL 67 and UL 50 listings reinforce compliance and reliability, while the two-space, four-circuit configuration supports scalable layouts for evolving facility needs.
