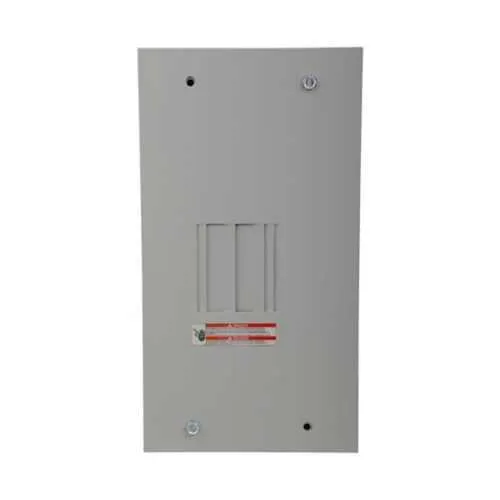

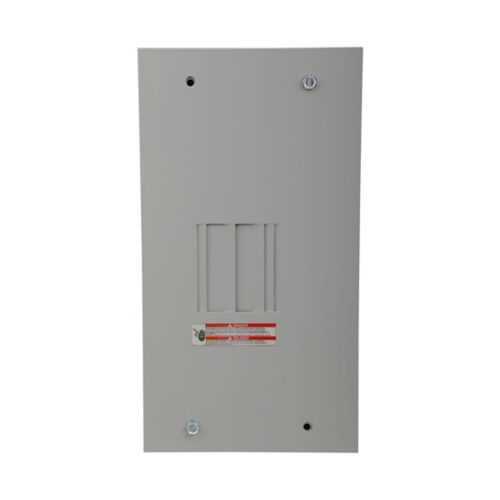

Eaton BR24L70FGP Main Lug Loadcenter - UL 50 UL 67
Part Number: BR24L70FGP
Quick Summary
Eaton BR main lug loadcenter is a compact power distribution solution designed for service equipment and small commercial panels. Space constraints, wiring complexity, and evolving code requirements often slow panel upgrades and drive project costs. This BR unit carries UL 50 and UL 67 certification with a rugged NEMA 1 enclosure, helping you meet safety and installation standards. With 4 circuits, 70 A capacity, and compatibility with Type BR 1-inch breakers, it supports scalable, code-compliant distribution. This translates to faster installs, lower rework, and clearer procurement for electrical contractors and facility managers. Additionally, the ground bar gbk10 is installed for quick grounding and compliance.
Product Information
Extended Description
BR24L70FGP Eaton: Eaton BR main lug loadcenter,Ground bar, current design,Main lug,70 A,5,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Flush,4 Circuits,2 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240 V,#8-2 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR24L70FGP
UPC
786676001939
Product Length/Depth
3.88 in
Product Height
23 in
Product Width
14.31 in
Product Weight
3.5 lb
Warranty
10 year
Certifications
UL 50 UL 67
Catalog Notes
Ground bar gbk10 is installed. Suitable for use as service equipment when no more than 2 service disconnecting mains are provided or when not used as lighting & appliance panelboard
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
70 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
4
Number Of Poles
Four-pole
Number of spaces
2
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240 V
Wire size
#8-2 AWG Cu/Al
Box size
5
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR24L70FGP
Eaton type BR circuit breaker limited warranty June 2024
Feature: 70 A main lug design with four circuits in two spaces and flush mounting. Business impact: Delivers higher current capacity in a compact footprint, reduces panel footprint, and leverages aluminum bus for efficient heat dissipation. Application: Ideal for service panels in space-limited facilities and light commercial installations. Feature: Ground bar gbk10 installed. Business impact: Streamlines grounding procedures, speeds up installation, and ensures a solid, code-compliant ground path. Application: Critical grounding in service equipment and retrofit projects. Feature: 120/240 V single-phase operation and compatibility with Type BR 1-inch breakers. Business impact: Simplifies replacement, reduces inventory needs, and supports straightforward upgrades. Application: Residential feeders and small retail panels. Feature: NEMA 1 metallic enclosure. Business impact: Indoor-protective housing that resists dust and incidental moisture, lowering maintenance costs. Application: Indoor wiring closets, basements, and controlled environments. Feature: 10 kAIC interrupt rating. Business impact: Enhanced fault current handling minimizes damage to downstream devices and improves safety margins. Application: Commercial and light industrial installations with moderate fault potential.
Get a Quick Quote for a Eaton BR24L70FGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR24L70FGP?
Enquire Now
FAQs
Yes. BR24L70FGP is a single-phase main lug loadcenter designed for 120/240 V systems and it accepts Type BR 1-inch breakers. It provides four circuits across two spaces, uses an aluminum bus, and includes a ground bar gbk10 installed for proper grounding. Note that the enclosure cover is sold separately.
Key specs include a 70 A amperage rating, aluminum bus material, 120/240 V voltage rating, 4 circuits, 2 spaces, NEMA 1 metallic enclosure, and a 10 kAIC interrupt rating. It is designed for flush mounting and uses a ground bar gbk10. This combination supports reliable service equipment distribution in compact spaces.
Yes. The catalog notes indicate it is suitable for service equipment when no more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Its UL 50/UL 67 certifications and NEMA 1 enclosure further support code-compliant service applications in appropriate indoor environments.
This loadcenter carries UL 50 and UL 67 certifications, ensuring safety and compliance. It uses a NEMA 1 metallic enclosure for indoor protection and includes a factory-installed ground bar gbk10. A 10-year warranty is noted in the general specifications, which adds long-term confidence for maintenance planning.
Installation benefits include a compact 2-space, 4-circuit footprint with flush mounting and aluminum bus for efficient heat dissipation, enabling faster field installs. Grounding is streamlined by the gbk10 bar, reducing rework. ROI is improved through space savings, easier upgrades to BR breakers, and reduced inventory due to standard BR compatibility.
