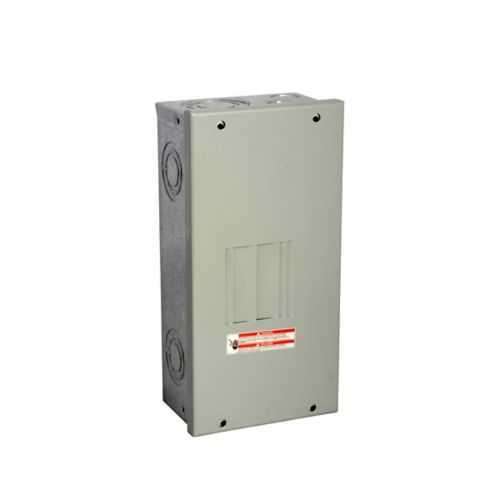

Eaton BR24L70SGP Main Lug Loadcenter - 10 kAIC
Part Number: BR24L70SGP
Quick Summary
BR24L70SGP is a main lug loadcenter that distributes power to four circuits in light-commercial panels. When space is tight, installers face challenges with conductor termination, grounding, and meeting fault-current requirements. This unit carries UL 67 and UL 50 listings and uses a rugged metallic NEMA 1 enclosure, supporting compliant indoor service equipment. Designed for BR 1-inch breakers and a 70 A rating, it speeds panel upgrades while reducing wiring complexity. For procurement and maintenance teams, Eaton backs this loadcenter with a 10-year warranty, a ground bar GBK10 already installed, and a clear installation footprint that simplifies service planning in commercial installations nationwide.
Product Information
Extended Description
BR24L70SGP Eaton: Eaton BR main lug loadcenter,Ground bar, current design,Main lug,70 A,5,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Surface,4 Circuits,2 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240 V,#8-2 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR24L70SGP
UPC
786676001946
Product Length/Depth
3.88 in
Product Height
23 in
Product Width
14.31 in
Product Weight
4 lb
Warranty
10 year
Certifications
UL 67 UL 50
Catalog Notes
Ground bar gbk10 is installed. Suitable for use as service equipment when no more than 2 service disconnecting mains are provided or when not used as lighting & appliance panelboard
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
70 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
4
Number Of Poles
Four-pole
Number of spaces
2
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240 V
Wire size
#8-2 AWG Cu/Al
Box size
5
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR24L70SGP
Eaton type BR circuit breaker limited warranty June 2024
Ground bar GBK10 installed is a foundational feature that accelerates safe grounding, reduces field labor, and improves fault protection for indoor service panels. The business impact is faster commissioning and fewer field errors, making it ideal for light-commercial installations that demand reliability and compliance with code requirements. The BR24L70SGP is compatible with BR 1-inch breakers, enabling seamless integration with existing BR-based panels and minimizing stocking complexity for contractors. The 70 A rating supports common small-business loads while preserving headroom for future expansion, and the aluminum bus delivers lightweight durability without compromising conductivity. The enclosure is a NEMA 1 metallic type, surface-mounted for straightforward installation, and the 10 kAIC interrupt rating provides robust protection for typical office, retail, and workshop systems. The included ground bar and modular design reduce maintenance overhead and simplify future upgrades. This combination also supports easy retrofits in service entrances and compatibility with standard electrical codes across regions.
Get a Quick Quote for a Eaton BR24L70SGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR24L70SGP?
Enquire Now
FAQs
When planning installation, verify the surface-mounted footprint fits the intended enclosure space and confirm indoor indoor service equipment use. The BR24L70SGP ships with GBK10 ground bar installed, supports #8-2 AWG Cu/Al wiring, and is designed for BR 1-inch breakers. Ensure access to a suitable panel location, proper grounding practices, and compliance with UL 67/UL 50 requirements for safer, code-compliant operation.
BR24L70SGP is a 70 A, single-phase main lug loadcenter rated for 120/240 V. It features an aluminum bus, 4 circuits, 2 spaces, and a 10 kAIC interrupt rating. It accepts Type BR 1-inch breakers and uses a NEMA 1 metallic enclosure with a ground bar GBK10 installed, while the cover is not included, allowing user-selected cover kits.
Yes, BR24L70SGP can serve as service equipment when no more than two service disconnecting mains are provided, and it is not used as a lighting and appliance panelboard. The combination of UL listings, NEMA 1 enclosure, and 70 A capacity supports service equipment needs in compliant indoor installations with limited disconnects.
The unit carries UL 67 and UL 50 listings, ensuring compliance with established electrical safety standards. It comes in a metallic NEMA 1 enclosure suitable for indoor use, with GBK10 ground bar installed. These features collectively support safe operation, grounding integrity, and reliable performance in typical commercial environments.
The 10-year warranty signals long-term reliability and lowers lifecycle risk, while the GBK10 ground bar and BR compatibility reduce maintenance labor and spare-part variety. Its compact, lightweight aluminum bus design accelerates installation, lowers field labor costs, and simplifies future expansions or panel upgrades, delivering favorable total cost of ownership for light-commercial projects.
