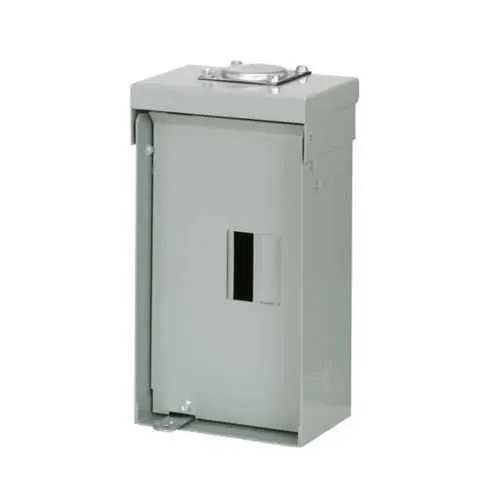

Eaton BR2L125RP Main Lug Loadcenter - NEMA 3R
Part Number: BR2L125RP
Quick Summary
The Eaton BR2L125RP main lug loadcenter distributes 120/240 V for compact industrial panels. It fits in tight spaces and provides reliable service equipment in outdoor or rain-prone environments. UL 50/UL 67 listings, a NEMA 3R enclosure, and a 10 kAIC interrupt rating ensure code compliance and fault tolerance. Engineered for field reliability, it supports 125 A with aluminum bus and a covered, 2-space/4-circuit layout, helping installers meet project timelines and stay compliant. Designed for easy installation with standard BR-type breakers and a ground-bar option. This combination reduces lifecycle costs by simplifying maintenance and future upgrades. Ideal for service equipment in small facilities and retrofit projects where space and protection matter.
Product Information
Extended Description
BR2L125RP Eaton: Eaton BR main lug loadcenter,Rainproof, furnished with hub closure plates,Main lug,125 A,6R,Aluminum,Cover included,NEMA 3R,Metallic,10 kAIC,2 Spaces,4 Circuits,Three-wire,Single-phase
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR2L125RP
UPC
786689339418
Product Length/Depth
9.5 in
Product Height
3.3 in
Product Width
4.5 in
Product Weight
6.5 lb
Certifications
UL 50 UL 67
Catalog Notes
Ground bar kit priced separately. Suitable for use as service equipment when no more than 2 service disconnecting mains are provided or when not used as lighting & appliance panelboard
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
4
Number of spaces
2
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240 V
Wire size
#14-1/0 AWG Cu/Al
Box size
6R
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
The BR2L125RP delivers 125 A through an aluminum bus, enabling a compact two-space, four-circuit arrangement that reduces panel count and wiring complexity. This translates to faster installs, lower material costs, and easier future expansions in light commercial and industrial applications. The 9.5 in depth and 4.5 in width provide a predictable footprint for plan reviews and on-site fitting, supporting efficient field work and less site disruption. A cover is included, safeguarding internal components and reducing risk during maintenance or re-configuration while maintaining a clean, professional enclosure at the point of use. The NEMA 3R metallic enclosure, designed for rainproof protection, extends serviceability to outdoor or semi-exposed locations, improving uptime in facilities with outdoor feeders. With UL 50 and UL 67 listings and a 10 kAIC interrupt rating, this BR loadcenter offers robust fault tolerance and regulatory confidence for service equipment. BR-type 1-inch breakers are compatible, ensuring a familiar, streamlined upgrade path for existing panels. Ground-bar kit is priced separately, enabling tailored grounding options for site-specific grounding strategies. Weight, materials, and enclosure integrity are optimized for installers handling frequent field replacements and retrofits, delivering reliable performance in constrained spaces. Effective for small facilities, campuses, and retrofit projects where space savings and weather protection matter. The product’s 125 A rating, combined with a 120/240 V supply and a metallic enclosure, supports practical, code-compliant distribution for a wide range of industrial loads.
Get a Quick Quote for a Eaton BR2L125RP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR2L125RP?
Enquire Now
FAQs
Yes. The BR2L125RP is designed for use with BR-type 1-inch breakers, providing a straightforward upgrade path for BR-series panels. This compatibility supports consistent breaker sizing and simplified wiring while maintaining the panel’s 125 A rating and 120/240 V operation. Ensure the installed ground bar kit options align with your grounding strategy.
The BR2L125RP features a 10 kAIC interrupt rating and a NEMA 3R metallic enclosure. This combination delivers reliable fault tolerance in both indoor and outdoor environments, including rain-prone locations. The UL 50 and UL 67 certifications further confirm suitability for service equipment and panelboard use under typical industrial conditions.
Yes, per Eaton’s catalog notes, the BR2L125RP can function as service equipment when no more than two service disconnecting mains are used or when not employed as a lighting and appliance panelboard. Its 125 A rating and appropriate enclosure help meet space constraints while delivering essential service disconnect functionality and protection for small facilities.
The BR2L125RP is UL listed to UL 50 and UL 67 and uses a NEMA 3R metallic enclosure. These certifications verify safe enclosure construction, reliability under electrical load, and suitability for rainproof service equipment. They also support compliance with regional electrical codes and provide confidence during audits and inspections.
Key considerations include using the cover included with the unit for protection, selecting the ground-bar kit if grounding customization is needed, and planning for BR-type 1-inch breakers to minimize replacement costs. The compact footprint, aluminum bus, and lightweight design simplify transport and installation, reducing labor hours and enabling faster project throughput with predictable lifecycle costs.
