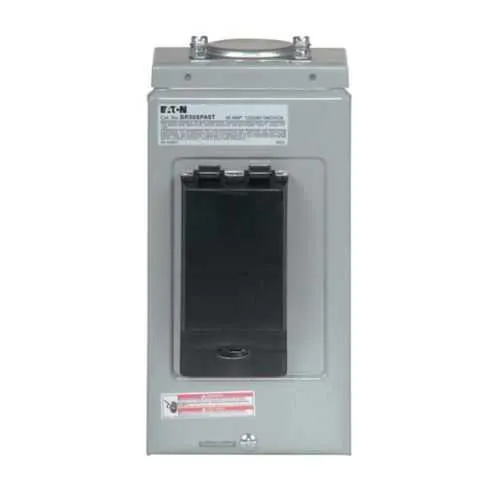

Eaton BR40SPAST BR spa panel - UL Listed, 40A
Part Number: BR40SPAST
Quick Summary
BR spa panel from Eaton provides compact, code-compliant spa power distribution with a factory-installed breaker. This design helps installers deliver safe, weatherproof power to outdoor spa and hot tub equipment without lengthy field wiring. It carries UL Listed status and NEC 680.40–680.43 compliance, and features a NEMA 3R enclosure suitable for exposed outdoor environments. The solution also emphasizes reliability with a 10-year warranty and industry-standard components, aligning with the BR family and Eaton service ecosystems. By simplifying wiring for #8-2 Cu/Al and integrating essential protection, it supports faster project turns and lower lifecycle costs for engineers, contractors, and facility owners.
Product Information
Extended Description
BR40SPAST Eaton: Eaton BR spa panel, Includes factory installed breaker, 40 A, #8-2 Cu/Al 60°C or 75°C, 5R box, NEMA 3R enclosure, Two-pole, ground fault self-test feature
Product Name
Eaton BR spa panel
Catalog Number
BR40SPAST
UPC
786685969916
Product Length/Depth
10.9 in
Product Height
4.4 in
Product Width
4.9 in
Product Weight
4.9 lb
Warranty
10 year
Compliances
NEC 680.40-680.43
Certifications
UL Listed
Catalog Notes
Includes a GFCB240 breaker, factory installed, ground fault self-test
Type
BR spa panel
Amperage Rating
40A
Number Of Poles
Two-pole
Wire size
#8-2 AWG Cu/Al
Box size
5R
Enclosure
NEMA 3R
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR40SPAST
Factory-installed GFCB240 breaker with ground fault self-test provides immediate fault protection, reducing on-site wiring and commissioning time while improving safety for spa users. This design translates to lower field labor costs and faster startup for outdoor installations where water exposure increases risk. 40A two-pole configuration supports common spa feeder requirements, with #8-2 Cu/Al conductors enabling straightforward wiring within code limits and minimizing conductor waste. The enclosed 5R NEMA 3R box delivers rugged outdoor durability, resisting weather, dust, and corrosion and ensuring reliable operation in variable environments. A compact enclosure footprint simplifies installation in tight spa alcoves or equipment rooms, helping contractors meet space constraints without sacrificing protection. UL Listed and NEC 680.40–680.43 compliance provide formal documentation for safety, inspection, and project approvals, while a 10-year warranty offers long-term value and predictable maintenance costs. Overall, the BR40SPAST integrates with Eaton BR load centers and circuit protection ecosystems to streamline design, installation, and service life for outdoor spa projects.
Get a Quick Quote for a Eaton BR40SPAST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR40SPAST?
Enquire Now
FAQs
BR40SPAST uses a 40A two-pole design and accepts #8-2 AWG Cu/Al conductors, enabling straightforward hookup for standard spa feeders. It arrives with a factory-installed GFCB240 breaker and a 5R NEMA 3R enclosure, designed for wall or knockout mounting in outdoor areas. Ensure proper clearances per NEC and secure proper grounding for reliable operation.
The GFCB240 breaker includes a ground fault self-test to verify protection continuously, helping prevent electric shock in wet spa environments. This reduces commissioning time and post-install safety checks, while meeting NEC 680 requirements for spa equipment. It also simplifies maintenance by providing clear GF fault indicators during inspection.
Yes. The BR40SPAST is built around a NEMA 3R enclosure with weather-resistant construction, making it appropriate for outdoor spa areas exposed to rain, dust, and temperature variations. Its compact footprint fits tight installations, and the factory-installed breaker reduces field wiring complexity, improving reliability in pool and spa environments.
The BR40SPAST is UL Listed and complies with NEC 680.40–680.43, ensuring code-compliant protection for spa circuits. This certification suite supports inspection readiness and safety certification across commercial and residential outdoor installations, backed by Eaton’s 10-year warranty for long-term reliability.
Choosing the BR40SPAST reduces field labor because the breaker is factory-installed and tested, shortening installation time and startup commissioning. The 10-year warranty reduces maintenance costs and downtime risk, while the robust NEMA 3R enclosure minimizes weather-related service needs—delivering predictable lifecycle cost savings for facility managers and electrical contractors.
