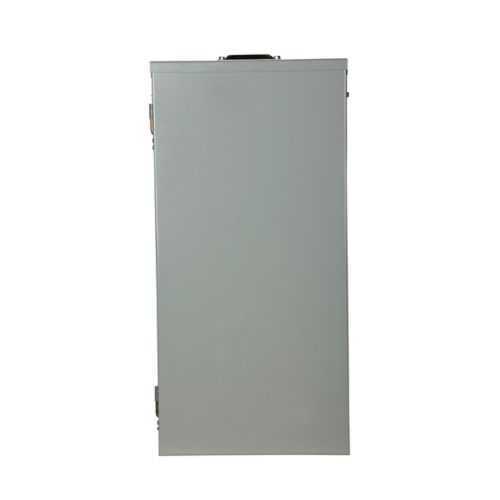

Eaton BR4242PV200R BR solar-ready loadcenter - NEMA 3R
Part Number: BR4242PV200R
Quick Summary
Eaton BR4242PV200R solar-ready loadcenter is designed for outdoor electrical distribution in commercial and industrial solar-ready installations. Facility teams often struggle with integrating PV inputs into legacy enclosures or meeting enclosure ratings during retrofit projects; this unit provides a turnkey solution. It is NEC compliant, ships with a NEMA 3R enclosure, and features copper bus rated 225 A with a factory-installed 200 A CSR main breaker, boosting reliability and simplifying installation. Designed to reduce field wiring and testing time, it supports 42 circuits and 42 spaces, making it a scalable choice for growing electrical protection needs in industrial facilities.
Product Information
Extended Description
BR4242PV200R Eaton: Eaton BR solar-ready loadcenter,Type BR loadcenter,L2R,Copper,225,Ampere,Cover included,NEMA 3R,70 max PV,35 kAIC,200 A type CSR,42 Circuits,42 Spaces
Product Name
Eaton BR solar-ready loadcenter
Catalog Number
BR4242PV200R
UPC
786685708270
Product Length/Depth
5.19 in
Product Height
45 in
Product Width
14.31 in
Product Weight
30 lb
Warranty
10 year limited
Compliances
NEC Compliant
Catalog Notes
Rainproof panels are furnished with hub closure plates. Type CSR main breaker factory installed.
Type
Type BR loadcenter
Bus material
Copper
Bus Rating
225 A
Cover
Cover included
Main circuit breaker
200A type CSR
Number of circuits
42
Number of spaces
42
Box size
L2R
Enclosure
NEMA 3R
Input
70 max PV
Interrupt rating
35 kAIC
Feature: Solar-ready design with 70 max PV input and a 225 A copper bus. Benefit: Enables seamless PV integration while supporting robust load distribution; Application: Outdoor commercial installations that require solar connections without expensive retrofits. Feature: 42 circuits and 42 spaces in a Type BR loadcenter with L2R box size. Benefit: High capacity in a compact footprint, reducing panel area and improving fault isolation in manufacturing plants. Application: New builds or retrofits needing expandable protection for multiple circuits and feeders. Feature: NEMA 3R enclosure with rainproof panels and hub closure plates. Benefit: Weather-resistant protection for outdoor installations, lowering maintenance and corrosion risk. Application: Outdoor service entrances and PV combiner points. Feature: 200 A CSR main breaker (factory installed) and 35 kAIC interrupt rating. Benefit: Immediate readiness for heavy-duty protection and quick field commissioning. Application: Critical power distribution in data centers, labs, and industrial facilities. Feature: 10-year limited warranty and NEC compliance. Benefit: Long-term reliability with regulatory assurance, reducing lifecycle cost and compliance risk. Application: Projects with strict uptime and documentation requirements.
Get a Quick Quote for a Eaton BR4242PV200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR4242PV200R?
Enquire Now
FAQs
BR4242PV200R is a Type BR loadcenter configured for outdoor use with a factory-installed 200 A CSR main breaker. It accepts 42 circuits and uses copper bus rated at 225 A, delivering seamless integration with Eaton BR and CSR components while minimizing field wiring and mis-match risk during upgrades or expansions.
This loadcenter excels in outdoor commercial and industrial solar-ready installations, especially where PV integration, NEC compliance, and weather protection are priorities. It supports 42 circuits across 42 spaces, with a NEMA 3R enclosure, making it ideal for solar-wired service entrances, outdoor switchgear rooms, and facility distribution hubs.
Plan for outdoor mounting with the NEMA 3R enclosure. The unit includes rainproof panels with hub closure plates and a cover, reducing field sealing challenges. Ensure PV input does not exceed 70 max PV and verify alignment with the 200 A CSR main breaker for proper space allocation and wiring routing in the 42-space frame.
Key ratings include a 225 A copper bus, 42 circuits/spaces, 70 max PV input, 35 kAIC interrupt rating, and a 200 A main breaker (CSR). These specs deliver robust protection for large loads and PV interfacing while maintaining compact footprint and reliable fault current handling in industrial environments.
Eaton backs BR4242PV200R with a 10-year limited warranty and NEC compliance, providing long-term protection and regulatory assurance. Routine maintenance focuses on door seals and enclosure cleanliness, with attention to any weather-related wear in outdoor installations to preserve the NEMA 3R performance.
