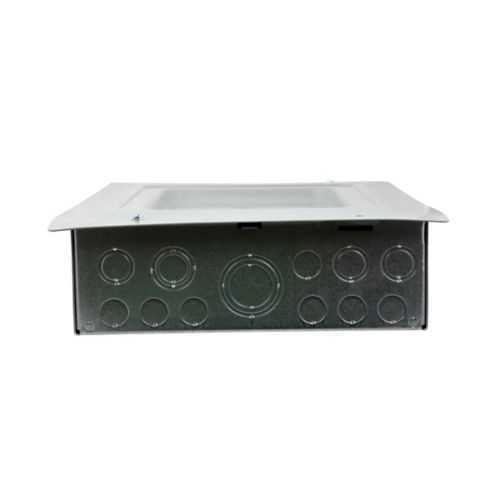

Eaton BR48L125FP Main Lug Loadcenter - UL 67, UL 50
Part Number: BR48L125FP
Quick Summary
Eaton BR48L125FP main lug loadcenter delivers compact, reliable power distribution for residential and light commercial panels. The design emphasizes space efficiency and straightforward wiring to minimize field labor and shorten installation timelines. No feed-thru lugs, a convertible main, and a 125 A rating address common challenges like future expansion, service upgrades, and panel retrofits. This enclosure carries UL 67 and UL 50 listings and uses a sturdy metallic NEMA 1 enclosure for indoor, dry locations. Practical benefits include an aluminum bus for weight savings and proven BR 1-inch breakers compatibility, translating to lower total cost of ownership and easier maintenance.
Product Information
Extended Description
BR48L125FP Eaton: Eaton Eaton BR main lug loadcenter ,No feed-thru lugs,Convertible main,200 A,L1,Aluminum,Cover included,NEMA 1,Metallic,25 kAIC,BWH,Combination,NEMA 1,42 Circuits,30 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR48L125FP
UPC
786676001717
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
9.1 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
8
Number Of Poles
Eight-pole
Number of spaces
4
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#14-1/0 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR48L125FP
Eaton type BR circuit breaker limited warranty June 2024
125 A main rating with 8 circuits across 4 spaces provides a compact yet capable service panel for small commercial applications, reducing upfront material and labor costs while supporting typical branch circuits. The business impact is faster installation and simpler future upgrades, especially when load growth occurs or service demands change in tight spaces. This configuration is ideal for residential service entrances or light commercial panels where 120/240 V single-phase power and BR 1-inch breakers are standard practice. Aluminum bus material delivers weight savings on transport and field handling, improving site safety and allowing easier field modifications without compromising conductivity. Aligned with a NEMA 1 metallic enclosure, the unit delivers reliable indoor protection from dust and incidental exposure, supporting cleaner electrical rooms and code-compliant installations. The BR48L125FP’s no feed-thru lugs and convertible main give installers a flexible path to future expansion or main-breaker upgrades without replacing the panel, reducing lifecycle costs. The 10 kAIC interrupt rating and compatibility with #14-1/0 AWG Cu/Al wiring cover typical distribution needs, while the 125 A rating matches common service feeders in small to mid-size facilities. This combination supports efficient procurement, standardized parts stocking, and predictable maintenance planning for facilities teams.
Get a Quick Quote for a Eaton BR48L125FP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR48L125FP?
Enquire Now
FAQs
This unit is designed for flush mounting in indoor dry locations with a NEMA 1 metallic enclosure. It supports 120/240V single-phase service and uses BR 1-inch breakers. Key considerations include ensuring a compatible panel location, proper gland and conduit entries, and confirming the convertible main option is configured for future expansion without replacing the enclosure.
Yes, the BR48L125FP is designed to accept Type BR 1-inch breakers. It accommodates wire sizes from #14 up to 1/0 AWG Cu or Al, enabling typical branch circuits and feeders within the 125 A service rating while maintaining appropriate conductor ampacity and safe clearance.
This loadcenter is well-suited for residential service panels and light commercial distribution where space is limited. Its 4-space, 8-circuit configuration, combined with a 125 A rating and 120/240 V operation, supports common circuits such as lighting, outlets, and small equipment loads, while the convertible main accommodates future load growth or configuration changes.
The unit carries UL 67 and UL 50 listings, with a NEMA 1 metallic enclosure. These certifications indicate compliance with enclosure integrity, electrical safety, and indoor-use standards, supporting code conformance and safer long-term operation.
The 125 A rating, aluminum bus for lighter weight, and BR 1-inch breaker compatibility reduce installation time and stocking diversity. The convertible main provides future expansion options without swapping panels, lowering lifecycle costs. A 10-year warranty adds asset protection, while UL listings help ensure ongoing compliance and predictable maintenance scheduling.
