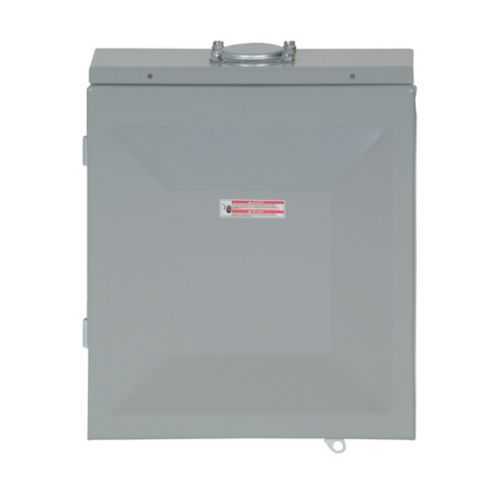

Eaton BR48L125RP Main Lug Loadcenter - 125 A 10 kAIC
Part Number: BR48L125RP
Quick Summary
The Eaton BR48L125RP main lug loadcenter safely distributes 120/240V power in commercial and light-industrial panels. Engineers often grapple with retrofit costs, space constraints, and mounting complexity; this unit offers a compact, surface-mounted solution with a convertible main to simplify future upgrades. UL 67 and UL 50 listings, along with a NEMA 1 metallic enclosure, provide regulatory confidence for indoor applications. With an aluminum bus, 10-year warranty, and compatibility with BR 1-inch breakers, it delivers reliability and predictable maintenance while supporting efficient panel expansion and supply-chain alignment for project teams. This combination of form, function, and support reinforces fast procurement and ongoing operational efficiency in automation projects.
Product Information
Extended Description
BR48L125RP Eaton: Eaton Eaton BR main lug loadcenter, No feed-thru lugs, Convertible main, 125 A , L2, Aluminum, Cover included, NEMA 1, Metallic, 25 kAIC, NEMA 1,42 Circuits, 42 Spaces,Four-wire, Three-phase, Type BR 1-inch breakers, 120/240V
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR48L125RP
UPC
786676001205
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
10.1 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
8
Number Of Poles
Eight-pole
Number of spaces
4
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#14-1/0 AWG Cu/Al
Box size
7R
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR48L125RP
Eaton type BR circuit breaker limited warranty June 2024
Feature: Convertible main design allows easy transition from main lug to main breaker configurations as needs evolve. Business Impact: Enables scalable upgrades without replacing the enclosure, reducing downtime and capital expenditure. Application: Ideal for retrofit projects and facilities planning where future expansion is anticipated. Feature: Aluminum bus reduces weight and improves corrosion resistance. Business Impact: Lighter assemblies simplify handling during installation and service, lowering labor costs. Application: Suitable for tight control panels and overhead installations in factories.Feature: NEMA 1 metallic enclosure with cover included provides indoor dust and incidental impact protection. Business Impact: Improves safety and reduces enclosure-related maintenance, supporting longer service intervals. Application: Indoor commercial and light-industrial environments.Feature: 125 A rating with 10 kAIC interrupt capability and 8 circuits in 4 spaces delivers compact yet capable distribution. Business Impact: Meets common automation load profiles while preserving space; supports reliable fault handling. Application: Small to mid-size panels in automation and packaging lines.Feature: Cu/Al wiring up to #14-1/0 AWG and Type BR 1-inch breakers compatibility ensures easy terminations and broad component compatibility. Business Impact: Simplifies sourcing and installation, minimizes inventory variety. Application: Standard control panels and feeder configurations in manufacturing facilities.Feature: 10-year warranty and UL/NEMA certifications provide long-term value and regulatory assurance. Business Impact: Reduces lifecycle risk and supports warranty-driven maintenance planning. Application: Industrial automation and commercial electrical infrastructures seeking dependable vendors.
Get a Quick Quote for a Eaton BR48L125RP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR48L125RP?
Enquire Now
FAQs
The BR48L125RP is designed for surface-mounted indoor installations distributing 120/240V in commercial and light-industrial panels. It accepts Type BR 1-inch breakers and Cu/Al wiring up to #14-1/0 AWG, with a NEMA 1 metallic enclosure and a cover included. It supports 8 circuits within 4 spaces and is suitable for 10-year operational regimes in automation environments.
The main lug design avoids a built-in main breaker, enabling straightforward retrofit to a main breaker if needed. The unit offers a convertible main option for future expansion, reducing downtime and capital expenditure. With Cu/Al wiring compatibility and supported BR 1-inch breakers, upgrades can be planned without enclosure changes, simplifying lifecycle maintenance.
Yes. The BR48L125RP carries UL 67 and UL 50 listings and uses a NEMA 1 metallic enclosure with a cover for indoor protection. These certifications support regulatory compliance in commercial and light-industrial applications, while the 10-year warranty adds long-term reliability to automation projects.
The unit offers a compact, surface-mounted BR load center that saves panel space and reduces installation complexity. Aluminum bus lowers weight and facilitates handling, while the convertible main supports future expansion. With a 10 kAIC-capable interrupt rating, Cu/Al wiring compatibility, and UL/NEMA compliance, it delivers reliable performance and predictable maintenance for automation equipment and control panels.
Eaton provides a 10-year warranty on the BR48L125RP, backed by official warranty documentation and specification sheets. Service support includes access to the product datasheet, warranty guide, and Eaton’s catalog resources, ensuring continuity of supply and assistance for maintenance, replacements, and upkeeps within industrial environments.
