Eaton BR612L125FDGP Main Lug Loadcenter - 10 kAIC

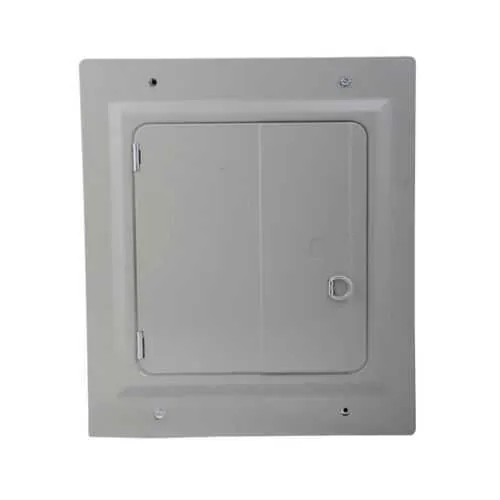

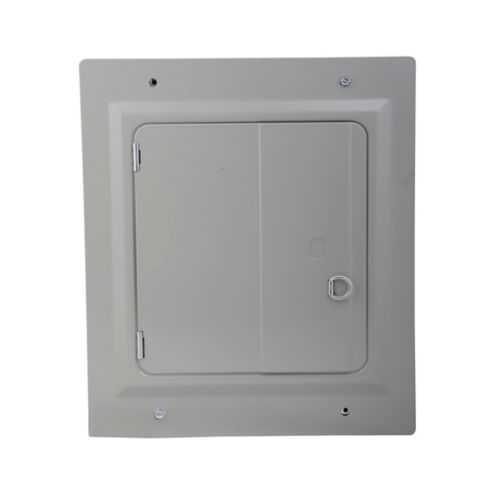

Part Number: BR612L125FDGP
Quick Summary
Eaton BR612L125FDGP main lug loadcenter provides compact, reliable power distribution for 120/240 V single-phase panels in commercial and light industrial spaces. This design helps engineers fit essential wiring into tighter footprints without sacrificing safety or accessibility. The enclosure adheres to key safety standards with UL 50 and UL 67 certifications, offering a NEMA 1 metallic housing, aluminum bus, and a 125 A rating for robust service. By integrating ground bars GBK5 and GBK520 and compatibility with BR 1-inch breakers, it supports scalable expansion and straightforward maintenance, delivering lower total installed cost and faster commissioning for projects with evolving circuit needs.
Product Information
Extended Description
BR612L125FDGP Eaton: Eaton Eaton BR main lug loadcenter,Ground bar, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Flush,NEMA 1,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125FDGP
UPC
786676002080
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
9.3 lb
Warranty
10 year
Certifications
UL 50 UL 67
Catalog Notes
Gbk5 and gbk520 ground bars
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR612L125FDGP
Eaton type BR circuit breaker limited warranty June 2024
Feature: 125 A main lug capacity enables safe distribution of moderate loads across multiple branch circuits. Impact: supports scalable panel designs while reducing the risk of overloading, improving overall system reliability. Application: ideal for compact commercial or light industrial panels where space is at a premium and future expansion is anticipated. Feature: Aluminum bus material enhances conductivity while keeping weight manageable for quick field installation. Impact: reduces voltage drop across feeders and simplifies handling during assembly. Application: suitable for low to medium current installations in 120/240 V systems with BR style breakers. Feature: NEMA 1 metallic enclosure with flush mounting provides a durable, indoor-rated enclosure. Impact: protects wiring from incidental contact and environmental contaminants, supporting safer maintenance access. Application: indoor electrical rooms and service panels with moderate exposure. Feature: Ground bars GBK5 and GBK520 included; compatible with #14-1 AWG Cu/Al wires and BR 1-inch breakers. Impact: streamlines wiring and ensures solid grounding paths, improving fault-clearing performance. Application: contemporary BR series panel installations requiring reliable grounding and flexible conductor options. Feature: 12 circuits in 6 spaces; 120/240 V single-phase configuration. Impact: balances capacity with available mounting space, enabling organized branch circuits and easier future reconfiguration. Application: residential and light commercial panels that demand orderly circuit management. Feature: 10 kAIC interrupt rating ensures fast, safe fault interruption. Impact: enhances workplace safety and reduces equipment damage during short-circuit events. Application: critical for protection in medium-load applications with potential fault currents. Feature: Includes cover and supports Type BR 1-inch breakers; compatibility simplifies retrofit or expansion projects. Impact: minimizes procurement complexity and accelerates project schedules. Application: new installations and panel upgrades seeking seamless BR breaker integration.
