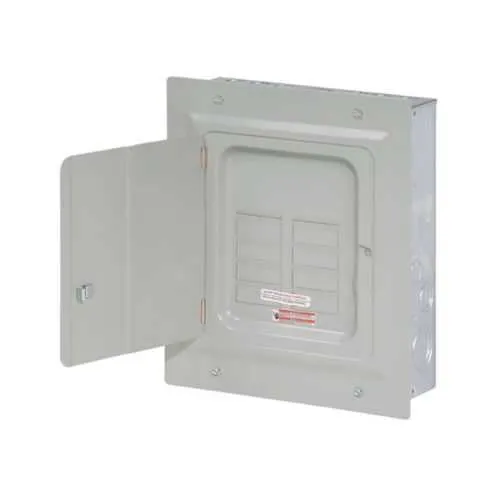

Eaton BR612L125FDP Main Lug Loadcenter - UL 67 UL 50
Part Number: BR612L125FDP
Quick Summary
The Eaton BR612L125FDP main lug loadcenter delivers compact power distribution for 125 A panels. Engineers often battle space constraints, maintenance downtime, and evolving code requirements in crowded panels. It complies with UL 67 and UL 50, backed by a NEMA 1 metallic enclosure for indoor use. Designed with an aluminum bus, flush mounting, and BR 1-inch breaker compatibility, it enables faster installation, easier upgrades, and reduced wiring complexity. In practice, this translates to shorter project cycles, lower lifecycle costs, and confident compliance across residential and light commercial applications. Together, these factors drive faster commissioning and fewer field retrofit issues during upgrades.
Product Information
Extended Description
BR612L125FDP Eaton: Eaton Eaton BR main lug loadcenter, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Flush,NEMA 1,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125FDP
UPC
786676001311
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
9.3 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR612L125FDP
Eaton type BR circuit breaker limited warranty June 2024
125 A main lug rating provides scalable service capacity for entry-level commercial panels. This reduces the need for early panel replacement when loads grow, improving uptime and deferral of capital expenditure. Ideal for service entrances in light commercial and multi-residential applications. Aluminum bus construction lowers weight and simplifies field handling. The lighter design reduces installation labor and handling risk in tight spaces, supporting faster commissioning in retrofit projects and new builds. With 12 circuits across 6 spaces, this BR612L125FDP offers room to expand. The flush mounting and 120/240V single-phase configuration streamline wiring diagrams and panel planning. Using BR 1-inch breakers ensures compatibility with Eaton's BR family for standardized maintenance. NEMA 1 metallic enclosure paired with 10 kAIC interrupt rating delivers reliable indoor protection. UL 67 and UL 50 certifications back compliance with safety and performance standards. The cover is included for straightforward field installation. Compact footprint and 9.3 lb weight simplify transport and site handling. Warranty is 10 years, reducing lifecycle risk and total cost of ownership. Overall, it's a practical choice for installers seeking efficiency and predictability.
Get a Quick Quote for a Eaton BR612L125FDP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR612L125FDP?
Enquire Now
FAQs
The BR612L125FDP is designed for BR series protection and uses Type BR 1-inch breakers. It accommodates 12 circuits across 6 spaces in a single-phase 120/240V configuration, and supports #14-1 AWG Cu/Al conductors. This standardization simplifies maintenance, training, and future expansion while ensuring safe, code-compliant operation with 10 kAIC interrupt rating.
This unit features a NEMA 1 metallic enclosure intended for indoor use. Its flush mounting design makes it ideal for tight service rooms and equipment closets in residential, small commercial, and light-industrial environments. The 125 A rating provides scalable capacity for growing loads without needing full panel replacement.
The BR612L125FDP carries UL 67 and UL 50 certifications, ensuring enclosure integrity and system protection for low-voltage distribution. It’s built to operate within a NEMA 1 indoor environment, and the unit carries a 10-year warranty, adding long-term confidence for maintenance and upgrades.
Key installation benefits include a flush-mounted, space-efficient footprint, aluminum bus for lighter weight, and BR breaker compatibility for a unified maintenance approach. The 120/240V single-phase configuration simplifies wiring schemes, while a cover is included for immediate commissioning. These factors reduce labor time, field wiring errors, and overall project risk.
Choosing this loadcenter delivers space savings in crowded panels, easier upgrades due to BR breaker compatibility, and lower lifecycle costs from reduced weight and a 10-year warranty. The 12 circuits across 6 spaces support modular expansion, enabling phased capacity growth without full panel replacements, which translates to faster project completion and lower total cost of ownership.
