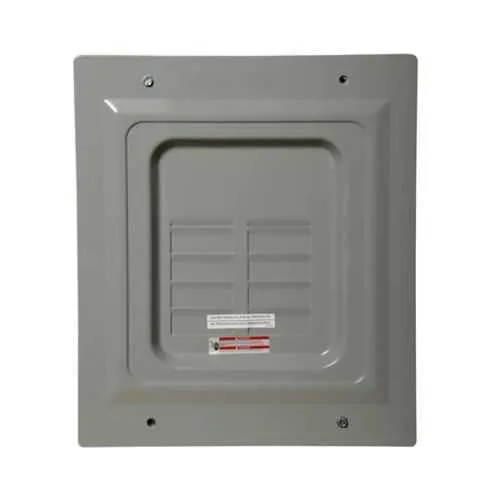

Eaton BR612L125FGP Main Lug Loadcenter - UL 67
Part Number: BR612L125FGP
Quick Summary
The Eaton BR612L125FGP main lug loadcenter is designed to streamline electrical distribution for commercial and residential installations. Installers often face cramped spaces, limited access, and compatibility gaps when upgrading panels, leading to delays and costly rewiring. UL 67 and UL 50 certifications confirm enclosure integrity and safety, while the 10-year warranty underpins long-term reliability. With an aluminum bus, NEMA 1 metallic enclosure, and flush mounting, this unit delivers compact, code-compliant performance that reduces maintenance and downtime. Its 12 circuits across 6 spaces support scalable distribution for 120/240V single-phase systems, making it a reliable choice for mid-size commercial panels and residential upgrades.
Product Information
Extended Description
BR612L125FGP Eaton: Eaton Eaton BR main lug loadcenter,Ground bar, 125 A,7,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Flush,NEMA 1,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125FGP
UPC
786676002042
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12.3 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR612L125FGP
Eaton type BR circuit breaker limited warranty June 2024
Feature: 125 A main lug design with 12 circuits and 6 spaces → Business Impact: Efficient load distribution and space efficiency reduce panel footprint and installation time → Application: Ideal for mid-size commercial or residential distribution setups. Feature: Aluminum bus material → Business Impact: Lighter weight and corrosion resistance simplify handling and long-term performance → Application: Indoor environments and service upgrades where ease of install matters. Feature: Ground bar included → Business Impact: Ensures solid grounding paths and faster code-compliant wiring → Application: Safety-critical panel upgrades and new builds. Feature: NEMA 1 metallic enclosure → Business Impact: Robust indoor protection against dust and minor impact, extending equipment life → Application: Offices, warehouses, and light-industrial spaces. Feature: Flush mounting → Business Impact: Reduced protrusion and neater wall installation → Application: Tight access panels and aesthetically focused installations. Feature: 10 kAIC interrupt rating → Business Impact: Higher fault current tolerance minimizes nuisance trips and improves reliability → Application: General distribution in spaces with moderate fault levels. Feature: 120/240V single-phase, #14-1 Cu/Al wiring → Business Impact: Aligns with standard residential wiring and simplifies code compliance → Application: Typical home and small business circuits. Feature: Cover not included → Business Impact: Flexible compatibility with existing enclosures or cover customization → Application: Retrofit projects and new installations where cover choice matters.
Get a Quick Quote for a Eaton BR612L125FGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR612L125FGP?
Enquire Now
FAQs
This BR612L125FGP accepts BR-type 1-inch breakers, enabling straightforward expansion of circuits up to 12 with a 125 A rating. It supports #14-1 AWG Cu/Al conductors and 120/240 V single-phase service, making it suitable for standard residential and light commercial applications.
Yes. The unit features a NEMA 1 metallic enclosure with an aluminum bus and UL 67/UL 50 certifications, designed for indoor environments. Flush mounting helps save wall space, while the 125 A rating supports common office and light industrial distribution needs.
The loadcenter provides 12 circuits across 6 spaces, with a ground bar included and cover not included by default. This setup supports scalable distribution while allowing for a tailored enclosure configuration.
Eaton backs this loadcenter with a 10-year warranty and certifies it under UL 67 and UL 50, ensuring enclosure integrity, electrical safety, and long-term reliability for code-compliant installations.
Yes. The flush mounting and compact dimensions simplify retrofits in tight spaces. With 120/240 V single-phase capability and compatible BR breakers, installers can align with existing wiring and minimize downtime during upgrades.
