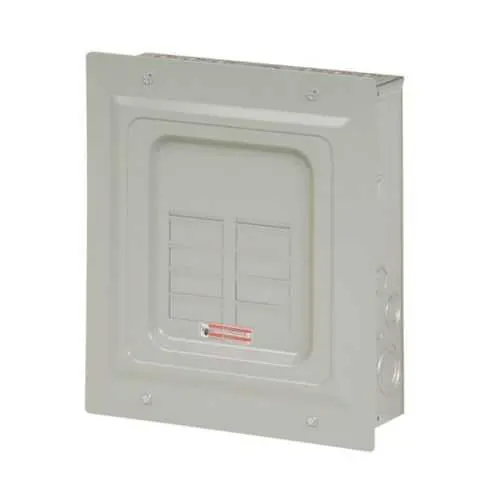

Eaton BR612L125FP Loadcenter - UL 50 UL 67 certified
Part Number: BR612L125FP
Quick Summary
Eaton BR612L125FP main lug loadcenter delivers compact, reliable power distribution for residential and light commercial panels. Engineers face space constraints and wiring complexity in tight enclosures, and this unit is designed to streamline installation without sacrificing protection. This product carries UL 50 and UL 67 certifications for enclosure integrity and safety, plus a NEMA 1 metallic enclosure and a 10 kAIC interrupt rating to handle fault conditions. With aluminum bus and flush mounting, it reduces cabinet depth while maintaining robust performance. The 125 A rating and 12‑circuit capacity support planned expansion, while BR-series compatibility simplifies procurement and stock management, delivering faster projects and lower total cost of ownership.
Product Information
Extended Description
BR612L125FP Eaton: Eaton Eaton BR main lug loadcenter ,Ground bar, includes BREQS125 hold-down screw,Main lug,125 A,C2,Aluminum,Cover included,NEMA 1,Metallic,10 kAIC,Combination,NEMA 1,24 Circuits,Twenty-four pole,24 Spaces,Three-wire,Single-phase
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125FP
UPC
786676002028
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
16 lb
Warranty
10 year
Certifications
UL 50 UL 67
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR612L125FP
Eaton type BR circuit breaker limited warranty June 2024
Feature: Aluminum bus construction provides lightweight, corrosion-resistant current paths. Business Impact: Easier handling during installation and improved long-term reliability in indoor environments. Application: Ideal for compact, serviceable panels in commercial applications where weight and corrosion resistance matter. Feature: 125 A amperage rating matched to 12 circuits across 6 spaces. Business Impact: Supports scalable service with ample headroom for growth while maintaining a compact footprint. Application: Suitable for small-to-medium residential and light commercial panels requiring reliable expandability. Feature: NEMA 1 metallic enclosure with 10 kAIC interrupt rating. Business Impact: Enhanced indoor durability and fault protection, reducing risk of enclosure damage and downtime. Application: Indoor dry-location installations in accordance with UL standards. Feature: Flush mounting and BR-series compatibility. Business Impact: Quick, clean installations with familiar breaker family, reducing wiring time and procurement complexity. Application: Retrofit or new-panel builds where conventional flush-mount loadcenters are preferred. Feature: Ground bar included; cover not included. Business Impact: Streamlines grounding and reduces additional part counts; minimal risk of misfit accessories on site. Application: Standard electrical assemblies where cover retention is managed separately, keeping options flexible for customer needs. Feature: 120/240V single-phase, #14-1 AWG Cu/Al wiring. Business Impact: Broad wiring compatibility supports common residential and light commercial circuits, lowering commissioning time. Application: Typical branch circuits and feeders in small panel boards.
Get a Quick Quote for a Eaton BR612L125FP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR612L125FP?
Enquire Now
FAQs
The BR612L125FP is a main lug loadcenter designed for 120/240V single-phase service. It is BR-series compatible for branch breakers, enabling straightforward integration into existing BR-based panels. It is flush-mounted for space efficiency and supports up to 12 circuits across 6 spaces, making it suitable for compact residential or light commercial installations.
Key specs include a 125 A amperage rating, 12 circuits, 6 spaces, 120/240V single-phase, aluminum bus, NEMA 1 metallic enclosure, and a 10 kAIC interrupt rating. The unit is designed for indoor use with ground bar included and cover considerations noted as part of installation planning.
Yes. The BR612L125FP uses a NEMA 1 metallic enclosure suitable for indoor, dry environments. It carries UL 50 and UL 67 certifications, supporting enclosure integrity and electrical safety. The 10-year warranty further enhances long-term reliability in compliant residential and light commercial applications.
This model features flush mounting and BR-series compatibility, which reduces wiring time and simplifies procurement. The aluminum bus design lowers weight and handling effort, while the 12-circuit capacity allows scalable expansion within a compact footprint, making it well-suited for retrofit or new builds in space-constrained panels.
The BR612L125FP delivers long-term value through a 10-year warranty and durable UL-certified protection, lowering maintenance costs and downtime. Standardized BR-breaker compatibility reduces spare parts inventory and simplifies future upgrades, contributing to faster project delivery and lower total ownership costs.
