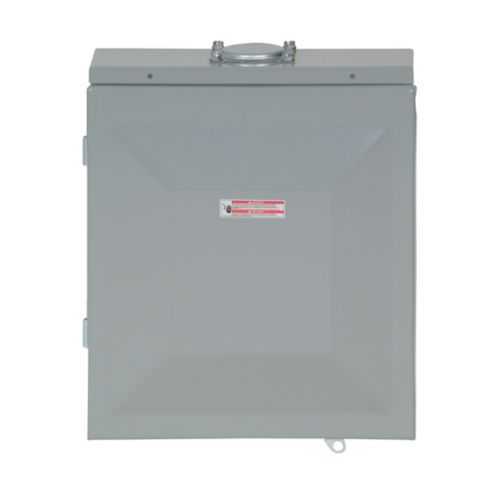

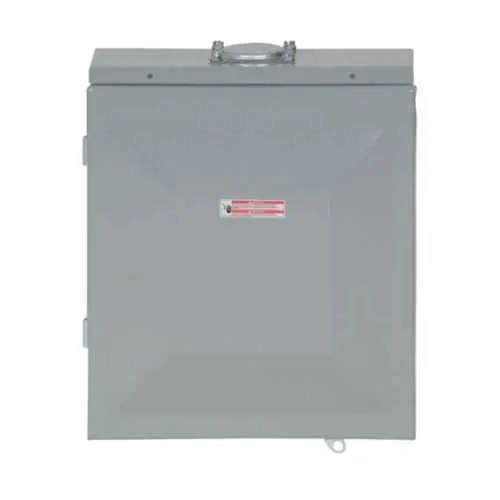

Eaton BR612L125RPG Main Lug Loadcenter - UL 50/UL 67
Part Number: BR612L125RPG
Quick Summary
The Eaton BR612L125RPG is a main lug loadcenter for compact, reliable distribution in electrical panels. Installers often struggle with secure terminations and ground-bar integration in tight spaces. UL 50 and UL 67 certifications support enclosure and component compliance, while a NEMA 3R rating enables outdoor use. Coupled with an aluminum bus and the included GBK5 ground bar, this unit streamlines wiring, reduces installation time, and lowers lifecycle costs. Its 125 A rating, 12 circuits, 6 spaces, and 120/240 V capability align with modern commercial electrical designs, offering a scalable foundation for future expansion. The surface-mount design simplifies retrofit projects and minimizes enclosure footprint, helping contractors deliver faster, compliant panel installations.
Product Information
Extended Description
BR612L125RPG Eaton: Eaton Eaton BR main lug loadcenter,Ground bar, 125 A,7R,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125RPG
UPC
782116830725
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12 lb
Warranty
10 year
Certifications
UL 50 UL 67
Catalog Notes
Gbk5 ground bar
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7R
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR612L125RPG
Eaton type BR circuit breaker limited warranty June 2024
Ground bar included and GBK5 harnesses a robust grounding path, reducing field labor and ensuring code-compliant terminations with core safety benefits and faster commissioning. → Business impact: lower installation time and fewer field reworks; Application: commercial electrical panels needing quick grounding integration and reliable fault protection. Aluminum bus material delivers weight savings and corrosion resistance, improving service life in harsh environments. → Business impact: easier handling, longer life in outdoor or damp locations; Application: outdoor electrical rooms and industrial enclosures. 125 A main lug with 12 circuits over 6 spaces provides compact, scalable distribution for small to medium loads. → Business impact: space-efficient panels that support future expansion; Application: light commercial lighting and receptacle circuits. NEMA 3R metallic enclosure with surface mounting and BR compatibility supports outdoor installations and straightforward retrofits. → Business impact: weather resistance and installation flexibility; Application: rooftop or exterior wall panels. 10 kAIC interrupt rating ensures higher fault tolerance and improved safety margins. → Business impact: enhanced protection against short circuits; Application: critical circuits in commercial facilities. Cover included for protection and neat field termination, minimizing dust ingress and improving aesthetics. — The combination of UL 50, UL 67 and BR-type breakers ensures reliable, compliant performance across standard electrical infrastructure projects.
Get a Quick Quote for a Eaton BR612L125RPG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR612L125RPG?
Enquire Now
FAQs
The BR612L125RPG is designed for surface mounting and accepts #14-1 AWG copper or aluminum conductors. It provides 12 circuits across 6 spaces and includes a GBK5 ground bar for straightforward grounding. This combination simplifies retrofits and new panel installations in tight spaces while maintaining adherence to BR-type breaker compatibility and standard enclosure dimensions.
This Eaton loadcenter carries UL 50 and UL 67 certifications, with a NEMA 3R enclosure rating for weather-resistance in outdoor or semi-exposed installations. The combination supports compliance for commercial and light industrial projects, while the 10-year warranty adds long-term reliability for mission-critical applications.
Yes. The unit features a NEMA 3R metallic enclosure designed for outdoor or damp environments. Its aluminum bus and grounded GBK5 bar withstand exposure to weather and humidity, making it suitable for exterior panels, mechanical rooms with limited climate control, and other demanding settings.
Key specs include a 125 A amperage rating, 12 circuits, 120/240 V operation, and a 10 kAIC interrupt rating. The combination provides robust short-circuit withstand, safer termination of conductors, and better protection for connected loads in commercial facilities, aligning with standard electrical design practices.
With a built-in ground bar, BR-type breaker compatibility, and the promise of a 10-year warranty, maintenance needs are reduced while setup time is shortened. The aluminum bus reduces weight during installation and service, contributing to lower labor costs and longer service life in recurring-use environments.
