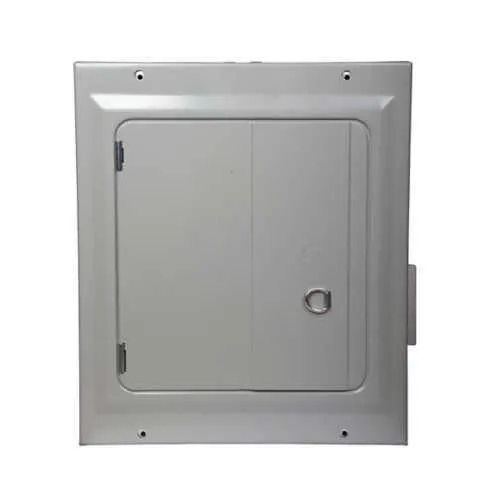

Eaton BR612L125SDGP BR main lug loadcenter - UL 67/UL 50
Part Number: BR612L125SDGP
Quick Summary
BR612L125SDGP is a main lug loadcenter for 125 A service panels in commercial and light industrial environments. Upgrading panels often introduces grounding, space constraints, and code-compliance challenges that slow projects. Certified to UL 67 and UL 50, with a NEMA 1 metallic enclosure and a 10 kAIC interrupt rating, this unit delivers rugged, code-ready performance. The surface-mount BR design with an aluminum bus simplifies installation and reduces long-term maintenance, helping contractors meet timelines while delivering dependable power distribution for customers. This combination supports faster deployments, fewer retrofit complications, and a clear path to regulatory compliance in diverse facilities.
Product Information
Extended Description
BR612L125SDGP Eaton: Eaton Eaton BR main lug loadcenter,Dual grounds, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Surface,NEMA 1,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125SDGP
UPC
786676002097
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12 lb
Warranty
10 year
Certifications
UL 67 UL 50
Catalog Notes
Gbk5 and gbk520 ground bars
Special features
Dual grounds, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR612L125SDGP
Eaton type BR circuit breaker limited warranty June 2024
Feature: 125 A main-lug capacity with 12 circuits and 6 spaces. Business Impact: This footprint provides scalable feeder capacity without oversizing the panel or sacrificing enclosure integrity, helping project teams meet deadlines and stay within budget. Application: Ideal for service entrances in offices, retail spaces, and light industrial environments where reliable distribution is critical. Feature: Aluminum bus material. Business Impact: Lighter weight, excellent conductivity, and corrosion resistance reduce handling effort during installation and future maintenance. Application: Well-suited for long runs and spaces where weight savings boost install speed. Feature: NEMA 1 metallic enclosure. Business Impact: Indoor protection from dust and incidental contact enhances safety and uptime in busy facilities. Application: Office floors, warehouses, and workshops where environmental exposure is minimal but reliability is essential. Feature: Dual grounding with GBK grounding bars. Business Impact: Improves grounding reliability and simplifies compliance with grounding requirements across codes. Application: Critical facilities, data centers, and manufacturing lines where grounding integrity matters. Feature: 10 kAIC interrupt rating. Business Impact: Higher fault current handling minimizes nuisance trips and protects downstream equipment. Application: Loads with motors and peak startup currents in small to medium facilities. Feature: Surface mounting and cover included. Business Impact: Easy installation with clear service access and immediate enclosure protection reduces field rework. Application: Retrofit upgrades and new builds in tight spaces where fast deployment matters. Feature: Wiring compatibility (#14-1 AWG Cu/Al, 3-wire, 120/240 V, BR 1-inch breakers). Business Impact: Flexible wiring options support rapid configurations and future expansion. Application: Commercial, light industrial distribution, and retrofit panels.
Get a Quick Quote for a Eaton BR612L125SDGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR612L125SDGP?
Enquire Now
FAQs
This unit is surface-mounted with an 11 in wide by 13 in high footprint and a 3.56 in depth. It supports 12 circuits across 6 spaces and accepts #14-1 AWG Cu/Al with a 120/240 V single-phase supply. Includes GBK5/gbk520 ground bars and a cover, with dual grounding to simplify installation and improve fault management during retrofit projects.
The loadcenter provides a 125 A amperage rating, 120/240 V single-phase operation, aluminum bus, and a 10 kAIC interrupt rating. It features 6 spaces for 12 circuits, supports BR type 1-inch breakers, and uses #14-1 AWG Cu/Al wiring. The NEMA 1 enclosure strengthens indoor protection, while the cover is included for immediate assembly readiness.
Yes. It is designed for service entrances in offices, retail spaces, and light industrial environments, offering 125 A capacity and 12-circuit capability. UL 67 and UL 50 certifications, along with a NEMA 1 enclosure, align with codes for indoor installations. The 10-year warranty and robust grounding features support reliable, long-term operation.
The BR612L125SDGP carries UL 67 and UL 50 recognitions, and a NEMA 1 enclosure standard. Its 10 kAIC interrupt rating ensures strong fault protection for typical commercial and light industrial loads. Dual grounding further supports compliance with grounding and bonding requirements, reducing retrofit risk and simplifying inspection outcomes.
The unit carries a 10-year warranty and uses a durable aluminum bus with dual grounding, which lowers maintenance needs and potential downtime. Its lightweight design and straightforward surface-mount installation reduce field labor costs during upgrades. Over time, fewer reworks and reliable protection translate into lower total cost of ownership and faster project ROI.
