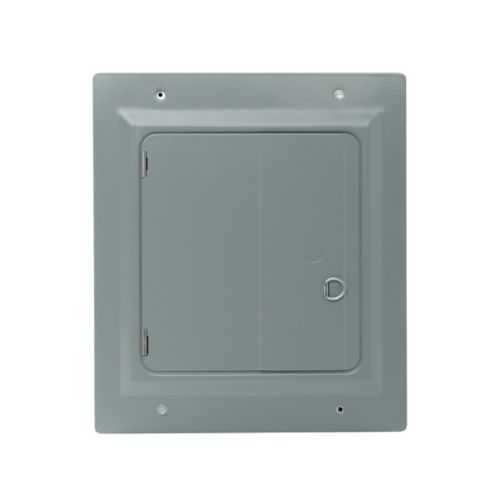

Eaton BR816L125FDGP Main Lug Loadcenter - 10 kAIC
Part Number: BR816L125FDGP
Quick Summary
BR816L125FDGP is a main lug loadcenter designed for 125 A residential and light commercial distribution. It addresses the common challenge of wiring compact panels cleanly while meeting grounding, fault current, and code requirements. UL 67 and UL 50 certifications, plus a NEMA 1 metallic enclosure and a 10 kAIC interrupt rating, support safe indoor operation. Coupled with aluminum bus, dual Grounds, and GBK5/gbk520 grounding bars, it enables faster, code-compliant installations and lower lifecycle costs. Its rugged, flush-mount design simplifies panel layout and improves room aesthetics, delivering long-term reliability for growing facilities. Ideal for electricians, OEMs, and facilities managers seeking scalable, compliant power distribution.
Product Information
Extended Description
BR816L125FDGP Eaton: Eaton Eaton BR main lug loadcenter,Dual grounds, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Flush,NEMA 1,16 Circuits,Twenty-four pole,8 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR816L125FDGP
UPC
786676002172
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12.8 lb
Warranty
10 year
Certifications
UL 67 UL 50
Catalog Notes
Gbk5 and gbk520 ground bars
Special features
Dual grounds, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
16
Number of spaces
8
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR816L125FDGP
Eaton type BR circuit breaker limited warranty June 2024
125 A main lug, 16 circuits, 8 spaces, and a 120/240 V rating with an aluminum bus deliver robust capacity in a compact footprint. This layout speeds panel builds and makes field wiring neater, reducing installation time and human error. The combination of aluminum conductor paths and solid enclosure construction supports reliable performance in demanding environments while maintaining compatibility with BR 1-inch breakers. Flush mounting and a NEMA 1 metallic enclosure protect against indoor contaminants and keep a clean, low-profile installation footprint. Dual grounding with GBK5 and gbk520 grounding bars improves grounding integrity for mixed Cu/Al runs, simplifying inspections and commissioning. Compatibility with BR 1-inch breakers and Cu/Al conductors #14-1 AWG enables flexible wiring strategies for many loads, with 16 circuits across 8 spaces for organized distribution. The 10 kAIC interrupt rating, along with UL 67/UL 50 certifications, provides strong protection and compliance, and the 10-year warranty reinforces long-term value. This design supports scalable, trouble-free service for growing facilities and evolving electrical rooms.
