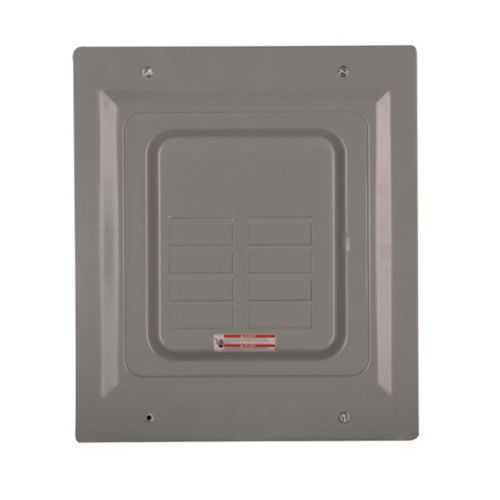

Eaton BR816L125FGP Main Lug Loadcenter - 10 kAIC
Part Number: BR816L125FGP
Quick Summary
The Eaton BR816L125FGP main lug loadcenter provides reliable 125 A distribution for 120/240 V panels. Installers often struggle with wiring congestion, limited space, and the need to source compatible covers, which can slow projects. This unit carries UL 67 and UL 50 approvals and uses a NEMA 1 metallic enclosure to ensure safe, code-compliant operation indoors. With flush mounting, an aluminum bus, and BR 1-inch breaker compatibility, it reduces installation time and procurement complexity while supporting scalable circuit expansion for growing facilities.
Product Information
Extended Description
BR816L125FGP Eaton: Eaton Eaton BR main lug loadcenter,Ground bar, 125 A,7,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Flush,NEMA 1,16 Circuits,Twenty-four pole,8 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR816L125FGP
UPC
786676002134
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12.8 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Flush
Number of circuits
16
Number of spaces
8
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR816L125FGP
Eaton type BR circuit breaker limited warranty June 2024
125 A capacity with 16 circuits and 8 spaces provides a compact yet capable distribution point for light commercial projects. This layout supports organized wiring and straightforward expansion, enabling faster commissioning and easier panel labeling. The main lug configuration keeps the design simple when a full main breaker is not required. Aluminum bus tubing delivers a lighter weight, corrosion-resistant current path while maintaining strength for long service life. The design is compatible with BR 1-inch breakers, simplifying stocking and replacement, which reduces field substitutions and minimizes downtime during maintenance or upgrades. The unit includes a ground bar for immediate grounding continuity and a ground path that meets typical installation practices. The enclosure is NEMA 1 and metallic, offering indoor protection against dust and minor impacts. A 10 kAIC interrupt rating provides a comfortable safety margin for small-to-medium feeder circuits. Cover not included intentionally to allow the installer to use an existing enclosure or to complete coverage after field changes. Flush mounting saves wall space and supports neat, accessible wiring. Wire sizing supports #14-1 AWG Cu/Al, making it suitable for standard residential and light commercial conductors. Overall, this BR loadcenter minimizes waste and supports reliable service without sacrificing performance.
Get a Quick Quote for a Eaton BR816L125FGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR816L125FGP?
Enquire Now
FAQs
The BR816L125FGP is designed for BR type 1-inch breakers. It provides 16 circuit positions and supports BR family breakers, ensuring straightforward stocking and maintenance. For full coverage, verify the cover option and mounting fit for your enclosure to maintain code compliance.
This loadcenter carries UL 67 and UL 50 approvals and is housed in a NEMA 1 metallic enclosure for indoor use. These certifications confirm safe operation with typical residential and light commercial circuits, while the NEMA 1 rating provides dust protection in non-harsh environments.
No, the cover is not included. Plan to source the appropriate cover separately or reuse an existing enclosure. This approach can reduce upfront cost if a compatible cover is already in inventory and helps tailor the enclosure to indoor installation requirements.
The unit supports #14-1 AWG copper or aluminum conductors at 120/240 V single-phase. It is designed for 3 wires in the main distribution path, with an aluminum bus for efficient current transfer and a ground bar for proper grounding during installation.
With its 125 A capacity, 16 circuits, flush mounting, and compatibility with BR 1-inch breakers, the BR816L125FGP streamlines wiring and procurement. Fewer components and straightforward installation can reduce labor time and field errors, delivering cost savings on simple residential and light commercial distributions.
