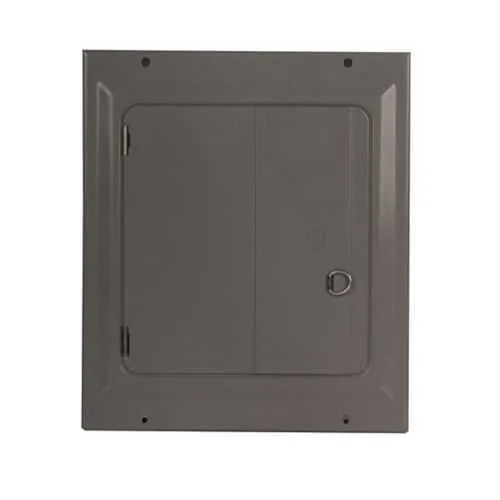

Eaton BR816L125SDGP Main Lug Loadcenter - 10 kAIC
Part Number: BR816L125SDGP
Quick Summary
The Eaton BR816L125SDGP is a main lug loadcenter designed for compact, surface-mounted electrical distribution in light to mid-size panels. Operators and engineers struggle with space constraints and wiring complexity in crowded electrical panels. This unit carries UL 67 and UL 50 listings, and features a metallic NEMA 1 enclosure for indoor service with robust protection. For contractors and OEMs, it combines space efficiency with fast surface-mount installation, reducing panel footprint and total installed cost. With a 125 A rating, 16 circuits, and dual grounding, it supports critical loads while meeting safety and code requirements. The included cover and compatible BR breakers simplify commissioning and ongoing maintenance.
Product Information
Extended Description
BR816L125SDGP Eaton: Eaton Eaton BR main lug loadcenter,Dual grounds, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Surface,NEMA 1,16 Circuits,Twenty-four pole,8 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR816L125SDGP
UPC
786676002189
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
11.6 lb
Warranty
10 year
Certifications
UL 67 UL 50
Catalog Notes
GBK5 and GBK520 ground bars
Special features
Dual grounds, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
16
Number of spaces
8
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR816L125SDGP
Eaton type BR circuit breaker limited warranty June 2024
125 amp main lug capacity with 16 circuits in an 8-space enclosure enables compact, scalable distribution for light commercial panels. The configuration preserves branch circuit flexibility while maintaining robust conductor routing for neat terminations. Designed for surface mounting, installation is faster and more predictable in crowded equipment rooms. Aluminum bus material delivers lighter weight and corrosion resistance, improving handling during field terminations and service life in damp environments. The result is easier installation, fewer delamination risks, and lower labor costs during upgrades. NEMA 1 metallic enclosure provides indoor protection against dust and incidental contact, making this unit a reliable choice for offices, workshops, and light industrial settings. Surface mounting simplifies retrofits and reduces the need for deep cabinets or specialized mounting hardware. Dual grounds with GBK5 and GBK520 ground bars enhance grounding reliability, reduce impedance in fault conditions, and improve EMI/ground noise management in control panels. With a 10 kAIC interrupt rating and BR breaker compatibility, the unit meets short-circuit duty requirements while maintaining standardization with existing Eaton BR components. This compatibility also simplifies stocking and procurement, reducing downtime during maintenance. Solid warranty and service support—10-year warranty, UL listings, and Eaton datasheets—provide long-term confidence for mission-critical installations.
Get a Quick Quote for a Eaton BR816L125SDGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR816L125SDGP?
Enquire Now
FAQs
BR816L125SDGP is designed to accept BR 1-inch breakers within its 16-circuit configuration. The main lug design supports standard Eaton BR components, simplifying procurement and stocking. For installations, verify that the panel is configured for BR-type devices and follow Eaton's mounting guidelines to ensure secure terminations and proper clearance for conductors.
This unit is ideal for light commercial service panels, indoor equipment rooms, and control panels where space is at a premium. With 125 A capacity, 16 circuits, and a surface-mount configuration, it supports essential branch circuits while enabling straightforward retrofits in existing enclosures without significant cabinet rewiring.
The BR816L125SDGP carries UL 67 and UL 50 listings, ensuring compliance with enclosure and electrical safety standards. It has a 10 kAIC interrupt rating, is rated for 120/240 V single-phase operation, and uses a NEMA 1 metallic enclosure for indoor usage. These certifications support reliability in regulated environments such as commercial buildings and manufacturing spaces.
Dual grounding with GBK5 and GBK520 ground bars improves fault path integrity and reduces impedance, which enhances protection against electrical faults. This design also helps minimize EMI and ground noise in control panels, supporting more stable operation of sensitive equipment and charts for regulatory compliance in safety-conscious installations.
With a 10-year warranty and Eaton’s documented reliability, maintenance costs are predictable and occurrences of component replacement are minimized. The unit’s compatibility with existing BR components reduces spare parts inventory. Overall, owning BR816L125SDGP can lower lifecycle costs by easing assembly time, improving reliability, and simplifying future expansions.
