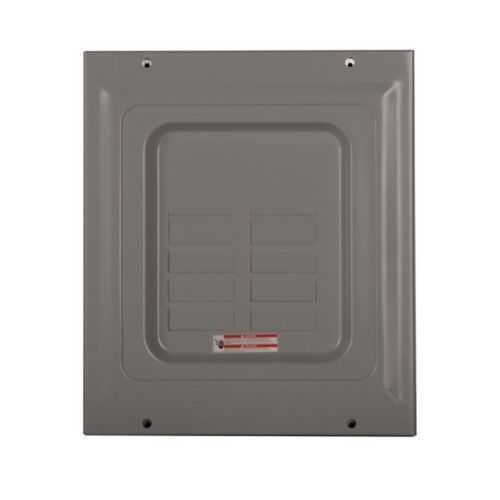

Eaton BR816L125SGP Main Lug Loadcenter - UL 67
Part Number: BR816L125SGP
Quick Summary
BR816L125SGP Main Lug Loadcenter is a compact 125 A distribution solution designed for surface-mounted panels in industrial and commercial environments. Engineers often wrestle with limited mounting space and wiring access, and this unit helps maximize panel density while keeping circuits neatly organized. It carries UL 67 and UL 50 listings, backed by a 10-year warranty, within a rugged NEMA 1 metallic enclosure rated for 10 kAIC. The aluminum bus and BR 1-inch breaker compatibility support reliable performance with reduced conduit runs. For projects demanding durable, code‑compliant power distribution, this loadcenter offers predictable maintenance needs and a favorable total cost of ownership.
Product Information
Extended Description
BR816L125SGP Eaton: Eaton Eaton BR main lug loadcenter,Ground bar, 125 A,7,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Surface,NEMA 1,16 Circuits,Twenty-four pole,8 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR816L125SGP
UPC
786676002141
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Ground bar, current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover not included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
16
Number of spaces
8
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BR816L125SGP
Eaton type BR circuit breaker limited warranty June 2024
125 A main lug design with 16 circuits across 8 spaces provides a compact power distribution solution for small to mid-size panels, reducing the need for multiple enclosures and streamlining wiring in service entrances and light industrial applications. The aluminum bus keeps the unit lighter than copper designs, improving handling during field installs and reducing labor fatigue when routing conductors; it also supports #14-1 AWG Cu/Al conductors for flexible terminations in control cabinets. Ground bar included and cover not included means quicker chassis prep and BOM accuracy, while BR-type 1-inch breakers compatibility enables straightforward retrofits and future expansion. A NEMA 1 metallic enclosure with a 10 kAIC interrupt rating delivers indoor reliability and safety, complemented by UL 67 and UL 50 certifications for compliant installations. The rugged build supports machine rooms and panel upgrades with a long 10-year warranty for reduced lifecycle costs. Wiring and space planning favor modular extension, and the compact footprint accelerates commissioning in constrained spaces.
Get a Quick Quote for a Eaton BR816L125SGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BR816L125SGP?
Enquire Now
FAQs
The BR816L125SGP is a surface-mounted main lug loadcenter with a NEMA 1 metallic enclosure. It ships without a cover, but includes a ground bar for quick grounding. Plan for front access and standard NEC clearance, and leverage BR 1-inch breaker compatibility to simplify retrofits or future expansion in indoors panels and control cabinets.
Yes. This loadcenter is specified for 120/240 V, single‑phase service with a 125 A rating and supports up to 16 circuits across 8 spaces, making it ideal for mid‑sized industrial panels and light commercial applications.
It carries UL 67 and UL 50 listings, ensuring compliance for electrical enclosures and distribution equipment. Eaton backs the BR816L125SGP with a 10‑year warranty, providing long‑term reliability and peace of mind for maintenance and upgrades.
The loadcenter accepts #14-1 AWG Cu/Al conductors and provides 16 circuits across 8 spaces, supporting a compact yet scalable distribution arrangement for small to medium panels and machine control cabinets.
Ground bar inclusion, aluminum bus for lighter weight, and BR breaker compatibility streamline installation and future expansion. The 10‑year warranty, UL/UL certifications, and robust NEMA 1 enclosure help reduce maintenance downtime and lifecycle costs while ensuring dependable performance in routine industrial environments.
