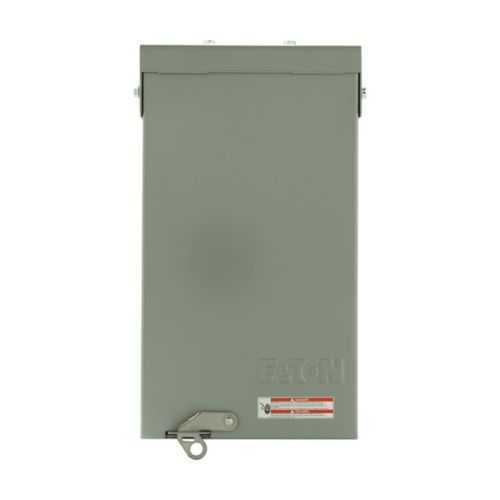

Eaton BRC48L125RP BR main lug loadcenter - NEMA 3R
Part Number: BRC48L125RP
Quick Summary
The Eaton BRC48L125RP BR main lug loadcenter is a 125 A distribution panel for 120/240 V service in commercial settings. It helps you retrofit or expand power distribution without a full panel replacement, reducing downtime and BOM complexity. UL 50 and UL 67 certifications underpin safety and reliability, while the NEMA 3R enclosure supports outdoor and harsh-environment installations. This configuration complements BR 1-inch breakers for scalable protection, with a compact 6R box and four spaces. By aligning with BR-compatible components, you gain flexible spare-part strategy and a clear upgrade path, delivering durable performance and lowering long-term operating costs for facilities teams.
Product Information
Extended Description
BRC48L125RP Eaton: Eaton Eaton BR main lug loadcenter, 125 A,6R,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,8 Circuits,Eight-pole,4 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRC48L125RP
UPC
786689212575
Product Length/Depth
4.5 in
Product Height
11.75 in
Product Width
6.5 in
Product Weight
6.35 lb
Certifications
UL 50 UL 67
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Number of circuits
8
Number Of Poles
Eight-pole
Number of spaces
4
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#14-1/0 AWG Cu/Al
Box size
6R
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Feature: Main lug configuration delivers a straightforward, space-efficient panel that reduces wiring complexity and integration steps. Benefit: Faster installation, lower labor costs, and simplified spare-part inventories. Application: Ideal for small commercial spaces where a full set of branch breakers isn’t required. Feature: Aluminum bus material provides a strong, corrosion-resistant conductor path with lighter weight. Benefit: Easier handling on site and reduced structural load, improving installation safety. Application: Outdoor or semi-exposed installations where environmental resistance matters. Feature: NEMA 3R metallic enclosure offers reliable weather protection. Benefit: Enhanced safety and uptime for exterior equipment rooms and fenced areas. Application: Roofed or partially protected outdoor environments. Feature: 10 kAIC interrupt rating enhances fault withstand capability. Benefit: Improved protection for feeders and downstream devices, lowering risk of arc-fault events. Application: Industrial facilities with high fault-current scenarios. Feature: Compatibility with Type BR 1-inch breakers simplifies modernization and maintenance. Benefit: Keeps spare parts aligned with existing inventory, reducing downtime during upgrades. Application: Retrofit projects or new installations leveraging BR breakers. Feature: Wire size support up to #14-1/0 AWG Cu/Al accommodates common feeders. Benefit: Flexible wiring options and standardized termination practices. Application: Residential/commercial feeders feeding branch circuits or equipment loads.
Get a Quick Quote for a Eaton BRC48L125RP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRC48L125RP?
Enquire Now
FAQs
The BRC48L125RP is designed as a BR main lug loadcenter that accepts Type BR 1-inch circuit breakers. With four spaces and eight poles, it supports common 1-inch BR breakers, enabling straightforward expansion or retrofit. It is packaged for easy field wiring with #14-1/0 AWG Cu/Al, and the 6R enclosure size aligns with standard mounting footprints, reducing cabinet modifications and downtime.
Key specs include a 125 A amperage rating, 120/240 V single-phase operation, 8 circuits, and an eight-pole configuration. The enclosure material is metallic with an aluminum bus, and the unit has a 10 kAIC interrupt rating. Wiring accepts #14-1/0 AWG Cu/Al, and the box size is 6R, making it suitable for compact installations with BR-compatible protection.
Yes. The unit features a NEMA 3R enclosure with metallic construction, designed to withstand outdoor exposure when installed in protected or semi-protected areas. The 3R rating provides rain and corrosion resistance suitable for exterior equipment spaces, so facility managers can deploy it in exterior electrical rooms or protected outdoor locations without compromising safety.
This loadcenter carries UL 50 and UL 67 certifications, confirming compliance for enclosures and panelboard components. The NEMA 3R rating further demonstrates suitability for outdoor or semi-outdoor use. These certifications help ensure safer installation, consistent maintenance practices, and easier regulatory approvals during audits or facility upgrades.
By using BR-compatible breakers and a main-lug configuration, the BRC48L125RP reduces spare-part inventories and accelerates upgrades, translating to lower downtime during maintenance. Its durable aluminum bus, 10 kAIC rating, and weather-rated enclosure contribute to longer service life and fewer field repairs, delivering predictable lifecycle costs and improved total cost of ownership for facilities teams.
