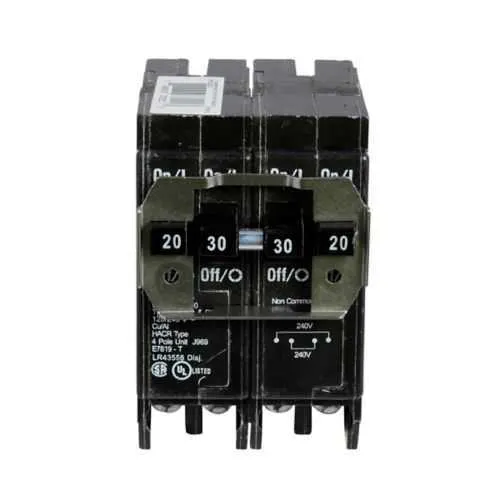

Eaton BRDC230250 Type BR 1-Inch quad breaker - UL 489
Part Number: BRDC230250
Quick Summary
The Eaton BRDC230250 is a thermal magnetic circuit breaker for four-pole protection in BR loadcenters. It helps prevent nuisance trips and unplanned downtime by providing a common-trip solution across multiple circuits. UL 489 certification and Federal Specifications W-C375 compliance underscore reliability in industrial panels, while the Type BR 1-Inch form factor supports compact, scalable protection. Designed for OEMs and panel builders, this unit delivers predictable protection with easy sourcing and straightforward installation, ensuring consistent protection in control panels and machine enclosures.
Product Information
Extended Description
BRDC230250 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch quad circuit breaker,(2) 30 A, (2) 50 A,10 kAIC,Four-pole,120/240V,BRD,Common breaker trip,#14-4 AWG Cu/Al,BRD,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRDC230250
UPC
786676372343
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.8 lb
Compliances
Federal Specifications Classification W-C375
Certifications
UL 489
Catalog Notes
Non-CTL
Used with
Type BR Loadcenters
Type
Type BR 1-Inch quad circuit breaker
Amperage Rating
(2) 50A, (2) 30A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Interrupt rating
10 kAIC
Main circuit breaker
BR
Wire size
#14-4 AWG Cu/Al
Number of poles
Four-pole
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRDC230250
Eaton type BR circuit breaker limited warranty June 2024
Feature → Business Impact → Application: Four-pole, common trip design coordinates protection across all poles, reducing the risk of partial failures and improving panel reliability in automated systems. Application: BR Loadcenters and machine control panels where coordinated switching is critical for safe startup and shutdown. Feature → Business Impact → Application: Amperage rating of (2) 50 A and (2) 30 A enables mixed circuit protection in a single device, optimizing space and simplifying inventory in industrial panels. Application: Mixed-load panels and motor control centers demanding versatile protection without added components. Feature → Business Impact → Application: 120/240 V AC operation provides flexibility for dual-voltage circuits, simplifying design references and stock requirements. Application: Residential, commercial, and light industrial automation panels. Feature → Business Impact → Application: 10 kAIC interrupt rating delivers fast fault clearance, limiting conductor damage and downstream equipment exposure. Application: Short-circuit events in high-demand control circuits. Feature → Business Impact → Application: UL 489 certification and W-C375 compliance support regulatory alignment and audit readiness. Application: Compliance-heavy manufacturing environments. Feature → Business Impact → Application: Compatibility with Type BR Loadcenters and 1-Inch quad architectures reduces wiring complexity and accelerates installation. Application: Panel builders seeking scalable protection for evolving lineups.
