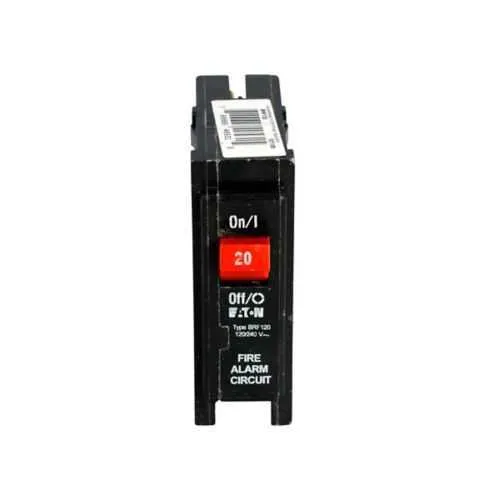

Eaton BRF120 BRF Plug-On Breaker - 10 kAIC Fire Alarm
Part Number: BRF120
Quick Summary
The Eaton BRF120 is a thermal-magnetic circuit breaker that protects electrical panels in commercial and light industrial installations. When retrofitting or expanding panels, space constraints and compatibility can slow projects or increase downtime. This unit meets HACR rating and NFPA 72 fire alarm requirements, with certification details available from the manufacturer. With a 20 A rating and a 120/240 V scheme, it delivers reliable protection for critical control circuits while supporting scalable BR-series installations. Using the BRF120 helps maintain uninterrupted operation, reduces nuisance trips, and aligns with standard low-voltage protective strategies for life-safety systems.
Product Information
Extended Description
BRF120 Eaton: Eaton BR thermal magnetic circuit breaker,Type BRF plug-on fire alarm circuit breaker,20 A,10 kAIC,Single-pole,120/240V,BRF,BRF
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRF120
UPC
786685405315
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.3 lb
Warranty
1 year
Compliances
HACR Rated NFPA 72
Certifications
Contact Manufacturer
Type
Type BRF plug-on fire alarm circuit breaker
Amperage Rating
20 A
Voltage rating
120/240 V
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
10 kAIC
Main circuit breaker
BR
Number of poles
Single-pole
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRF120
Eaton type BR circuit breaker limited warranty June 2024
Feature: Plug-on mounting enables quick, tool-free installation and hassle-free retrofits. Business impact: reduces field labor time and minimizes panel downtime, improving project timelines. Application: ideal for upgrading existing panels in light commercial buildings. Feature: 20 A amperage rating at 120/240 V provides targeted protection for control circuits and lighting loads. Business impact: helps prevent nuisance trips while delivering dependable protection for essential systems. Application: residential, small offices, and retail spaces with BR-series compatibility. Feature: 10 kAIC interrupt rating increases fault tolerance in higher fault-current environments. Business impact: enhances system resilience and safety margins in modernized electrical rooms. Application: panels with moderate to high short-circuit potential. Feature: Type BRF plug-on fire alarm circuit breaker specialization. Business impact: ensures fire alarm and life-safety circuits are independently protected, reducing risk of cascade faults. Application: life-safety installations and critical alarm circuits. Feature: HACR rated NFPA 72 compliance supports HVAC and related loads without nuisance tripping. Business impact: simplifies compliance auditing and reduces maintenance overhead. Application: commercial HVAC and associated control circuits. Feature: Compact dimensions and light weight support easier enclosure fitment. Business impact: enables denser panel layouts and lower installation costs. Application: compact power distribution enclosures and retrofit installations. Feature: One-year warranty provides peace of mind and predictable maintenance budgeting. Business impact: lowers total cost of ownership over the short term. Application: procurement for facilities teams and electrical contractors.
Get a Quick Quote for a Eaton BRF120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRF120?
Enquire Now
FAQs
The BRF120 uses a plug-on mounting method designed for BR-series panels. It is a single-pole device rated for 120/240 V with 20 A capacity and a 10 kAIC interrupt rating. Ensure enclosure space is sufficient (approximately 3 in x 3 in x 2 in working footprint), and verify compatibility with existing BR main breakers for safe, code-compliant retrofits.
A 10 kAIC interrupt rating indicates the breaker can safely interrupt fault currents up to 10,000 amperes. This improves protection in installations with higher fault-current potential, reducing the risk of equipment damage and enhancing overall panel resilience in moderate to high fault scenarios.
Yes. The BRF120 is a Type BRF plug-on fire alarm circuit breaker designed to protect dedicated fire alarm circuits while meeting NFPA 72 life-safety requirements.its HACR rating further supports HVAC-related control circuits, helping to ensure reliable operation of critical alarms.
The unit lists HACR rated compliance and NFPA 72 as applicable standards. Certifications beyond these are available from the manufacturer, and detailed documentation can be requested to satisfy specific regulatory or end-user requirements during procurement.
The BRF120 carries a 1-year warranty. For maintenance, rely on standard inspection for torque, contact wear, and proper plug-on seating in the panel. This short-term coverage supports procurement planning and reduces lifecycle risk for fire-alarm and control circuits.
