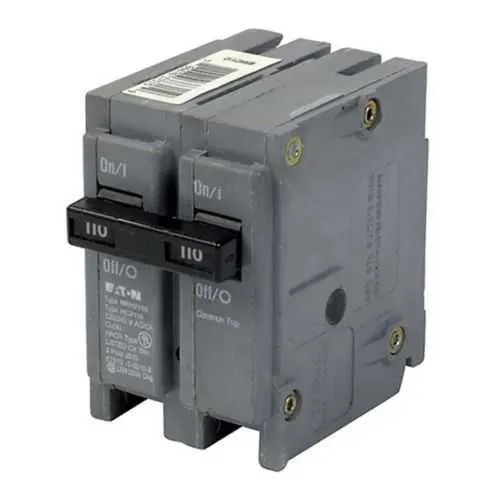

Eaton BRH2110BP50 BR thermal magnetic circuit breaker - UL 490
Part Number: BRH2110BP50
Quick Summary
BR thermal magnetic circuit breaker provides dependable overcurrent protection for 120/240 V distribution in load centers and control panels. Engineers often struggle with coordinating trips across multi-pole circuits and managing inventory for critical protection devices. UL 490 certification and Federal Specifications W-C376 compliance verify safety and performance, while HACR and shunt-trip options address varied control strategies. The Eaton BRH2110BP50 is designed for bulk-pack procurement, enabling efficient stocking and faster panel assembly. For businesses deploying Type BR Loadcenters in commercial or light industrial environments, this solution combines reliable protection with convenient ordering and installation.
Product Information
Extended Description
BRH2110BP50 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker bulk pack,Bulk pack,110 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH2110BP50
UPC
786685271460
Product Length/Depth
6.5 in
Product Height
0.5 in
Product Width
5 in
Product Weight
0.05 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker bulk pack
Special features
Bulk pack
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Two-pole
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH2110BP50
Eaton type BR circuit breaker limited warranty June 2024
Type BR 1-Inch plug-on circuit breaker bulk pack improves procurement and stocking efficiency. It integrates directly with BR Loadcenters, streamlining panel assembly and reducing field labor time. This translates to lower project lead times and fewer installation hiccups in commercial and light-industrial builds. The unit’s two-pole design supports 120/240 V service, providing coordinated protection across multi-wire branch circuits and feeders. With a 22 kAIC interrupt rating, it delivers robust fault handling, reducing the risk of arc flash and equipment damage in high-current events. The common-trip configuration ensures simultaneous tripping of all poles, simplifying shutdown procedures and enhancing system safety during faults. Wire compatibility with #4-1/0 AWG Cu/Al and the 1-Inch plug-on form factor support flexible panel layouts and quick replacements. Bulk-pack availability further improves procurement efficiency, while UL 490 certification and Federal Specifications W-C376 compliance help meet regulatory demand with confidence. Catalog notes indicate HACR, shunt-trip, and high-magnetic option variants at selected amperages, enabling tailored protection strategies for HVAC, motors, and lighting applications.
Get a Quick Quote for a Eaton BRH2110BP50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRH2110BP50?
Enquire Now
FAQs
The BRH2110BP50 is designed for Type BR Loadcenters and uses a BR 1-Inch plug-on mounting. It supports two-pole configurations for 120/240 V systems and accepts #4-1/0 AWG Cu/Al conductors, making it suitable for mid to large feeders and residential to light-commercial panel distributions.
This model carries UL 490 certification and complies with Federal Specifications W-C376. Optional variants offer HACR, shunt trip, and high-magnetic settings at select amperages, aligning with common regulatory and control requirements in commercial and light-industrial installations.
Common trip ensures all poles trip together on fault, preventing unbalanced loads and reducing arc exposure. This simplifies protection coordination across multi-wire circuits within BR Loadcenters and improves overall safety during fault conditions or maintenance shutdowns.
Yes. It features a BR 1-Inch plug-on design and two-pole configuration that plugs directly into BR Loadcenters. Compatible wiring options include #4-1/0 AWG Cu/Al, supporting flexible panel layouts and rapid replacement during panel upgrades or repairs.
Bulk-pack availability reduces procurement lead times and simplifies inventory management for maintenance and construction projects. Coupled with UL 490 and W-C376 compliance, bulk packs minimize compliance risk, shorten panel builds, and offer predictable lifecycle costs when managing stock for protection devices.
