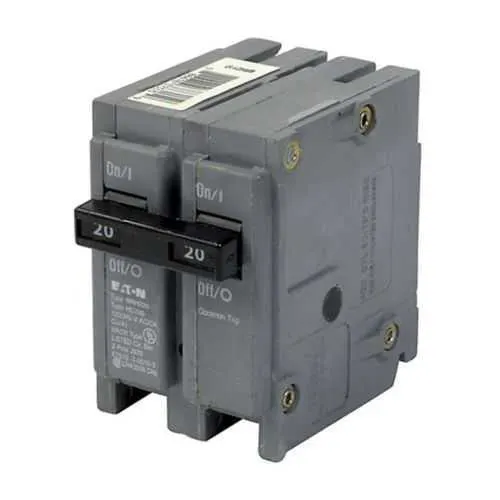

Eaton BRH220 BR Thermal Magnetic Circuit Breaker - UL 490
Part Number: BRH220
Quick Summary
Eaton BRH220 thermal magnetic circuit breaker provides reliable overcurrent protection for Type BR load centers in residential and light commercial panels. Engineers often face compatibility and installation delays, but the BRH220’s plug-on mounting and common trip design streamline wiring and reduce panel downtime. This device carries UL 490 certification, Federal Specifications W-C376 compliance, and HACR-ready options to meet code and energy-efficiency needs, ensuring safer, compliant installations. With a 20 A rating at 120/240 V and a 22 kAIC interrupt rating, it supports standard branch circuits while delivering predictable performance across BR load centers. For procurement and maintenance teams, it offers straightforward stocking, faster replacements, and improved system reliability.
Product Information
Extended Description
BRH220 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,20 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH220
UPC
786676373500
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
20 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH220
Eaton type BR circuit breaker limited warranty June 2024
Plug-on, Type BR, 1-Inch footprint, two-pole construction enables fast, error-free installation while maintaining solid fault protection for BR load centers; this reduces field labor and downtime in service upgrades and new builds. The 20 A, 120/240 V rating with a 22 kAIC interrupt capacity protects wiring and equipment from short circuits, improving safety and reducing the risk of arc damage in light commercial panels. Common breaker trip ensures simultaneous disconnection of all poles on a multi-wire branch circuit, lowering the chance of risky shared faults and making maintenance simpler for installers. Wire size compatibility of #14-4 AWG Cu/Al broadens conductor options, supporting quick field wiring without adapters or re-terminations. Catalog notes offer switching duty, HACR suitability, and shunt-trip/high-m magnetic variants, enabling precise customization for HVAC, lighting and motor control applications. UL 490 certification and Federal Specifications W-C376 compliance address mainstream regulatory requirements, giving peace of mind to inspectors and procurement teams during audits.
