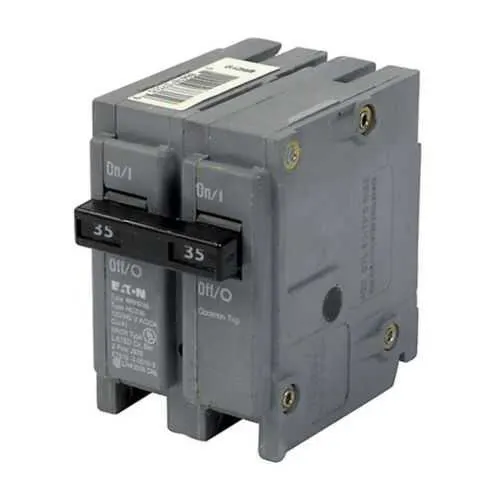

Eaton BRH235 BR Thermal Magnetic Circuit Breaker - 22 kAIC
Part Number: BRH235
Quick Summary
The Eaton BRH235 is a BR thermal magnetic circuit breaker designed for protection in Type BR load centers and 1-Inch plug-on panels. Engineers often face nuisance trips or undersized interrupt ratings when upgrading legacy panels, costing downtime and maintenance. It carries UL 490 certification and complies with Federal Specifications W-C376, with HACR-ready variants and common-trip protection for coordinated safety. This combination, along with its 35 A rating and 120/240 V capability, delivers reliable circuit protection for BR load centers and industrial panels, enabling code-compliant installations and durable operation across residential and light commercial environments.
Product Information
Extended Description
BRH235 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,35 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH235
UPC
782114372159
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
35 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH235
Eaton type BR circuit breaker limited warranty June 2024
Plug-on mounting in BR load centers simplifies installation and reduces wiring errors, accelerating commissioning and minimizing field labor costs. The 35 A amperage rating paired with a 22 kAIC interrupt rating provides robust short-circuit protection, limiting damage and downtime in fault events. With two-pole operation at 120/240 V and a common trip, it delivers coordinated protection for multi-wire branch circuits, enhancing safety and simplifying code compliance in panel assemblies. The BRH235 is compatible with Type BR Loadcenters and accepts Cu/Al wire up to #14-4 AWG, offering wiring flexibility and quicker terminations in diverse installations. UL 490 certification and Federal Specifications W-C376 support regulatory compliance, while the BR family’s HACR-ready options and switching/shunt-trip/high-magnetic settings address HVAC and industrial control needs. The limited lifetime residential warranty and 1-year commercial warranty provide long-term ROI and lower lifecycle costs for facility owners and contractors.
